8045E00.59A007

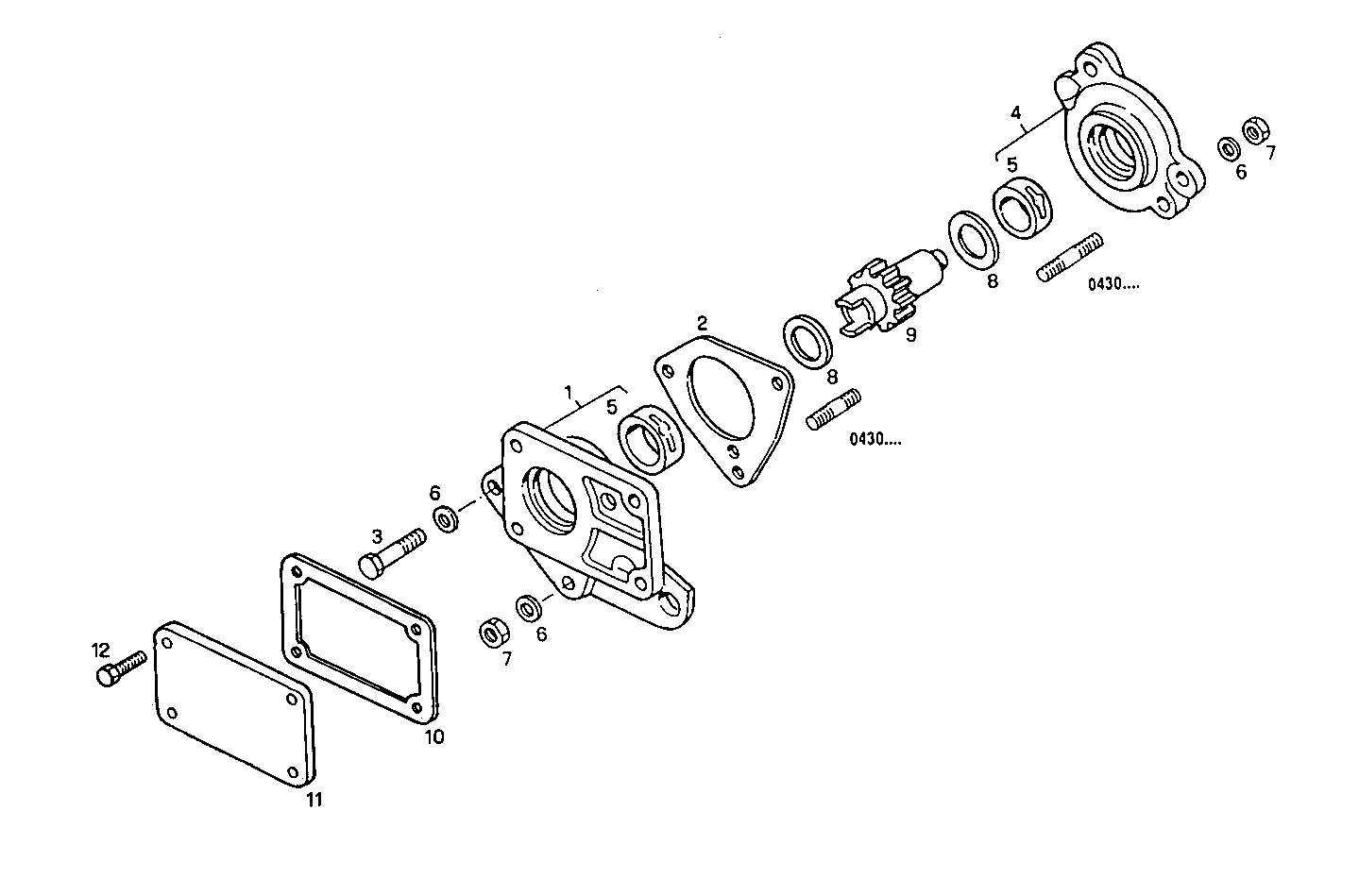

3500.033 POWER TAKE OFF
| Item | Part number | Description |
|---|---|---|
| 1 | 4788084 | SUPPORT ASSY REAR |
| 2 | 4851004 | FLAT ENGINE GASKET |
| 3 | 16044521 | HEXAGON BOLT M8X65 MM |
| 4 | 4771242 | SUPPORT ASSY |
| 5 | 4788087 | BUSH VANDERVELL |
| 6 | 17089471 | SPRING WASHER Ø16X8 MM SP=1,4 MM |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
| 8 | 4667452 | SUPPORT RING |
| 9 | 4769590 | SHAFT |
| 10 | 4850986 | FLAT ENGINE GASKET |
| 11 | 564530 | COVER |
| 12 | 10902321 | HEXAGON BOLT M6X18 MM (8.8) |
