8045M08.00

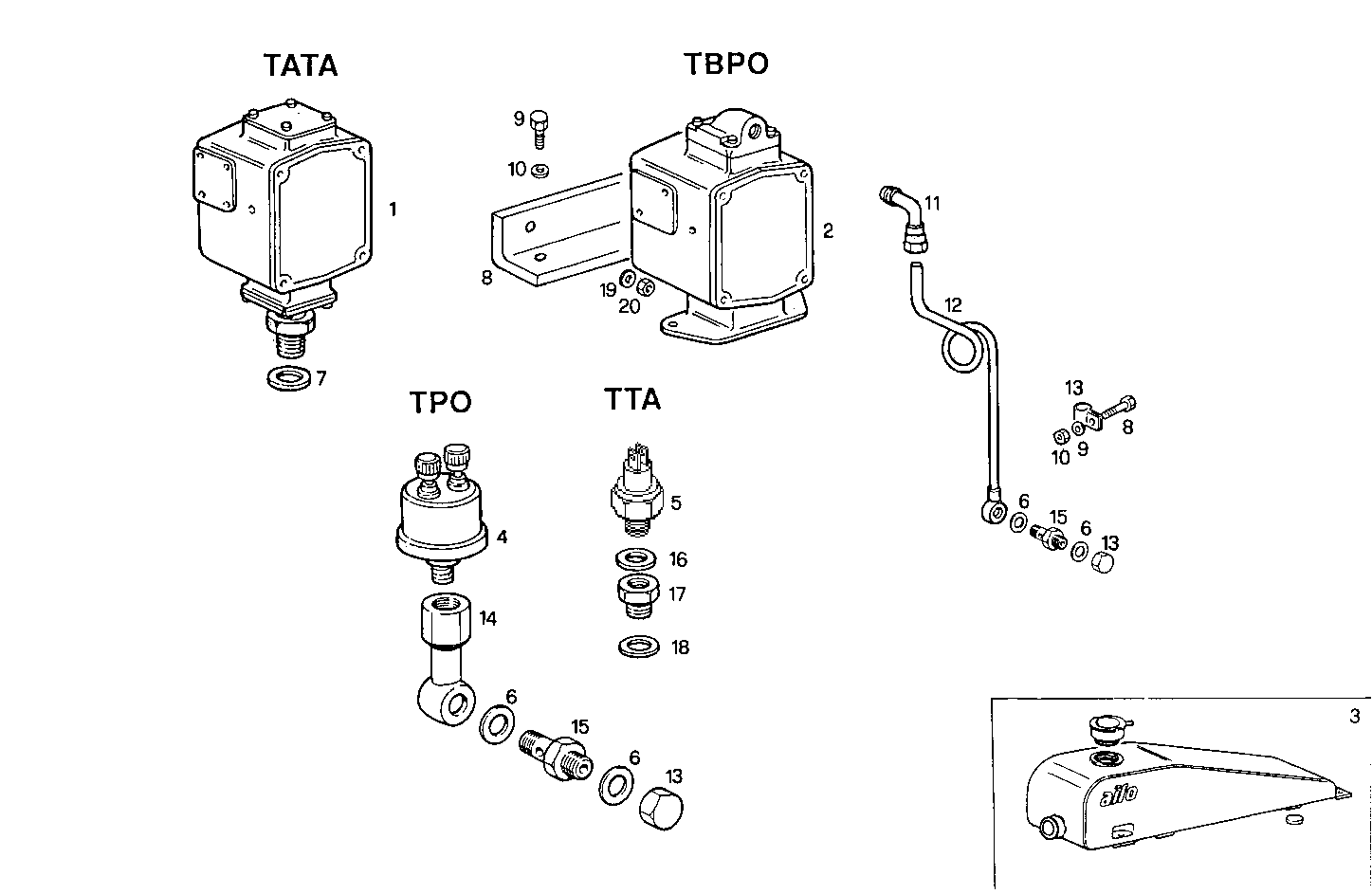

A16030007 SENDER UNITS FOR GENERATOR UNIT - with R.I.N.A. test
| Item | Part number | Description |
|---|---|---|
| 1 | 8110742 | TRANSMITTER |
| 2 | 8110741 | TRANSMITTER TBPO |
| 3 | 8005016 | WATER EXPANSION TANK |
| 4 | 8100417 | TRANSMITTER TPO |
| 5 | 8100418 | TRANSMITTER TTA |
| 6 | 4858606 | GASKET Ø10X14X1 MM |
| 7 | 11271460 | GASKET Ø21X26X1,5 MM |
| 8 | 8108313 | RETAINER |
| 9 | 16602224 | HEXAGON BOLT M5X20 MM |
| 10 | 12624101 | WASHER Ø5X22X2MM |
| 11 | 8111261 | PIPE SOCKET Ø1/8'' MM |
| 12 | 8011342 | OIL LINE |
| 13 | 11902117 | PLUG M10X1,25 |
| 14 | 4927546 | PIPE SOCKET |
| 15 | 4607792 | SCREW CONNECTOR |
| 16 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 17 | 4928330 | PIPE SOCKET M16X1,5/M14X1,5 |
| 18 | 4928609 | GASKET Ø22X27X1,5 MM |
| 19 | 17088474 | WASHER Ø6X12 MM |
| 20 | 17037721 | NUT M5X0,8 |
