8045M08.00

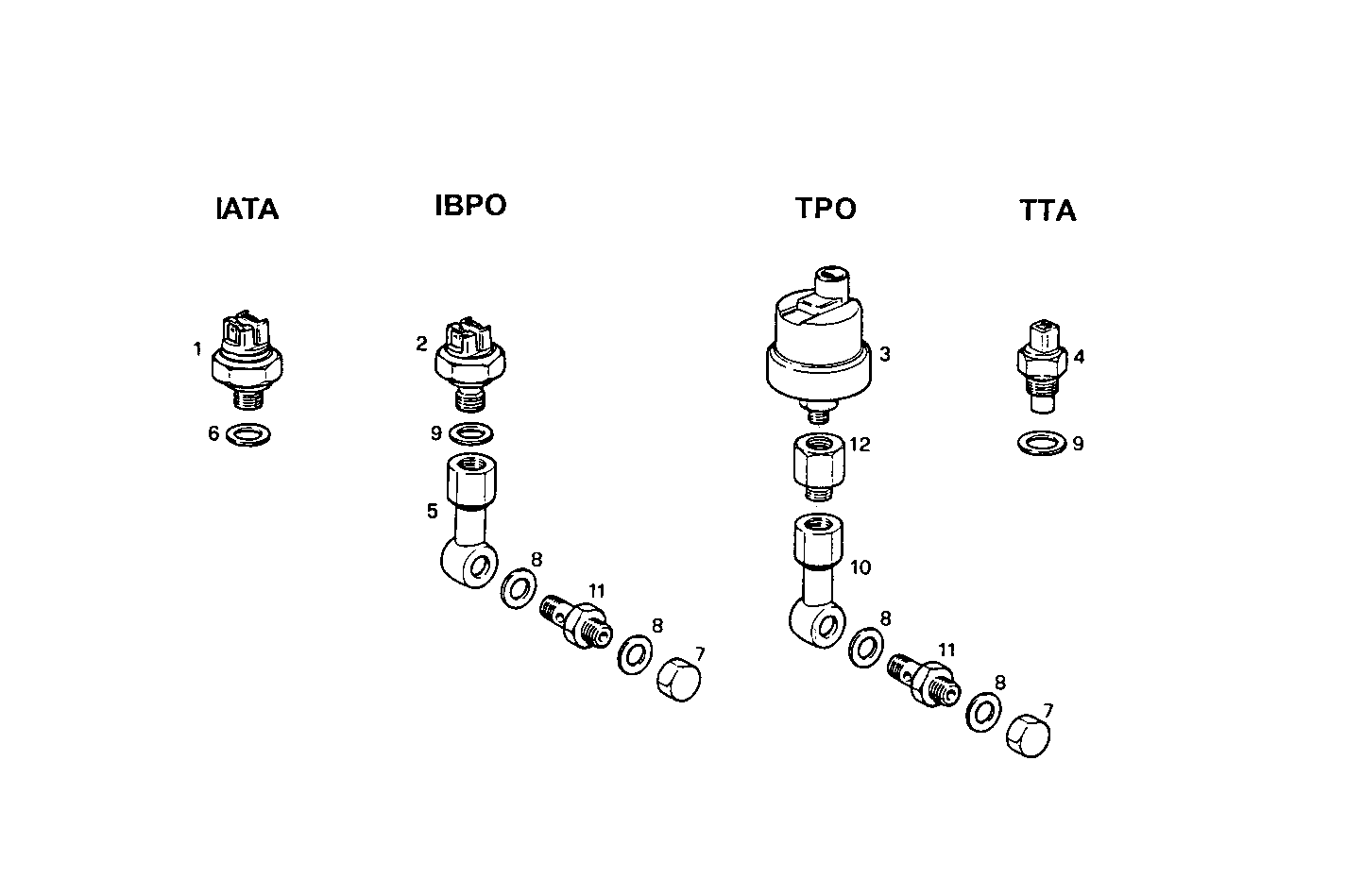

A38550051 SENDER UNITS FOR INSTRUMENTS - 12/24V - VEGLIA

Iveco/FPT SENDER UNITS FOR INSTRUMENTS

Item Part number Description
1 8019334 TRANSMITTER IATA
2 8020872 TRANSMITTER IBPO
3 8008031 TRANSMITTER TPO
4 8008030 TRANSMITTER TTA
5 4928011 PIPE SOCKET
6 4858608 SEAL GASKET dia.14x19,5x1,5
7 11902117 PLUG M10X1,25
8 4858607 WASHER Ø12X17 MM SP=1,5 MM
9 4858609 WASHER Ø16X22 MM SP=1,5 MM
10 4927546 PIPE SOCKET
11 4607792 SCREW CONNECTOR
12 8111331 PIPE SOCKET
