8045M08.00

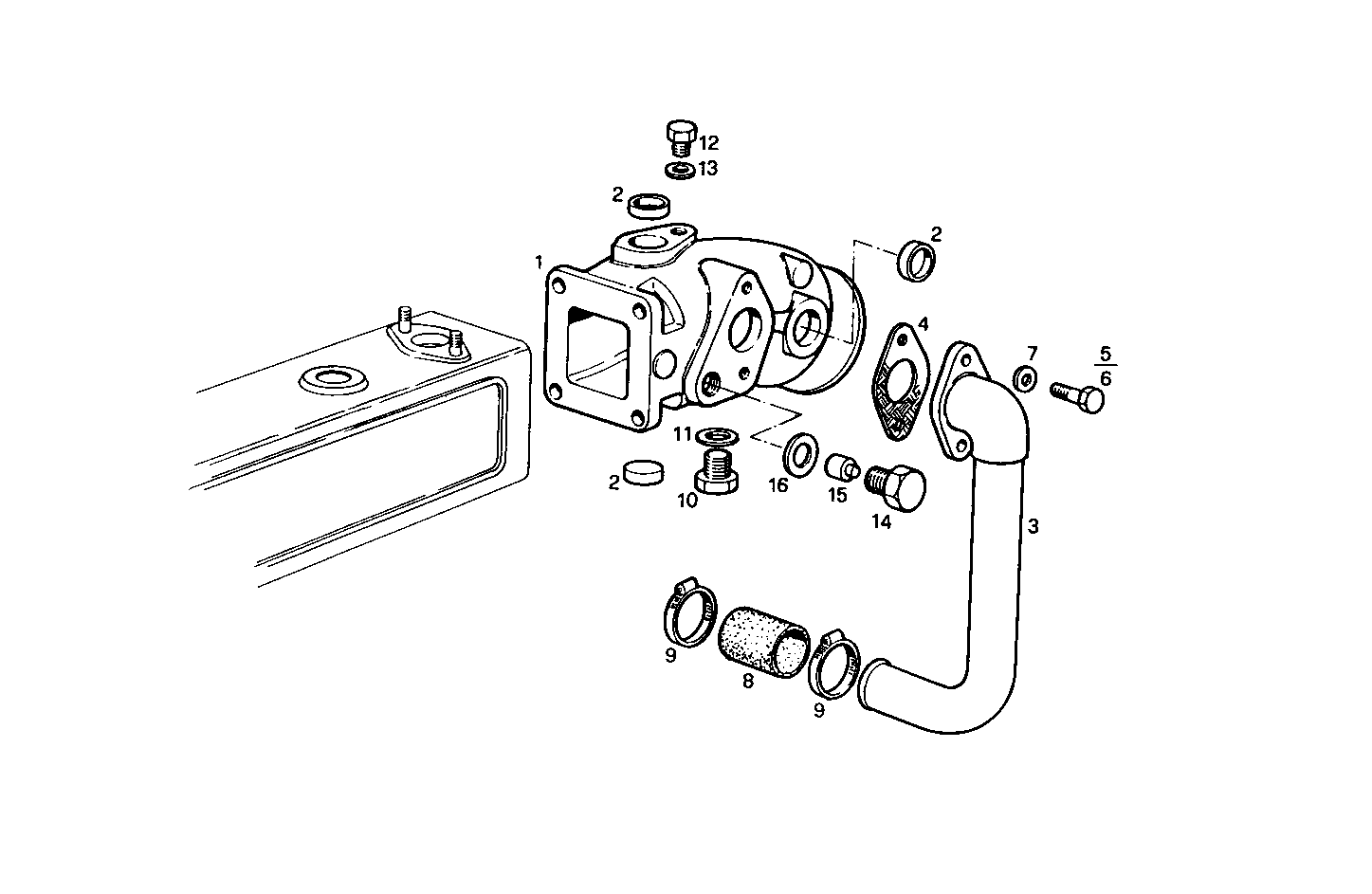

A40050016 GAS-WATER MIXER WITH STERN OUTLET - without marine gear
| Item | Part number | Description |
|---|---|---|
| 1 | 8021705 | EXHAUST COOL. ELBOW |
| 2 | 16990870 | LOCK PLUG Ø28 MM |
| 3 | 8021706 | WATER PIPE |
| 4 | 8008755 | FLAT ENGINE GASKET |
| 5 | 16606224 | HEXAGON BOLT M8X55 MM |
| 6 | 16605524 | HEXAGON BOLT M8X20 MM |
| 7 | 17094914 | WASHER 8x16 |
| 8 | 17742887 | RUBBER SLEEVE |
| 9 | 17764793 | CLIP Ø32/50 MM |
| 10 | 8008747 | PLUG |
| 11 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
| 12 | 16992240 | THREADED PLUG M12X1,5 |
| 13 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 14 | 4917793 | PLUG M18 |
| 15 | 8105277 | SACRIFICAL ANODE Ø14 MM |
| 16 | 98474311 | SEAL GASKET Ø18X26 MM |
