8045M08.00

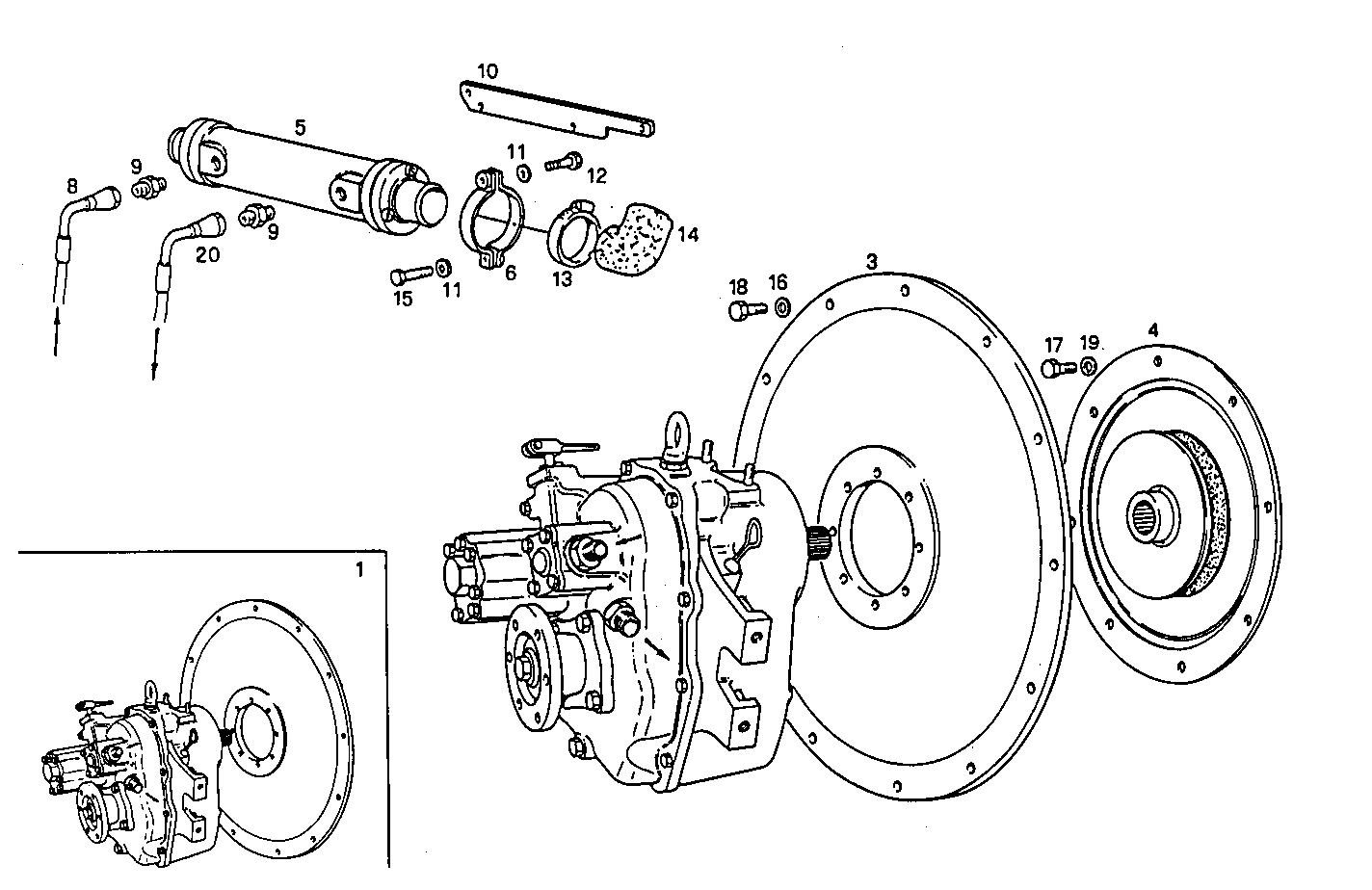

A51650021 MARINE GEAR TECHNODRIVE TM 93 - ratio 2.77:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8015902 | MARINE GEAR 2,77:1 |
| 3 | 8012407 | COUPLING BELL |
| 4 | 8005350 | FLEXPLATE |
| 5 | 4919188 | MARINE GEAR OIL HEAT EXCH ASSY |
| 6 | 8100667 | CLIP |
| 7 | 4868427 | RUBBER PAD |
| 8 | 4935779 | HOSE |
| 9 | 4935465 | PIPE SOCKET |
| 10 | 4919720 | RETAINER |
| 11 | 17090174 | SPRING WASHER Ø10X20 MM |
| 12 | 17038121 | HEXAGON NUT M10 |
| 13 | 17764793 | CLIP Ø32/50 MM |
| 14 | 17742887 | RUBBER SLEEVE |
| 15 | 16607624 | SCREW M10X25 |
| 16 | 11198379 | SPRING WASHER Ø10X20 MM SP=2,6 |
| 17 | 15970521 | HEXAGON BOLT M10X20 MM |
| 18 | 11306921 | SCREW M10X1,25X30 |
| 19 | 10571879 | WASHER |
| 20 | 8105620 | HOSE |
