8045M08.20

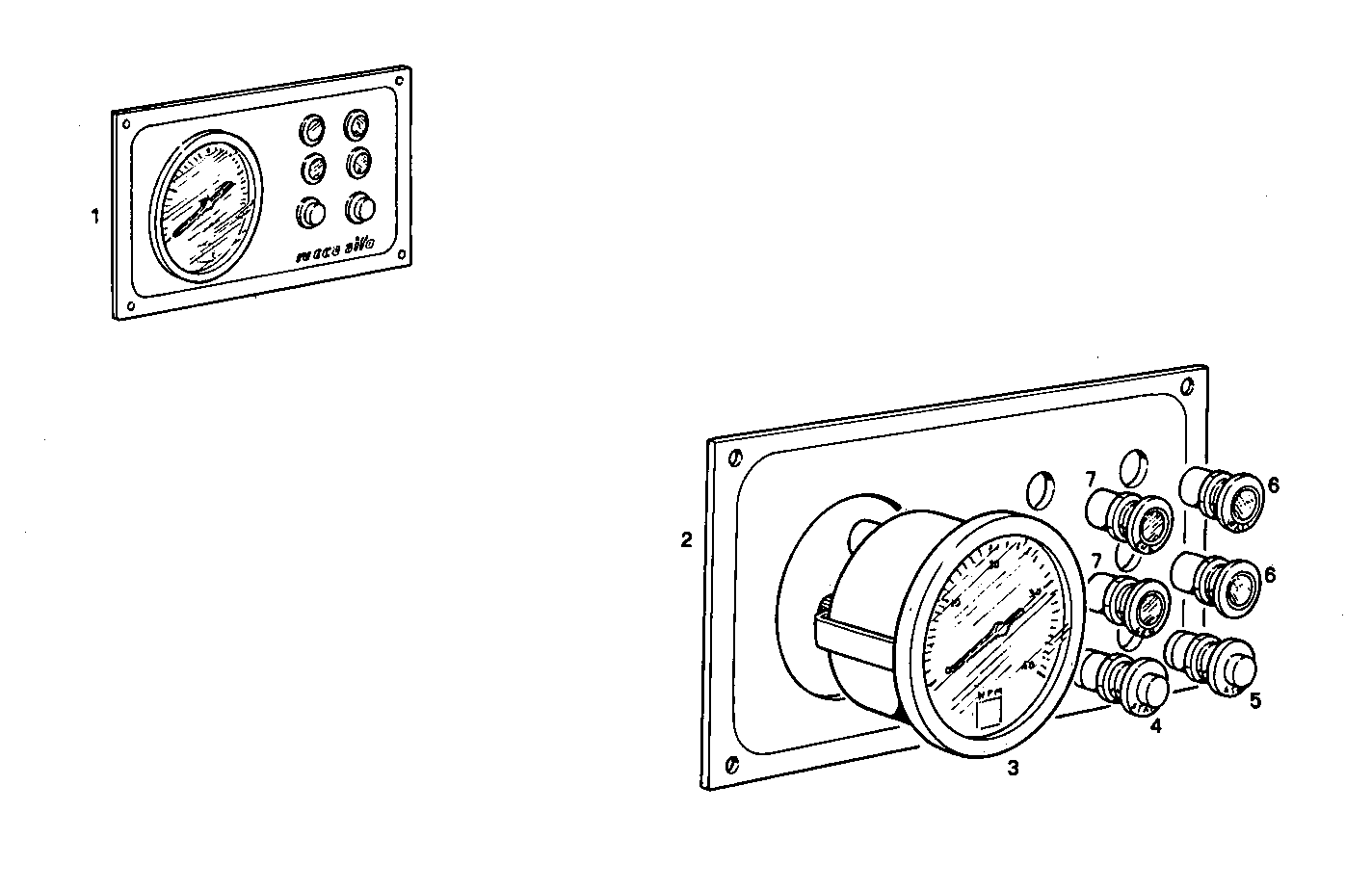

A38700908 DASH PANEL - 12V - VDO
| Item | Part number | Description |
|---|---|---|
| 1 | 8025479 | INSTRUMENTS BOARD ASSY FLYNG BRIDGE |
| 2 | 8108528 | INSTRUMENTS BOARD |
| 3 | 8025482 | REVOLUTION COUNTER |
| 4 | 8108529 | PUSH BUTTON STARTER |
| 5 | 8108530 | PUSH BUTTON STOP |
| 6 | 8108531 | WARNING LIGHT |
| 7 | 8108532 | LUMINOUS INDICATOR |
