8045SE00.00

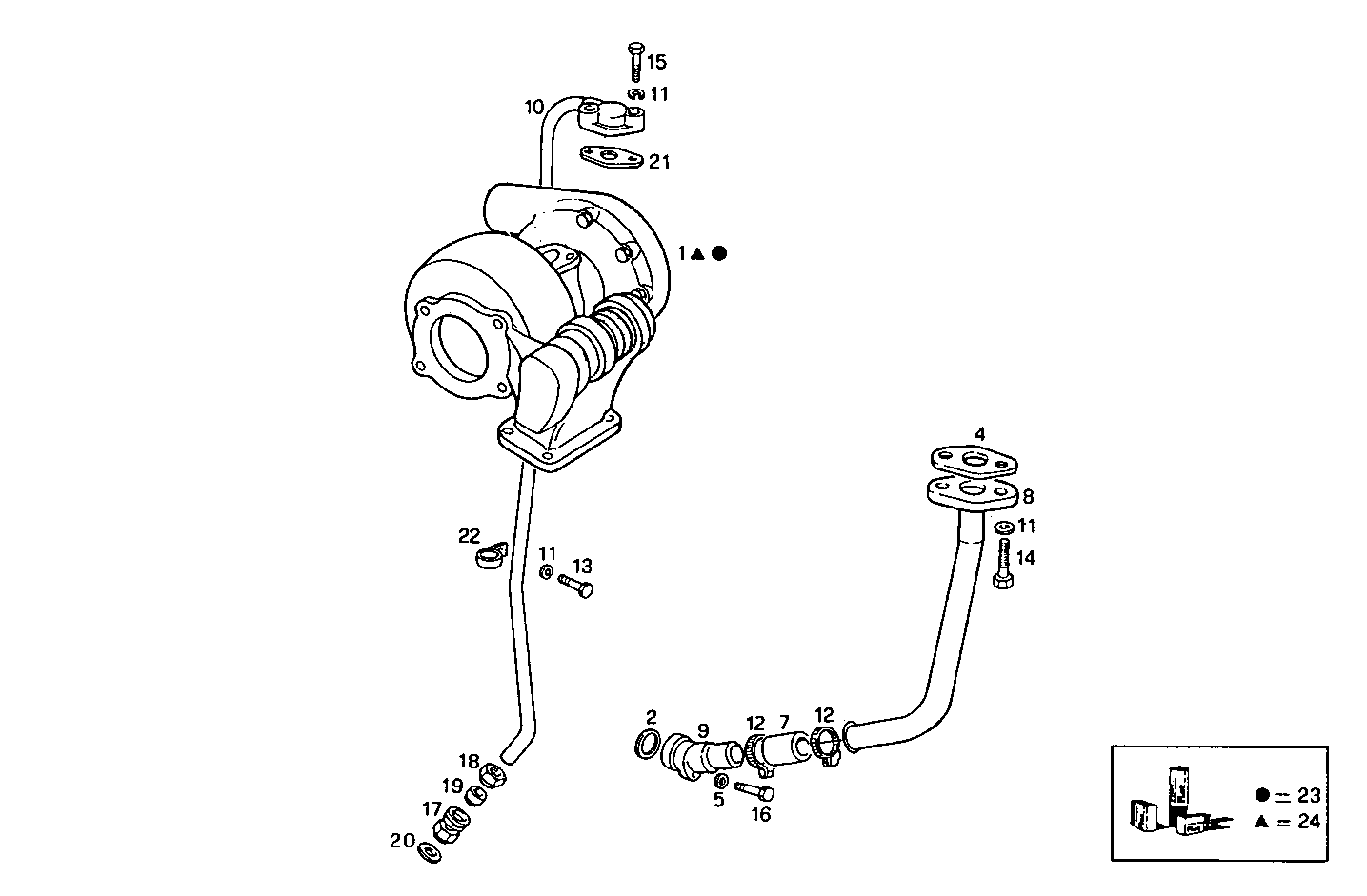

2400.028 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 98472953 TURBOCHARGER ASSY GARRETT
2 4600893 GASKET
4 98415923 FLAT ENGINE GASKET
5 4716734 WASHER
7 98425459 RUBBER SLEEVE Ø22 MM
8 4812506 OIL LINE
9 4813599 ELBOW COUPLING
10 4812509 OIL LINE ASSY
11 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
12 17764592 CLIP Ø20/32 MM
13 16043124 SCREW M8X14 MM
14 16605624 HEXAGON BOLT M8X25 MM (8.8)
15 16605824 HEXAGON BOLT M8X35 MM
16 16606624 HEXAGON BOLT M8X80 MM
17 16500311 PIPE SOCKET M16X1,5/M18X1,5
18 16506911 NUT M18X1,5
19 16507611 WASHER Ø12 MM
20 16508260 WASHER Ø16X20 MM
21 98415922 FLAT ENGINE GASKET
22 4562651 FASTENING BRACKET
23 8092757 KIT-TURBOCHARGER
24 8092758 KIT-TURBOCHARGER
