8045SE00.09A002

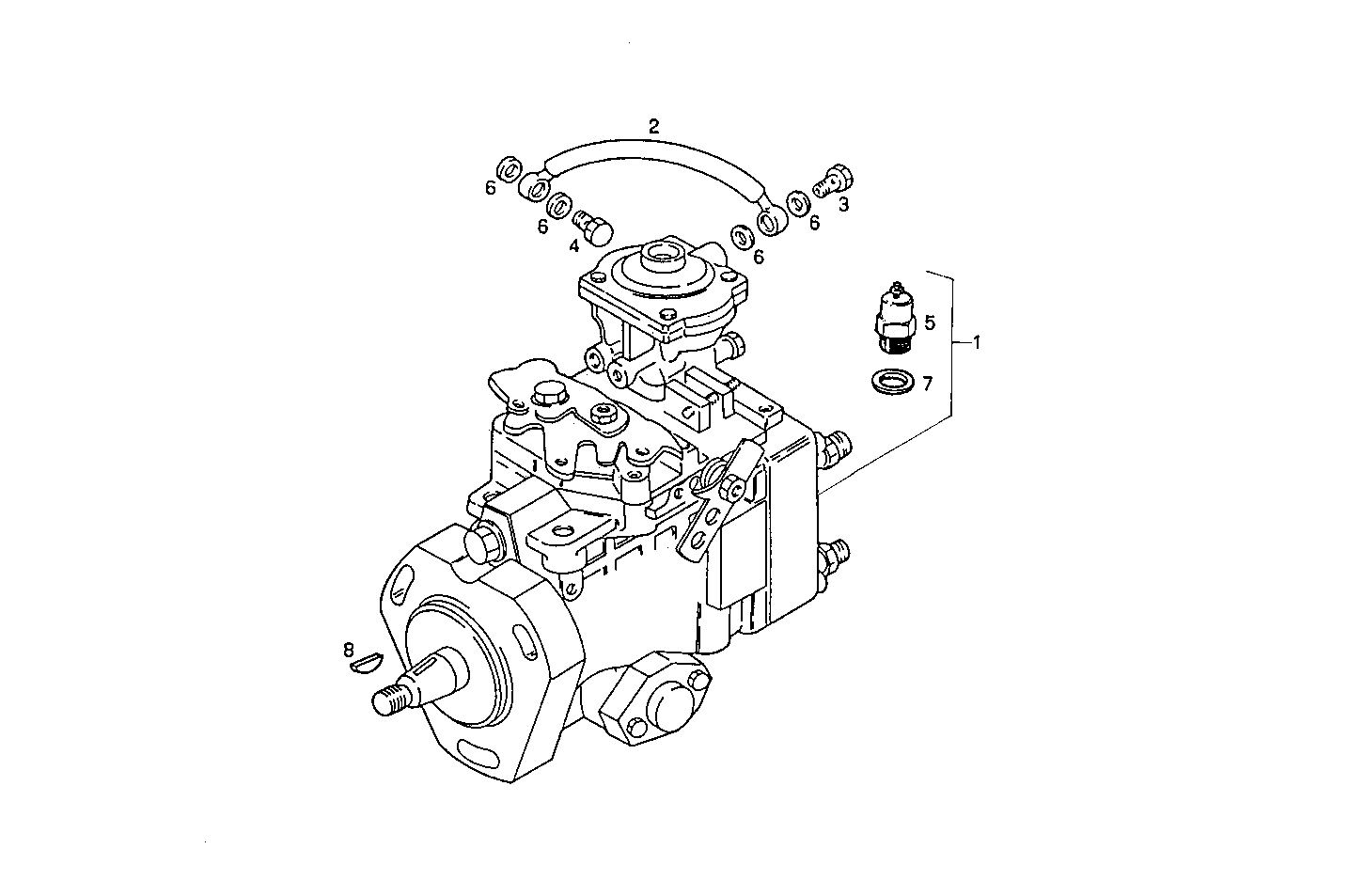

1400.298 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 99441590 | DISTRIB.INJ.PUMP |
| 2 | 99449533 | FUEL LINE |
| 3 | 4753761 | SCREW CONNECTOR |
| 4 | 4833907 | SCREW CONNECTOR |
| 5 | 9967829 | ELECTROVALVE |
| 6 | 4858605 | WASHER Ø8X12 MM |
| 7 | 9008558 | RUBBER RING |
| 8 | 17221020 | KEY M12X110 MM |
