8045SE00.09A002

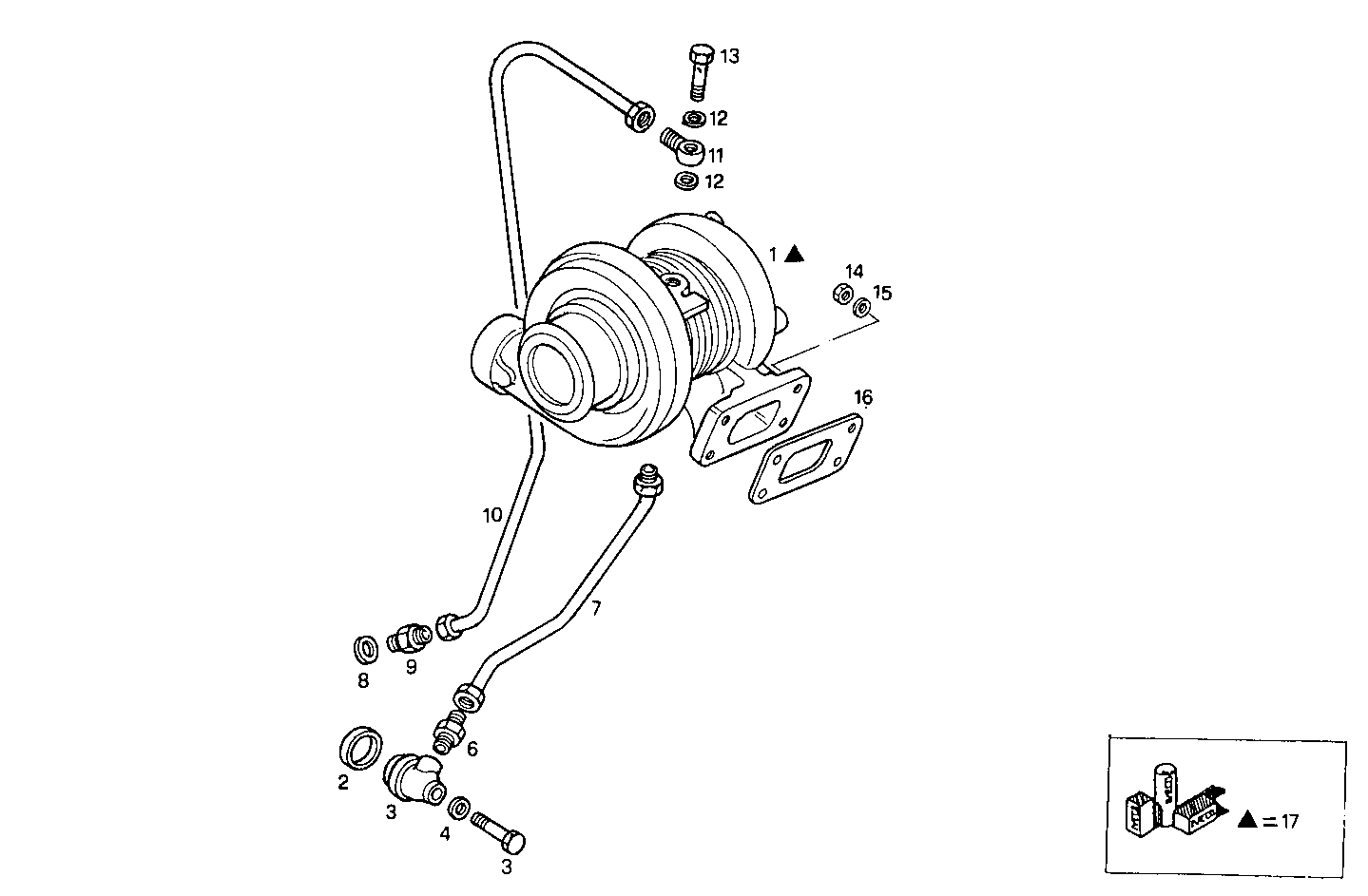

2400.153 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 99449947 | TURBOCHARGER ASSY GARRETT |
| 2 | 4600893 | GASKET |
| 3 | 99443261 | CONNECTOR |
| 4 | 4716734 | WASHER |
| 5 | 16606624 | HEXAGON BOLT M8X80 MM |
| 6 | 16500311 | PIPE SOCKET M16X1,5/M18X1,5 |
| 7 | 99443267 | OIL LINE |
| 8 | 16508260 | WASHER Ø16X20 MM |
| 9 | 99443263 | PIPE SOCKET |
| 10 | 99443268 | OIL LINE |
| 11 | 61604086 | BANJO COUPLING |
| 12 | 16508060 | SEAL GASKET Ø12X15,5 MM |
| 13 | 4851303 | SCREW CONNECTOR |
| 14 | 500322677 | HEXAGON NUT M8 |
| 15 | 17094914 | WASHER 8x16 |
| 16 | 4834948 | EXH. MANIFOLD GKT |
| 17 | 9970367 | KIT-TURBOCHARGER |
