8045SE00.09A002

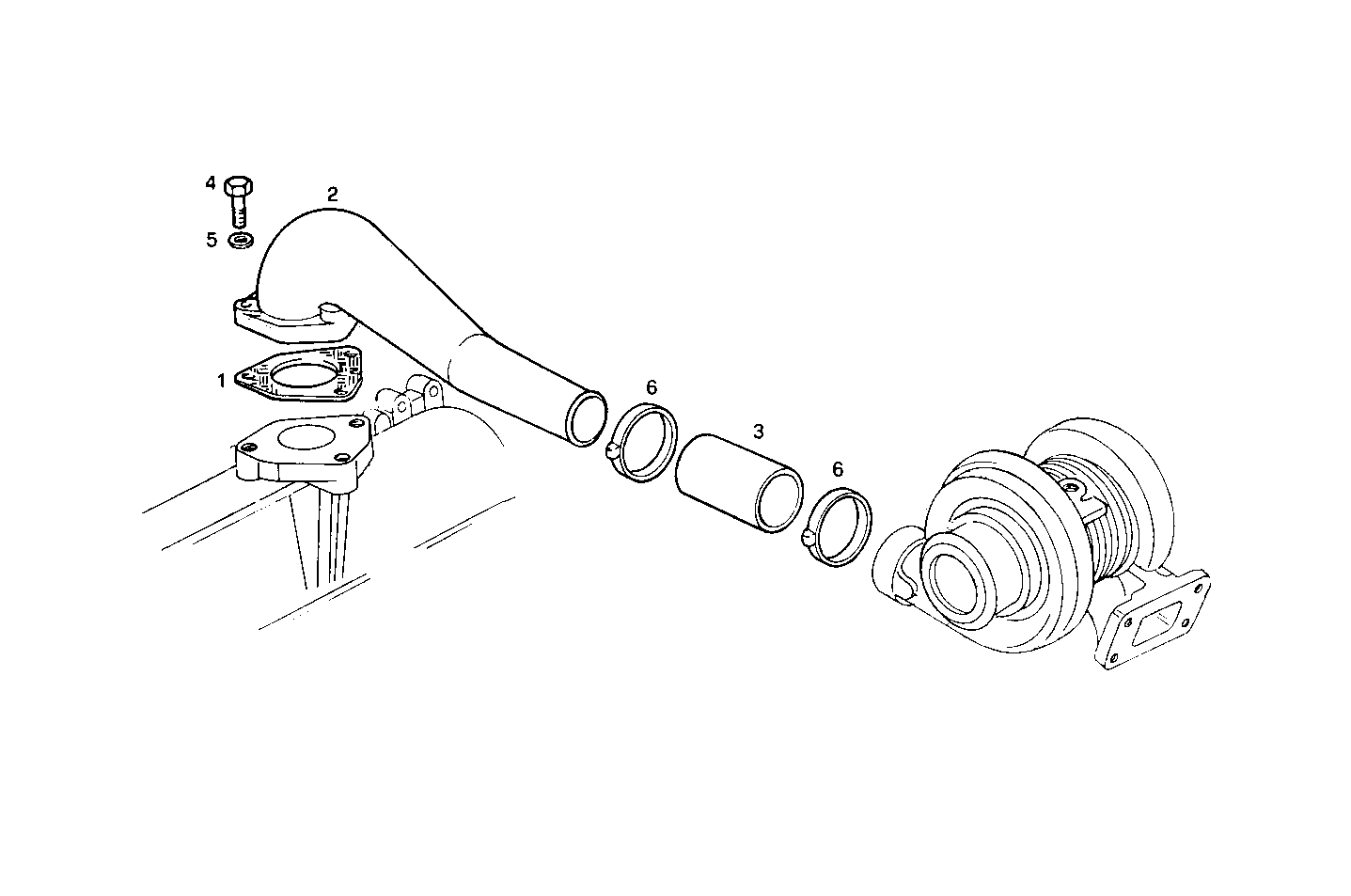

2420.172 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98418533 | FLAT ENGINE GASKET |
| 2 | 99449436 | AIR MANIFOLD |
| 3 | 99449437 | RUBBER SLEEVE |
| 4 | 11307024 | SCREW M10X1,25X40 MM |
| 5 | 17095014 | WASHER Ø10X18 MM |
| 6 | 17764992 | CLIP Ø50-70 MM |
