8045SE00.09A002

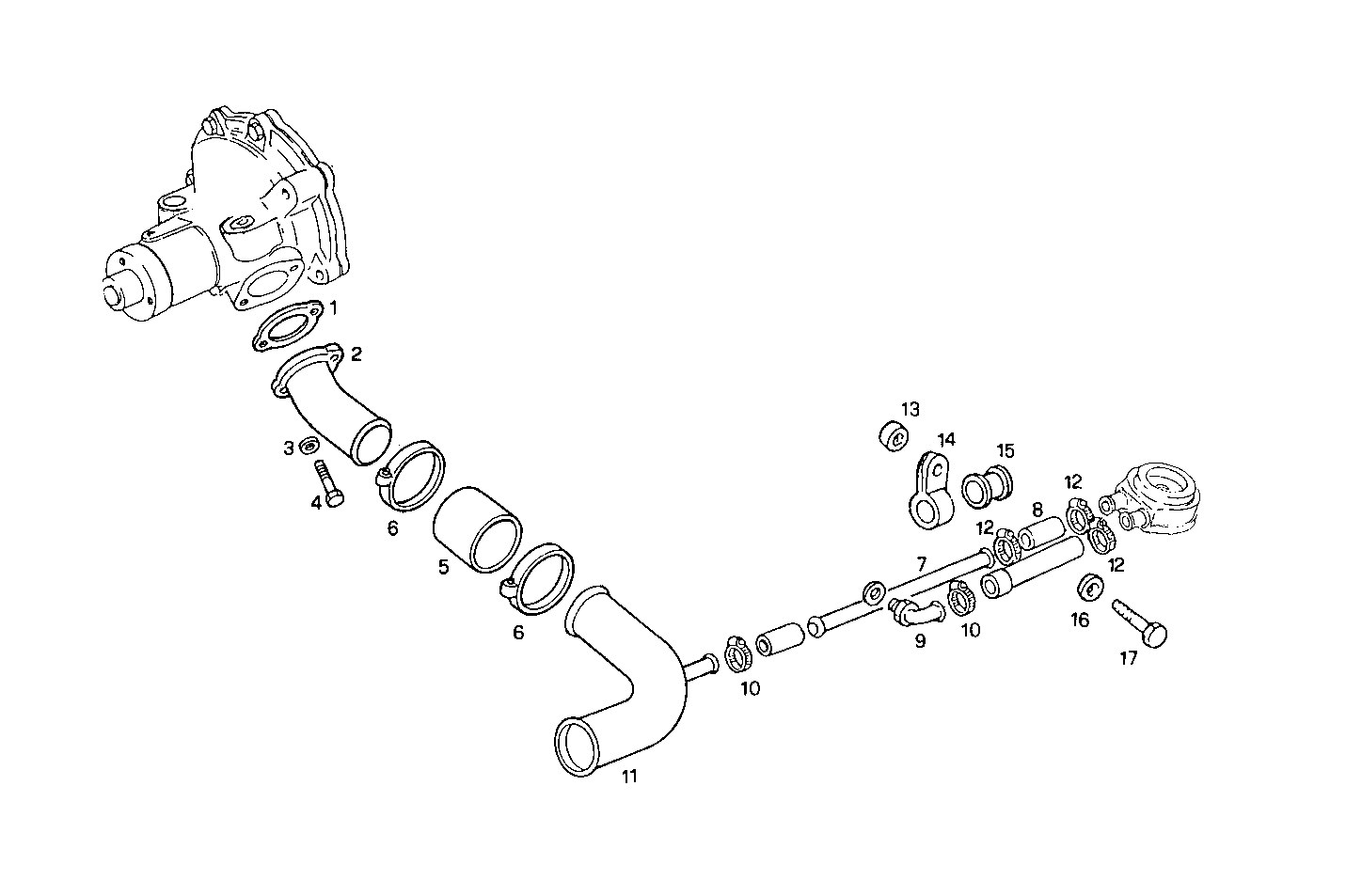

3210.228 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4852556 | FLAT ENGINE GASKET |
| 2 | 4697838 | WATER PIPE |
| 3 | 17094914 | WASHER 8x16 |
| 4 | 98401723 | HEXAGON BOLT M8X1,25X12 MM |
| 5 | 17742887 | RUBBER SLEEVE |
| 6 | 17764792 | HOSE CLIP Ø32-50 MM |
| 7 | 8030525 | WATER PIPE |
| 8 | 17737187 | WATER HOSE |
| 9 | 98418647 | PIPE SOCKET |
| 10 | 18088291 | CLIP Ø12/20 MM |
| 11 | 8103965 | WATER PIPE |
| 12 | 18088391 | CLIP Ø16/25 MM |
| 13 | 4730712 | SPACING BAR |
| 14 | 8030538 | CLIP |
| 15 | 4757122 | RUBBER PAD |
| 16 | 17090174 | SPRING WASHER Ø10X20 MM |
| 17 | 11307021 | HEXAGON BOLT M10X40 MM |
