8045SE00.09A002

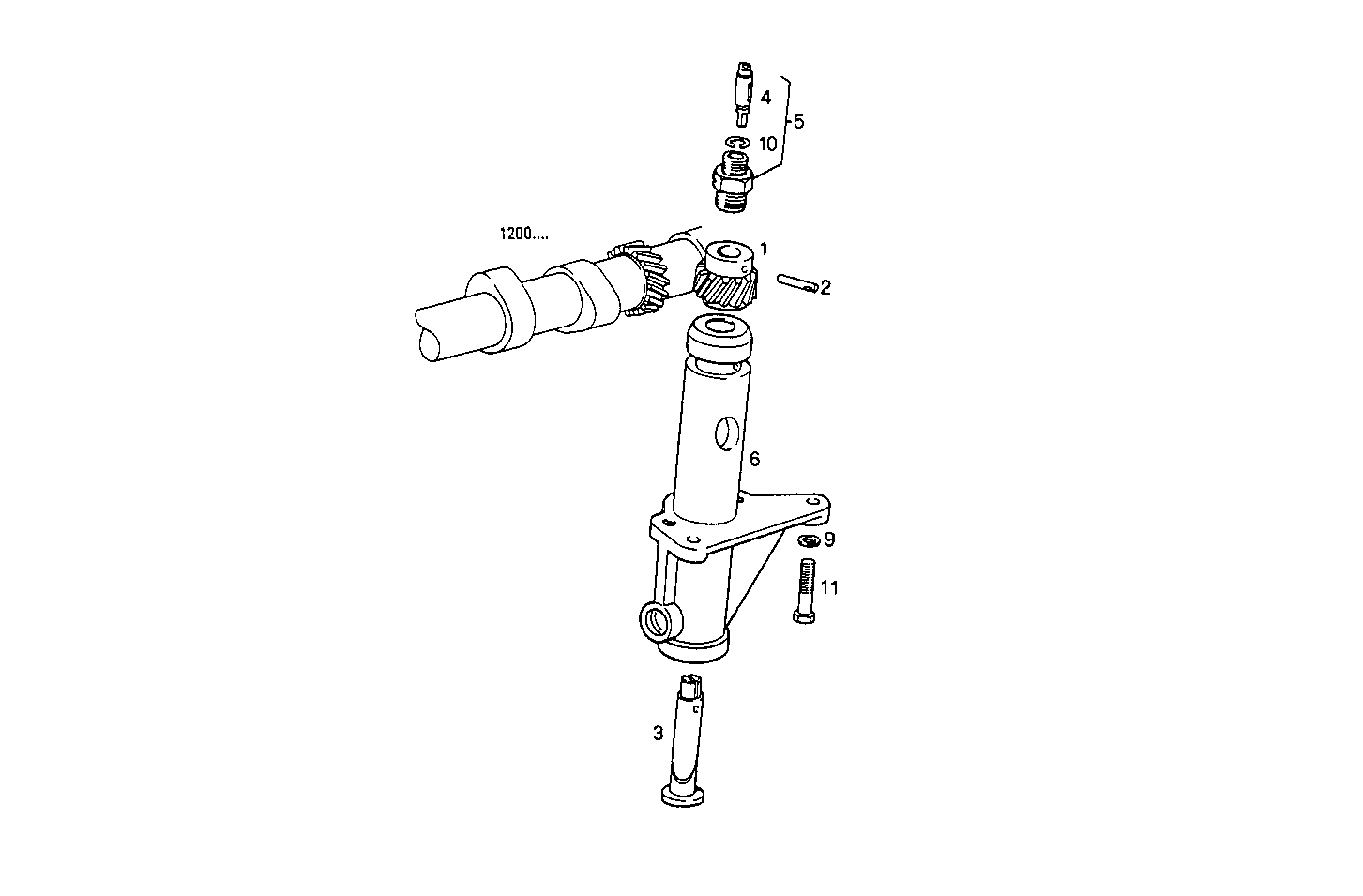

4200.025 REVOLUTION COUNTER DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 4599726 | OIL PUMP INT.GEAR |
| 2 | 4605293 | GUIDE BOLT |
| 3 | 4613297 | SHAFT |
| 4 | 500303539 | THRUST ROD |
| 5 | 500303540 | PIPE SOCKET ASSY |
| 6 | 98415076 | SUPPORT |
| 9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 10 | 13400575 | CIRCLIP Ø10 MM |
| 11 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
