8045SE00.50

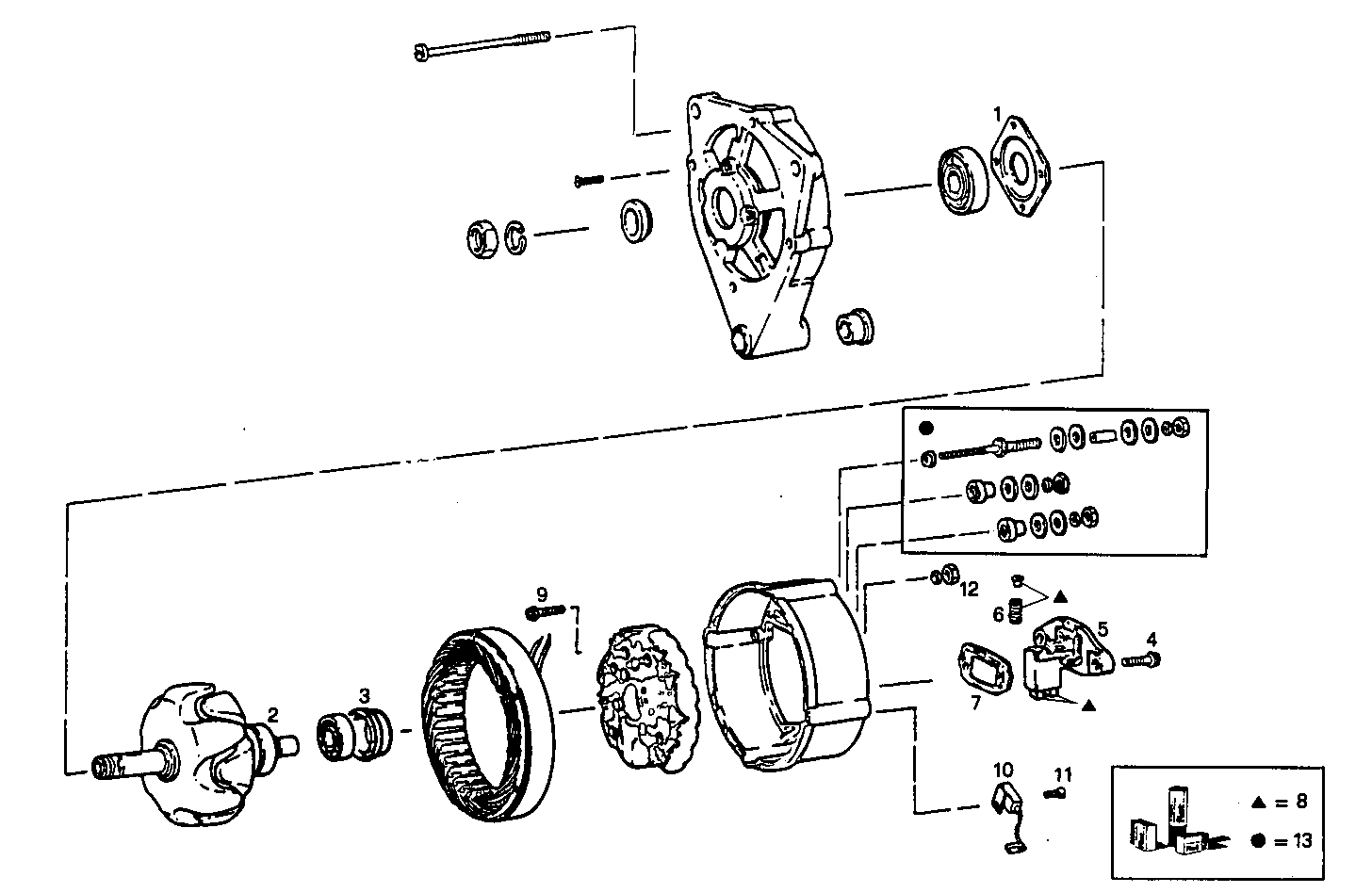

T1401001 ALTERNATOR - (components)

Iveco/FPT ALTERNATOR

Item Part number Description
1 93160254 PLATE
2 8121108 RING
3 93160279 CENTERING RING
4 93160239 SCREW
5 8198422 VOLTAGE REGULATOR ASSY
6 42491524 SPRING
7 93160245 GASKET M6X12 MM
8 93160236 CARBON BRUSHES M6X12 MM
9 79093985 SCREW
10 79074709 CONDENSER SP=0,5 MM
11 93190613 SCREW
12 9923766 HEXAGON NUT
13 79074707 KIT-GENERATOR
