8045SRE10.00

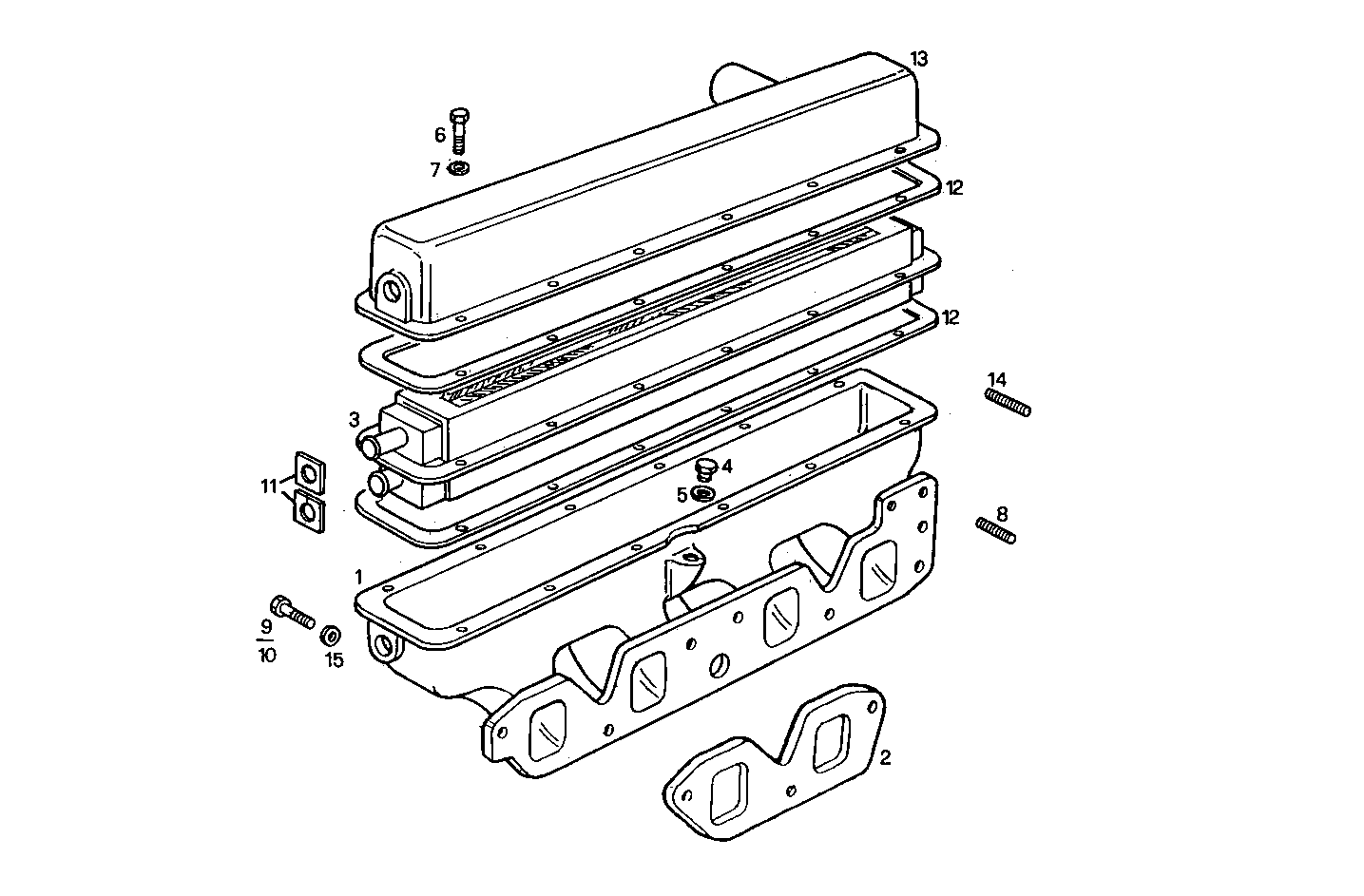

0710.110 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 8026721 | INTAKE ELBOW |
| 2 | 4851921 | INTAKE ELBOW GASK. |
| 3 | 8026079 | AIR/WATER HEAT EXCHANGER |
| 4 | 10305011 | PLUG |
| 5 | 98429280 | SEAL GASKET Ø20X26 MM SP=1,5 MM |
| 6 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 7 | 17094804 | WASHER Ø8X15 MM |
| 8 | 16729324 | STUD M8X12X20 MM |
| 9 | 16605824 | HEXAGON BOLT M8X35 MM |
| 10 | 16043721 | HEXAGON BOLT M8X28 MM |
| 11 | 82853240 | GASKET |
| 12 | 82853656 | GASKET |
| 13 | 82851804 | COVER |
| 14 | 16731324 | STUD M10X30 MM |
