8045SRE10.00

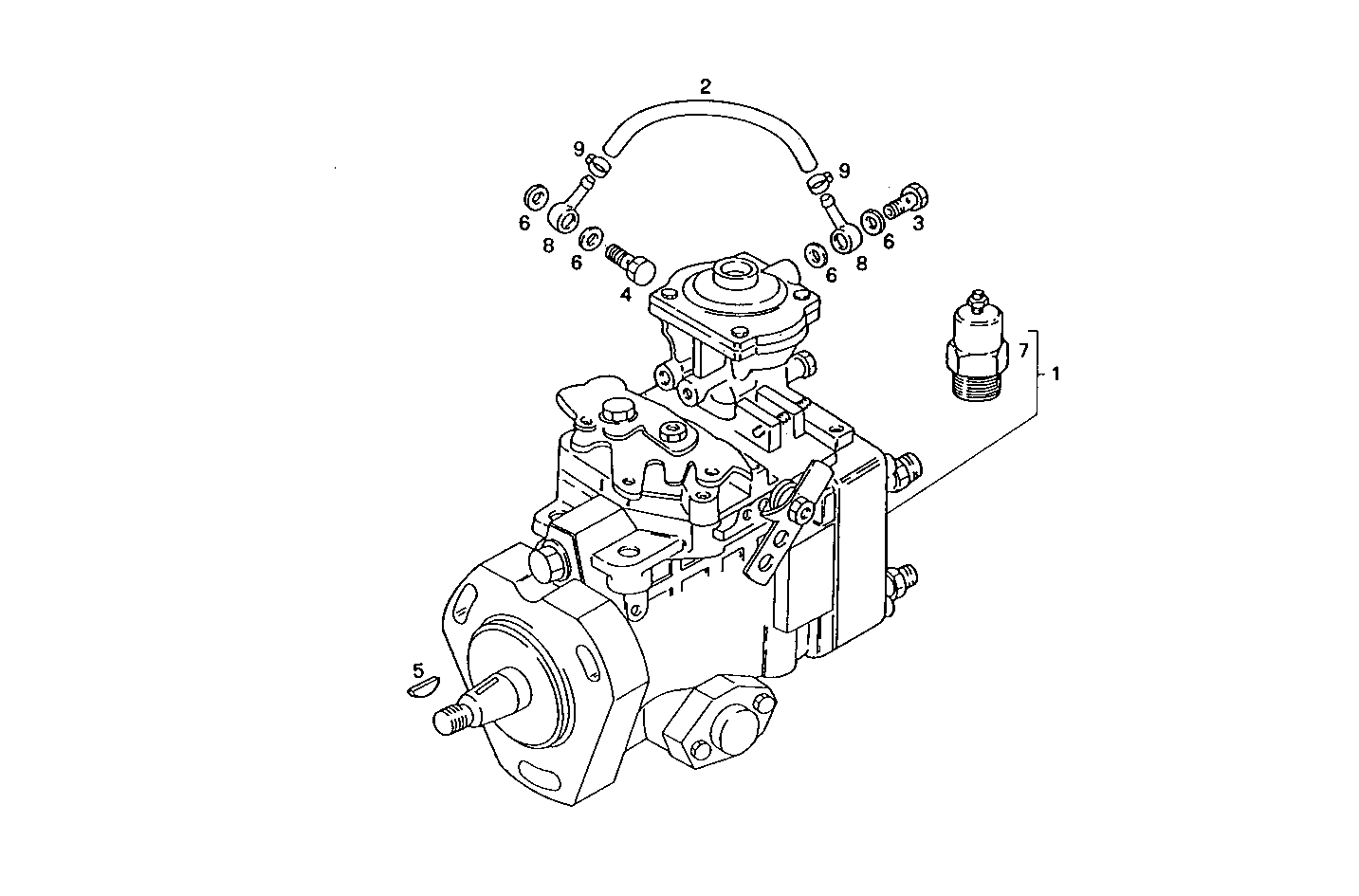

1400.220 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 8026771 | DISTRIB.INJ.PUMP |
| 2 | 17724387 | HOSE |
| 3 | 4753761 | SCREW CONNECTOR |
| 4 | 4833907 | SCREW CONNECTOR |
| 5 | 10205820 | KEY 4X6,5 MM |
| 6 | 4858605 | WASHER Ø8X12 MM |
| 7 | 8100253 | ELECTROVALVE 12V |
| 8 | 4551099 | SWIVEL COUPLING |
| 9 | 18087991 | CLIP Ø8/16 MM |
