8045SRE10.00

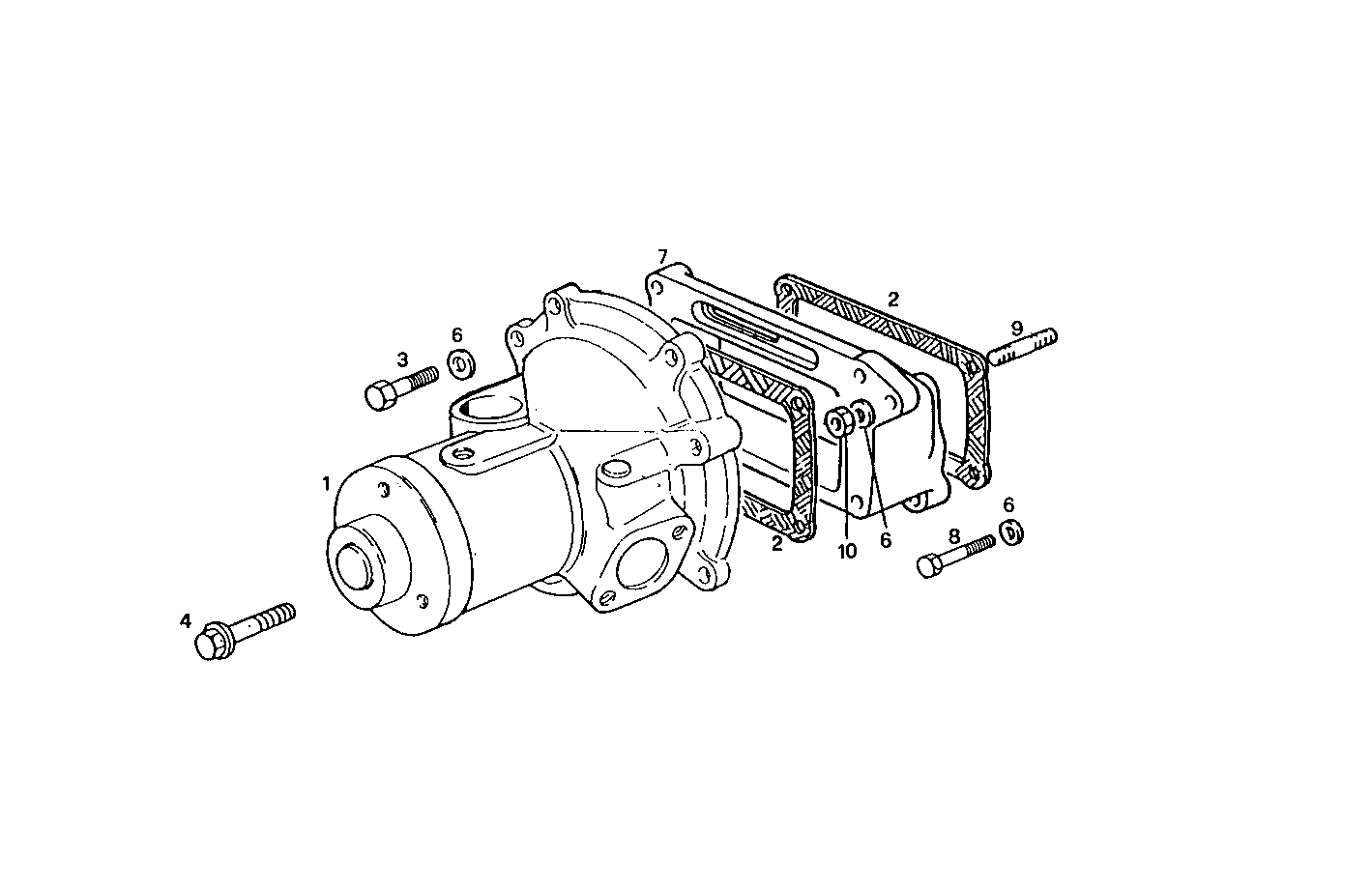

3200.086 WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 99454833 | WATER PUMP ASSY [from 02-97] |
| 2 | 98400776 | FLAT ENGINE GASKET |
| 3 | 15888721 | HEXAGON BOLT M10X1,25X55 MM |
| 4 | 16288624 | HEXAGON BOLT M10X1,25X35 MM |
| 6 | 11190571 | SPRING WASHER Ø10X20 MM SP=2,3 |
| 7 | 8026803 | SUPPORT |
| 8 | 11234721 | HEXAGON BOLT M10X1,25X45 MM |
| 9 | 13449910 | STUD M10X1,25X40 MM |
| 10 | 12164740 | HEXAGON NUT M10X1,25 |
