8045SRE10.00

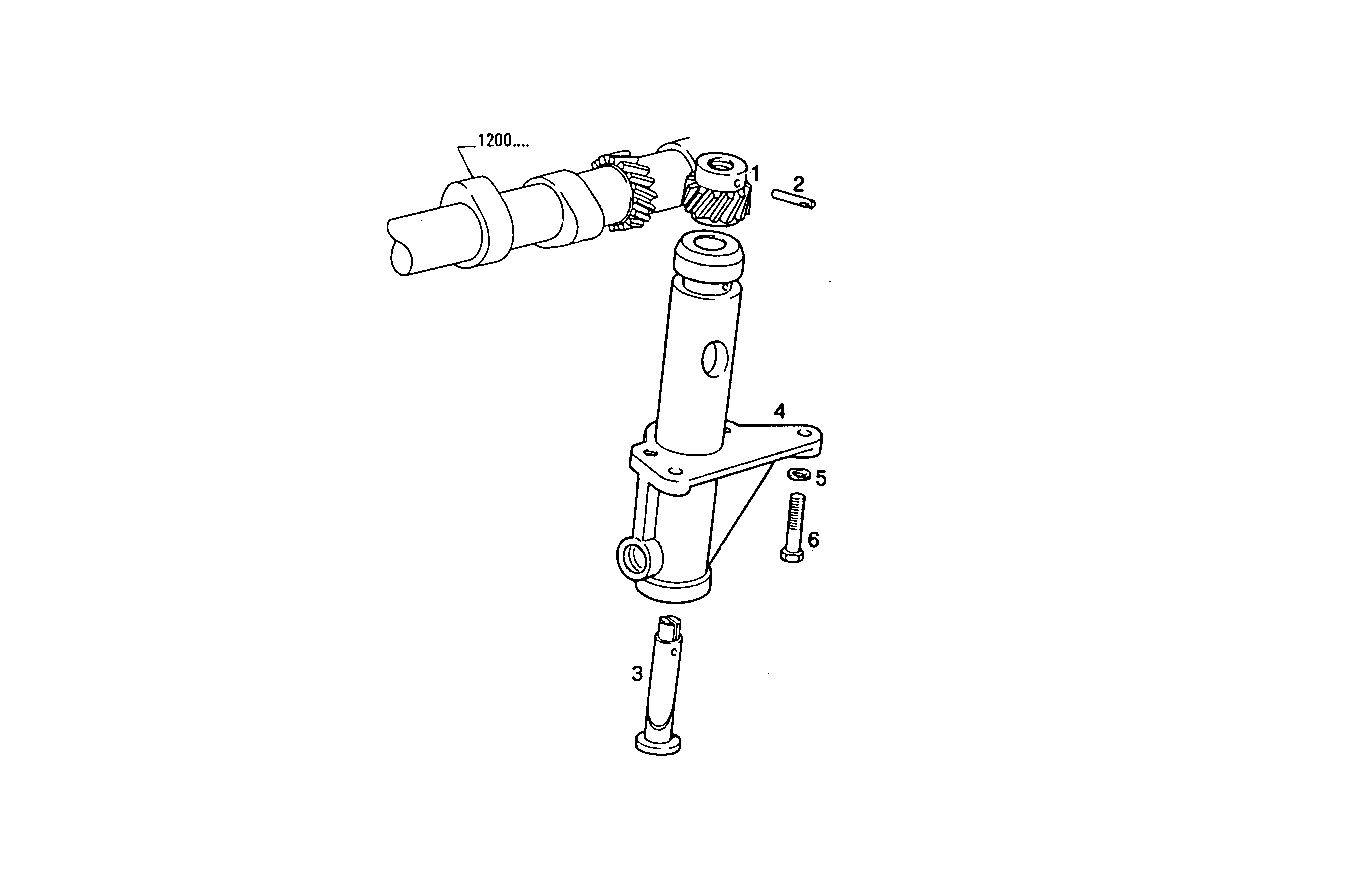

4200.012 REVOLUTION COUNTER DRIVE

Iveco/FPT REVOLUTION COUNTER DRIVE

Item Part number Description
1 4599726 OIL PUMP INT.GEAR
2 4605293 GUIDE BOLT
3 4613297 SHAFT
4 98415076 SUPPORT
5 17089471 SPRING WASHER Ø16X8 MM SP=1,4 MM
6 16605624 HEXAGON BOLT M8X25 MM (8.8)
