8045SRE10.00

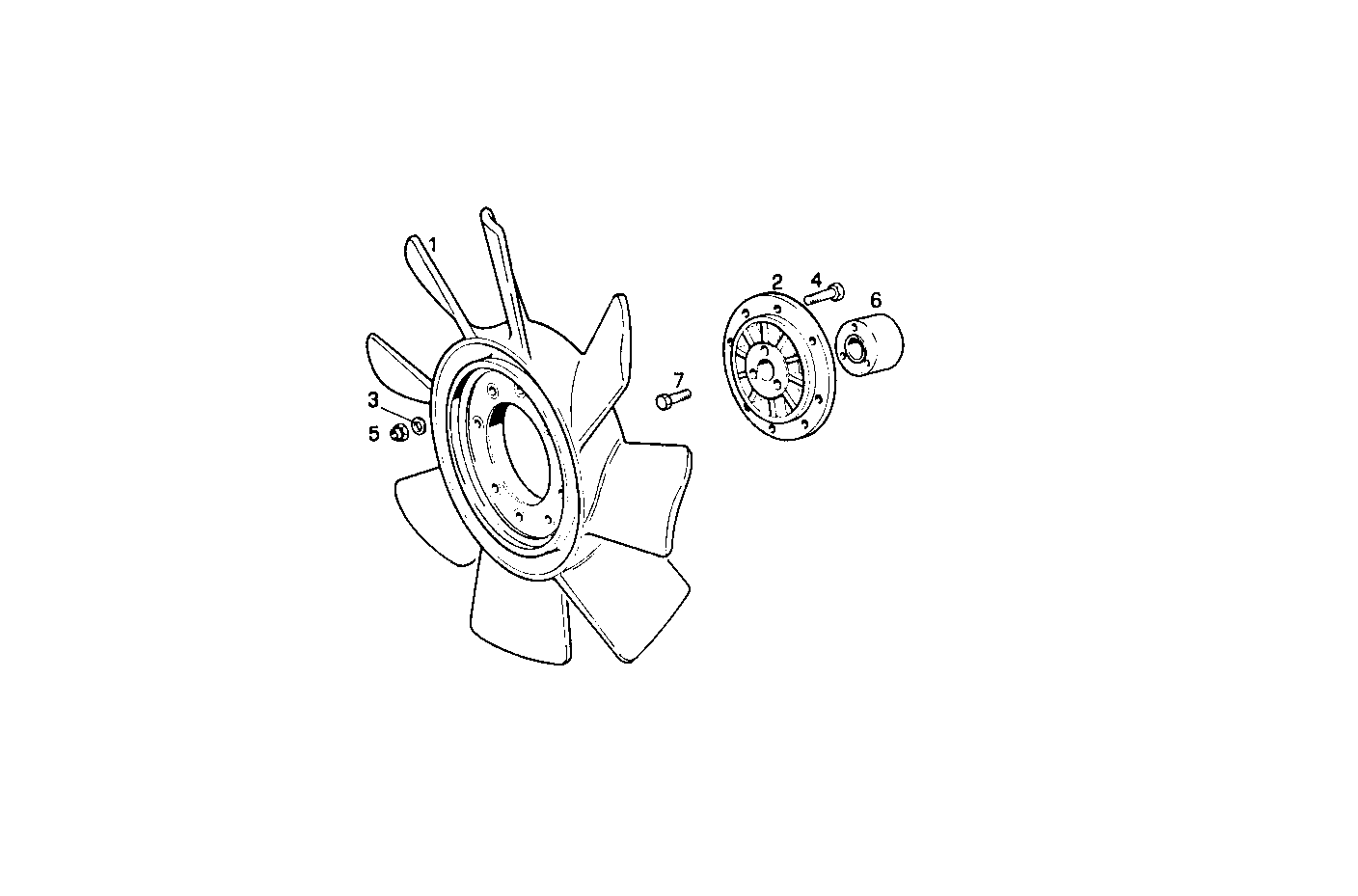

A08000010 PULLER FAN - on water pump with compressor
| Item | Part number | Description |
|---|---|---|
| 1 | 4638173 | BLOWER Ø450 MM |
| 2 | 8010649 | HUB |
| 3 | 10519601 | WASHER Ø8X17 MM |
| 4 | 16625734 | HEXAGON BOLT M8X35 |
| 5 | 16104111 | HEXAGON NUT M8 |
| 6 | 8105170 | SPACING BAR |
| 7 | 16044521 | HEXAGON BOLT M8X65 MM |
