8045SRE10.00

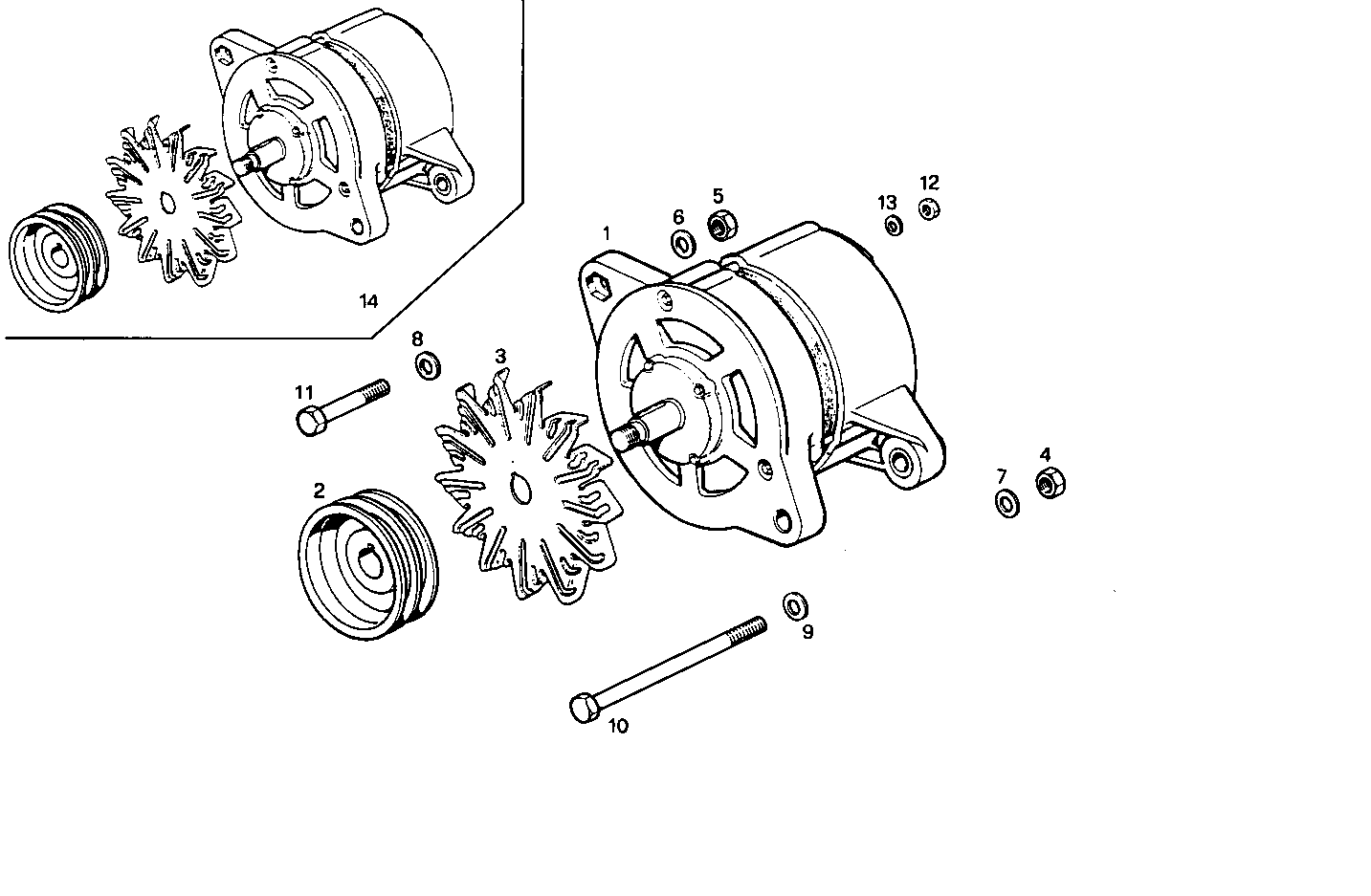

A14050016 SELF-REGULATED ALTERNATOR - 12V 65A
Item | Part number | Description |
---|---|---|
1 | 4808511 | ALTERNATOR ASSY MARELLI - 12V |
2 | 4808606 | PULLEY |
3 | 4717026 | GENERATOR FAN MARELLI |
4 | 17038621 | NUT M12 |
5 | 17038221 | HEXAGON NUT M10 |
6 | 17090174 | SPRING WASHER Ø10X20 MM |
7 | 17091074 | WASHER Ø12X24X2,8 MM |
8 | 17095104 | WASHER Ø10X21X2 MM |
9 | 17095304 | WASHER Ø12X24 MM |
10 | 15541821 | HEXAGON BOLT M12X1,25X120 MM [up to 565948] |
11 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
12 | 17037821 | HEXAGON NUT M6X1 |
13 | 17088474 | WASHER Ø6X12 MM |
14 | 4808517 | ALTERNATOR ASSY |
