8045SRE10.00

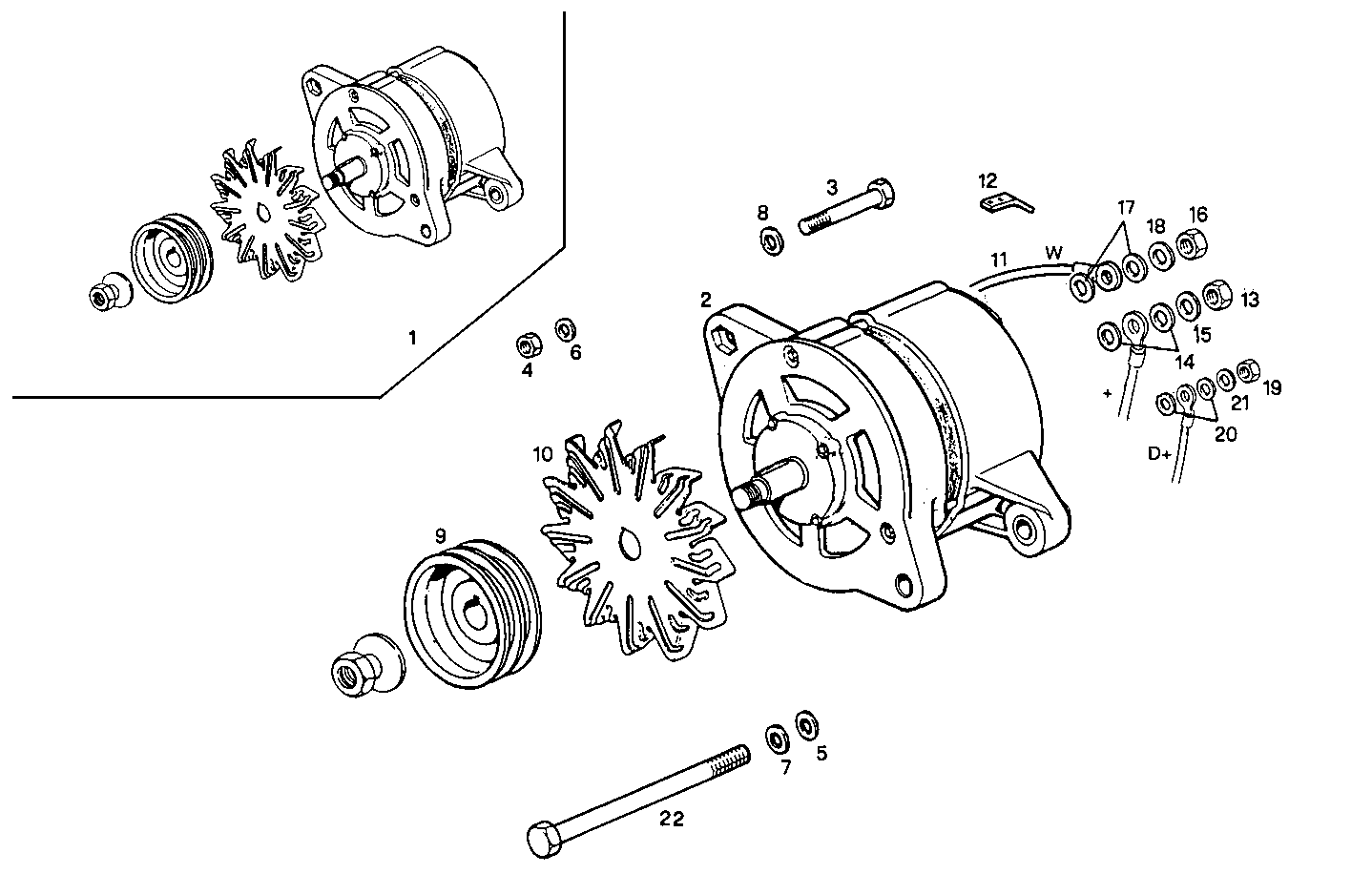

A14120026 SELF-REGULATED ALTERNATOR - 24V 55A (W)
| Item | Part number | Description |
|---|---|---|
| 1 | 8019541 | ALTERNATOR ASSY |
| 2 | 98424450 | ALTERNATOR ASSY BOSCH |
| 3 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 4 | 17038221 | HEXAGON NUT M10 |
| 5 | 17095304 | WASHER Ø12X24 MM |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 17091074 | WASHER Ø12X24X2,8 MM |
| 8 | 17095104 | WASHER Ø10X21X2 MM |
| 9 | 4808607 | PULLEY |
| 10 | 4757196 | GENERATOR FAN BOSCH |
| 11 | 8019531 | WIRE/CABLE W |
| 12 | 12277944 | CONNECTION D+ |
| 13 | 17037931 | HEXAGON NUT M8X1,25 |
| 14 | 17094914 | WASHER 8x16 |
| 15 | 17494834 | WASHER Ø8 MM |
| 16 | 17037721 | NUT M5X0,8 |
| 17 | 17094504 | WASHER Ø5,3X10 MM |
| 18 | 10615379 | TOOTHED WASHER Ø5,3 MM |
| 19 | 17037621 | HEXAGON NUT M4 |
| 20 | 17094204 | WASHER Ø4X8X0,8 MM |
| 21 | 10615279 | WASHER Ø4 MM |
| 22 | 15541921 | HEXAGON BOLT M12X1,25X130 MM |
