8045SRE10.00

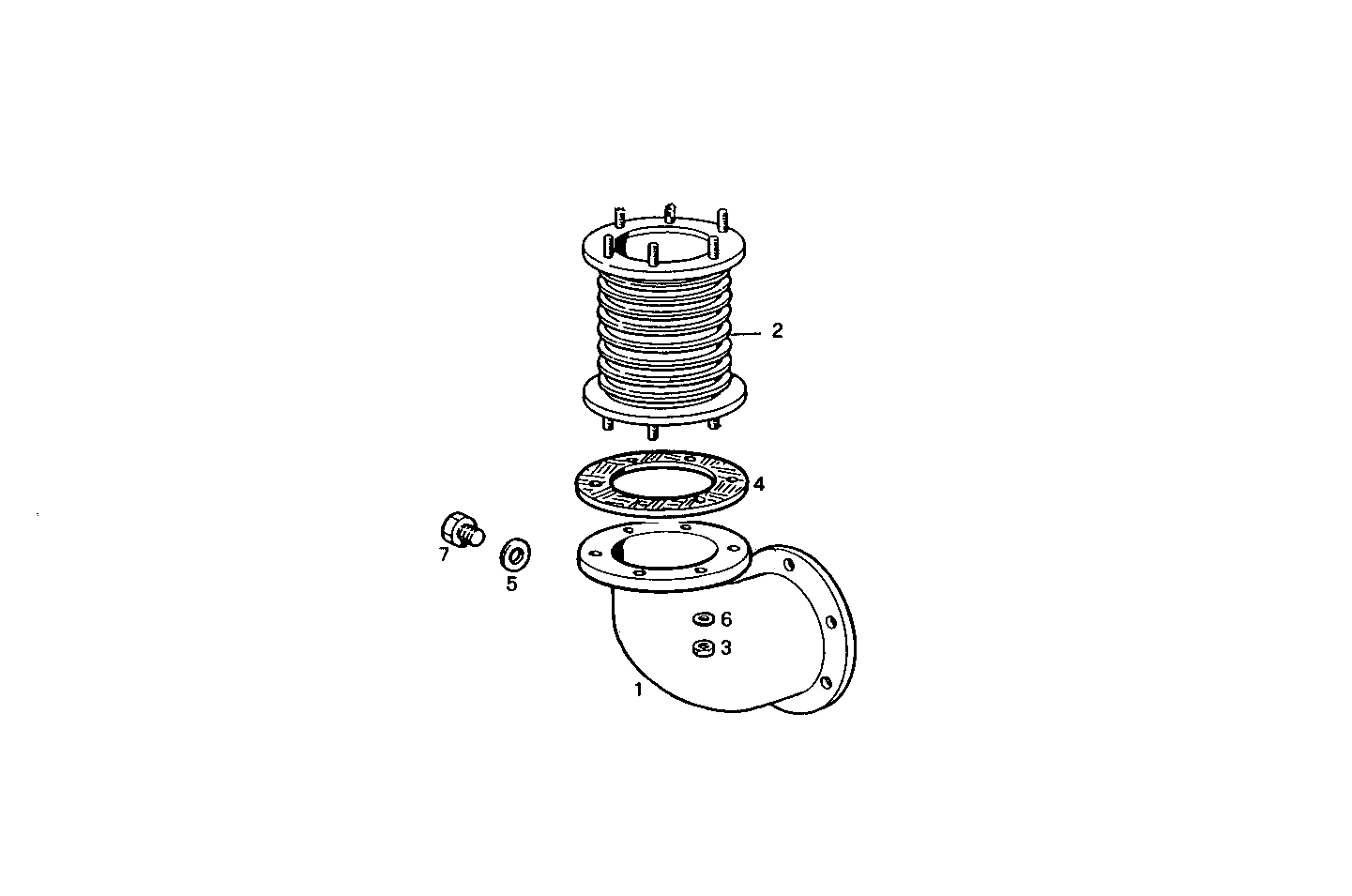

A40010010 TURNING EXHAUST ELBOW WITH BELLOWS
| Item | Part number | Description |
|---|---|---|
| 1 | 4935794 | EXHAUST ELBOW |
| 2 | 8010252 | EXHAUST BELLOWS ASSY |
| 3 | 17037931 | HEXAGON NUT M8X1,25 |
| 4 | 8009606 | GASKET |
| 5 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 16992211 | THREADED PLUG M12X1,5 |
