8045SRE10.00

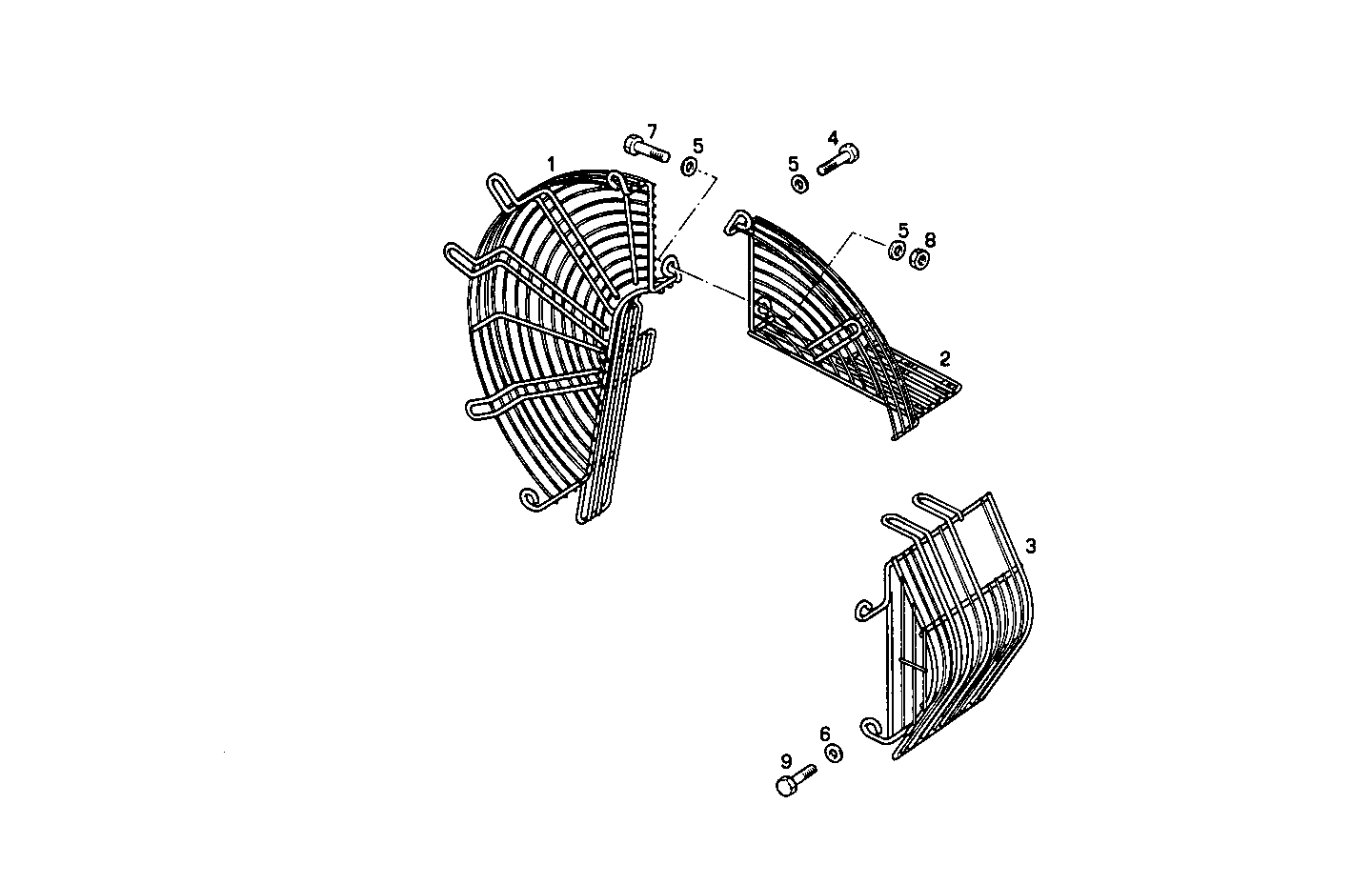

A48060002 GUARD - for fan oversize radiator
| Item | Part number | Description |
|---|---|---|
| 1 | 8008262 | PROTECTION |
| 2 | 8008263 | PROTECTION |
| 3 | 8008264 | PROTECTION |
| 4 | 16043421 | HEXAGON BOLT M8X20 MM |
| 5 | 17089771 | WASHER Ø8X22X1,5 MM |
| 6 | 17088471 | SPRING WASHER Ø6X12 MM SP=1,2 MM |
| 7 | 16043621 | HEXAGON BOLT M8X25 MM |
| 8 | 17037931 | HEXAGON NUT M8X1,25 |
| 9 | 10902421 | HEXAGON BOLT M6X20 MM |
