8045SRE10.00

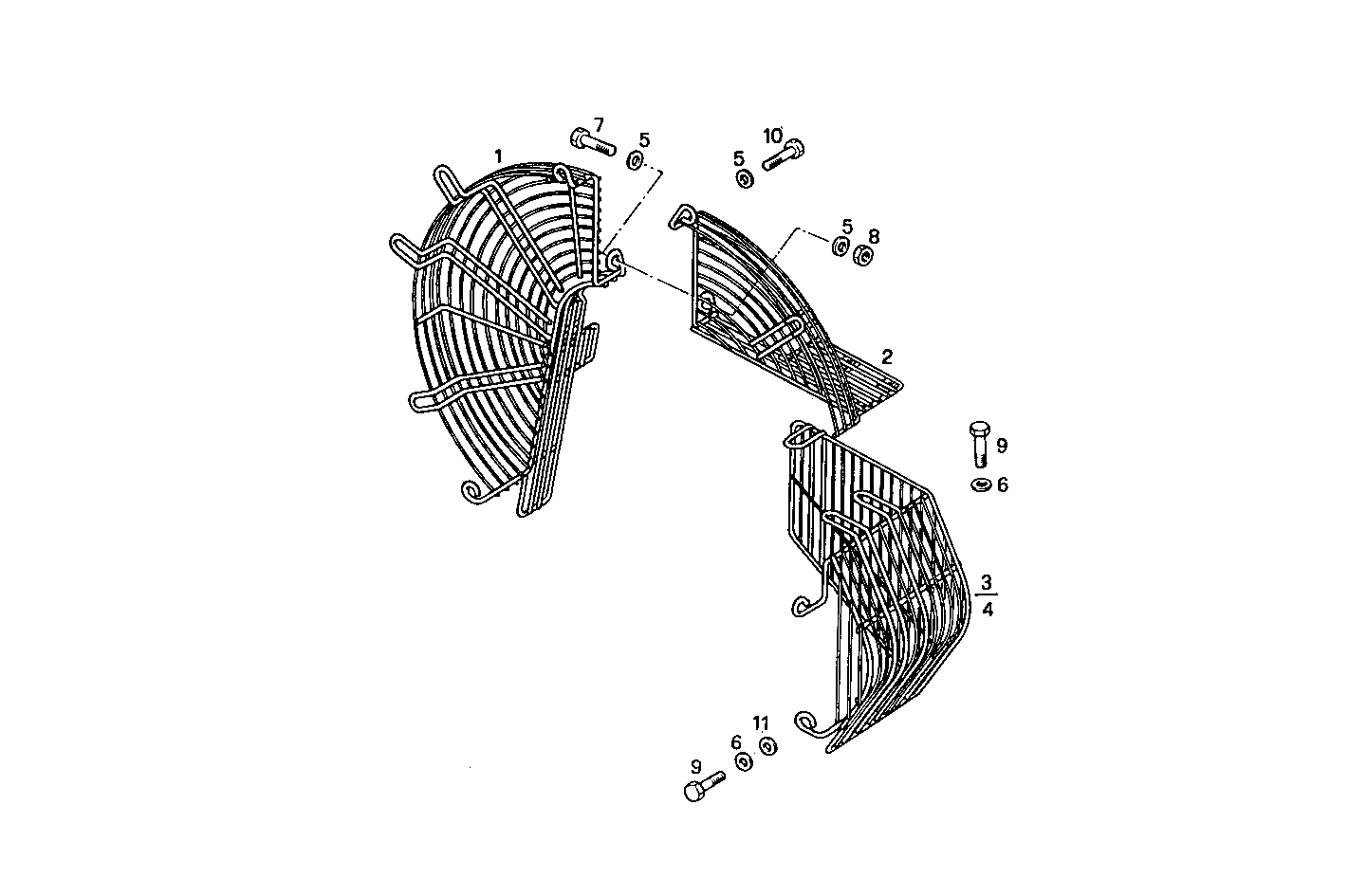

A48060010 GUARD - for fan and belt stretcher

Iveco/FPT GUARD

Item Part number Description
1 8008262 PROTECTION
2 8008263 PROTECTION
3 8008741 PROTECTION [up to 07-99]
4 8029049 PROTECTION [from 07-99]
5 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
6 17088474 WASHER Ø6X12 MM
7 16605624 HEXAGON BOLT M8X25 MM (8.8)
8 17037931 HEXAGON NUT M8X1,25
9 16603724 HEXAGON BOLT M6X20 MM (8.8)
10 16605524 HEXAGON BOLT M8X20 MM
11 19094904 WASHER
