8045SRE10.50

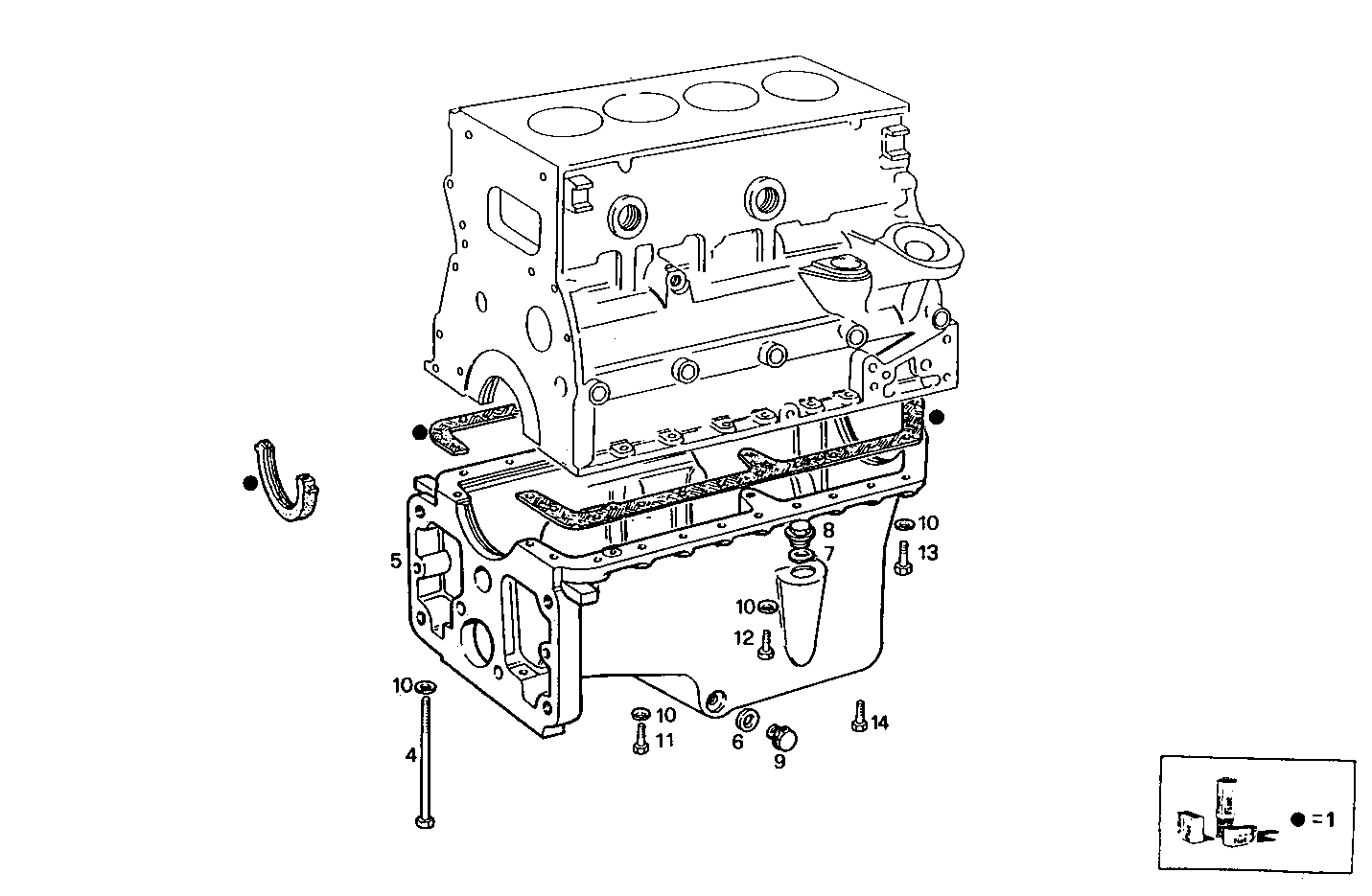

0420.125 OIL SUMP
Item | Part number | Description |
---|---|---|
1 | 1940012 | KIT-OILSUMP GASKET |
4 | 4607933 | SCREW M10X1,25X262 MM |
5 | 4816696 | OIL SUMP |
6 | 17282181 | O-RING Ø21,8 MM SP=2,6 MM |
7 | 10265060 | SEAL GASKET Ø32X38 MM SP=1,5 MM |
8 | 10276111 | LOCK PLUG M32X1,5 |
9 | 4847102 | THREADED PLUG |
10 | 10516879 | WASHER Ø10X18X2 MM |
11 | 11306924 | HEXAGON BOLT M10X1,25X30 MM |
12 | 11307024 | SCREW M10X1,25X40 MM |
13 | 11343724 | HEXAGON BOLT M10X70 MM |
14 | 4686762 | HEXAGON BOLT M10X1,25X30 |
