8045SRE10.50

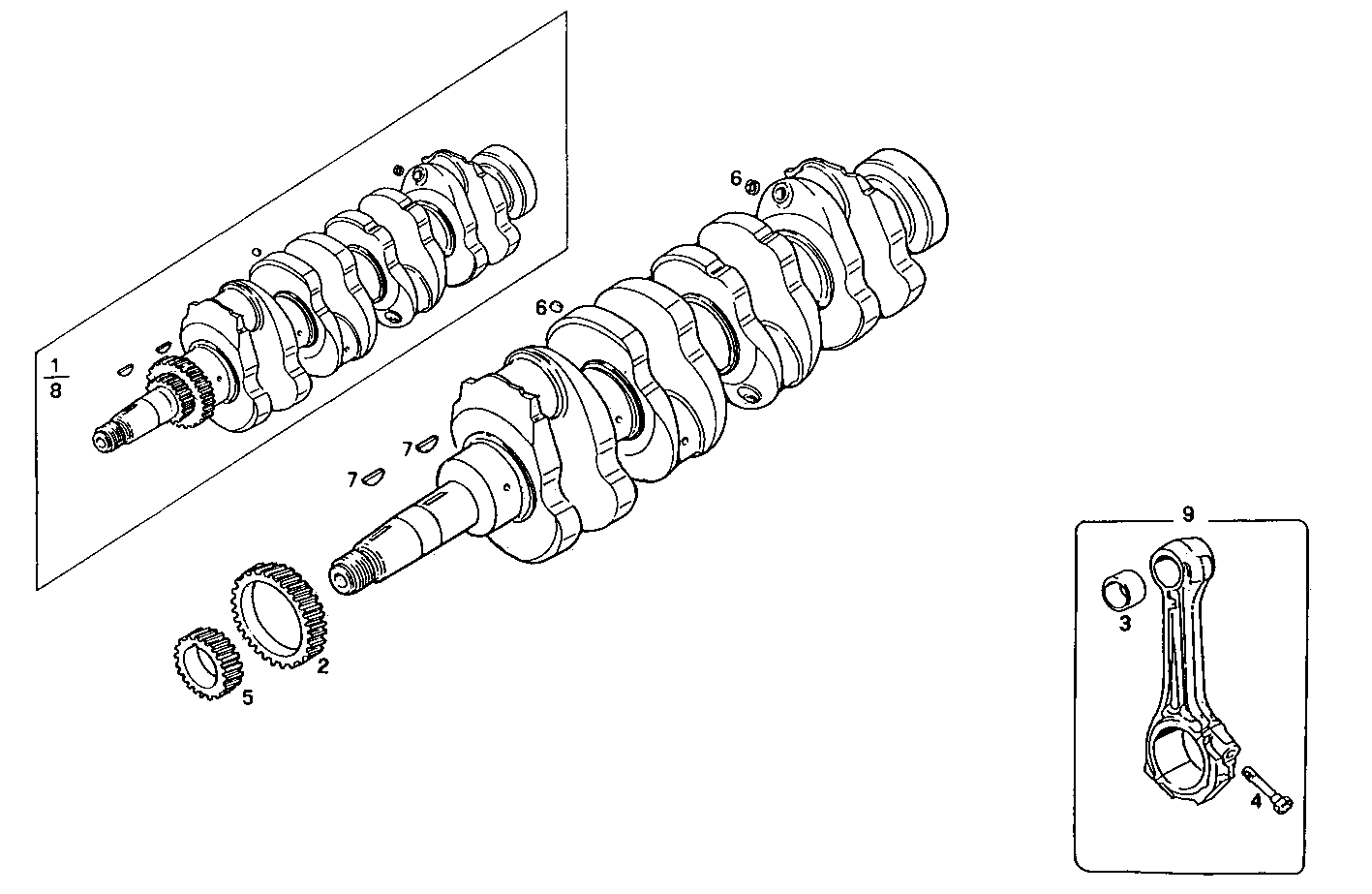

0800.023 CRANK SHAFT - CONNECTING RODS
Item | Part number | Description |
---|---|---|
1 | 4796470 | CRANK SHAFT ASSY |
2 | 4770255 | OIL PUMP DRIV.GEA |
3 | 98459977 | BIG-END BUSH VANDERVELL |
4 | 4780627 | BIG-END BOLT |
5 | 4809524 | TIMING DRIVE GEAR |
6 | 14328101 | LOCK PLUG Ø8 MM |
7 | 4655844 | KEY |
8 | 98451528 | CRANK SHAFT ASSY |
9 | 98461753 | CONN.ROD ASSY. ASSY |
