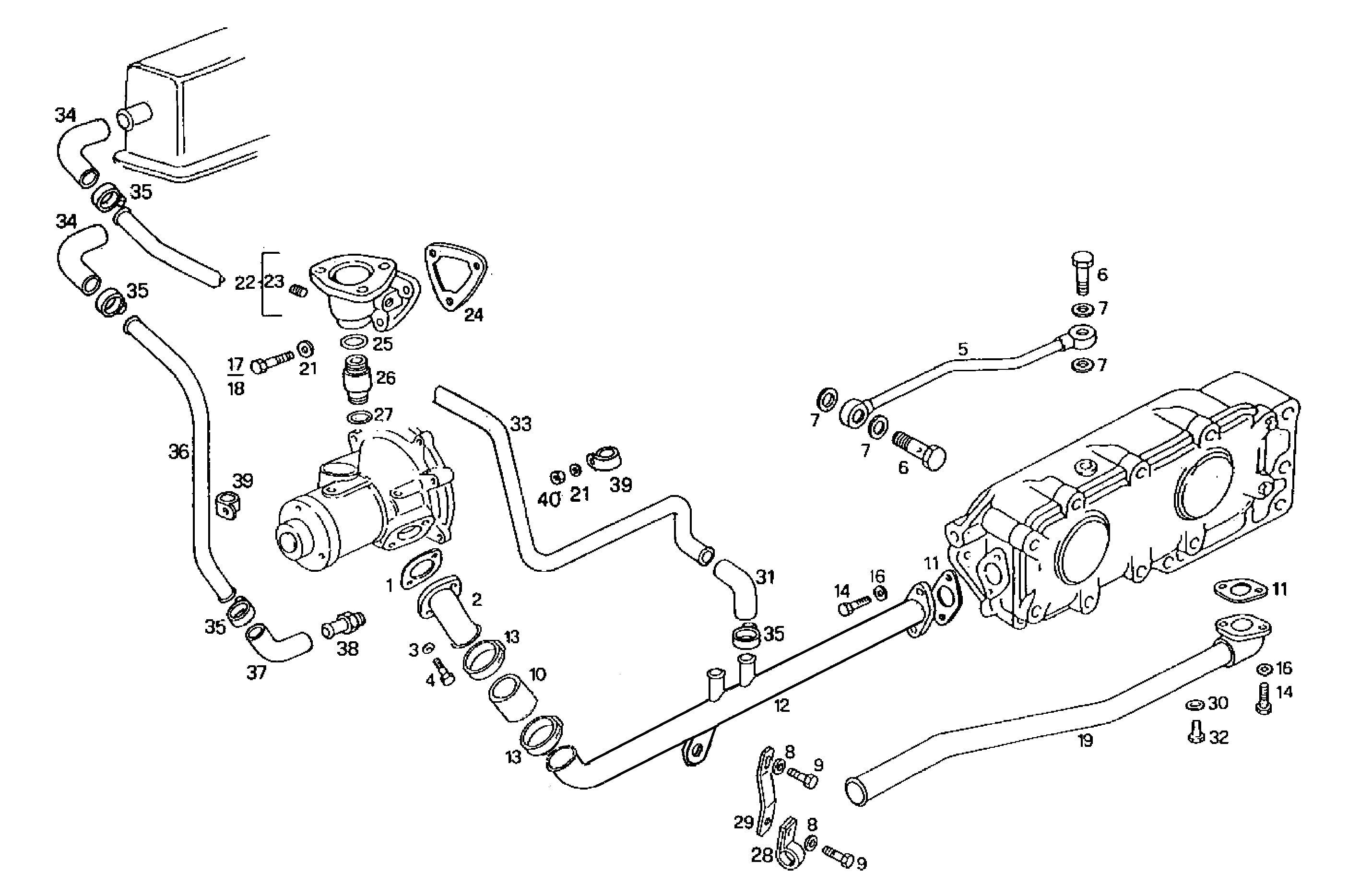

| Item |
Part number |
Description |
|
1 |
4852556 |
FLAT ENGINE GASKET |
|
2 |
4800147 |
PIPE |
|
3 |
17094911 |
WASHER Ø8X16X1,6 MM |
|
4 |
98401723 |
HEXAGON BOLT M8X1,25X12 MM |
|
5 |
99470277 |
WATER PIPE |
|
6 |
4864080 |
SCREW CONNECTOR M10X1,25 |
|
7 |
4858606 |
GASKET Ø10X14X1 MM |
|
8 |
17089974 |
SPRING WASHER Ø8X22X2,4MM |
|
9 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
10 |
98434881 |
WATER HOSE |
|
11 |
4779623 |
FLAT ENGINE GASKET |
|
12 |
8026819 |
WATER PIPE |
|
13 |
17764892 |
PIPE CLIP Ø40-60 MM |
|
14 |
16043521 |
SCREW M8X22 |
|
16 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
17 |
11234724 |
HEXAGON BOLT M10X1,25X45 MM |
|
18 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
|
19 |
8025517 |
WATER PIPE |
|
21 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
22 |
4823608 |
THERMOSTAT BODY ASSY [from 555948] |
|
23 |
16997611 |
THREADED PLUG M20X1,5 |
|
24 |
4851926 |
FLAT ENGINE GASKET |
|
25 |
17288681 |
O-RING Ø24,9 MM SP=3,5 MM |
|
26 |
98415712 |
PIPE SOCKET [from 657424] |
|
27 |
17282281 |
O-RING 2,62x23,47 |
|
28 |
8103077 |
CLIP |
|
29 |
8005101 |
RETAINER |
|
31 |
17738187 |
WATER HOSE |
|
32 |
16992140 |
PLUG M10X1 |
|
33 |
8026818 |
WATER PIPE |
|
34 |
98421373 |
RUBBER SLEEVE |
|
35 |
17764592 |
CLIP Ø20/32 MM |
|
36 |
8026817 |
WATER PIPE |
|
37 |
98421372 |
AIR HOSE |
|
38 |
4633506 |
THREADED UNION M22X1,5 |
|
39 |
4033229 |
CLIP |
|
40 |
17038221 |
HEXAGON NUT M10 |
