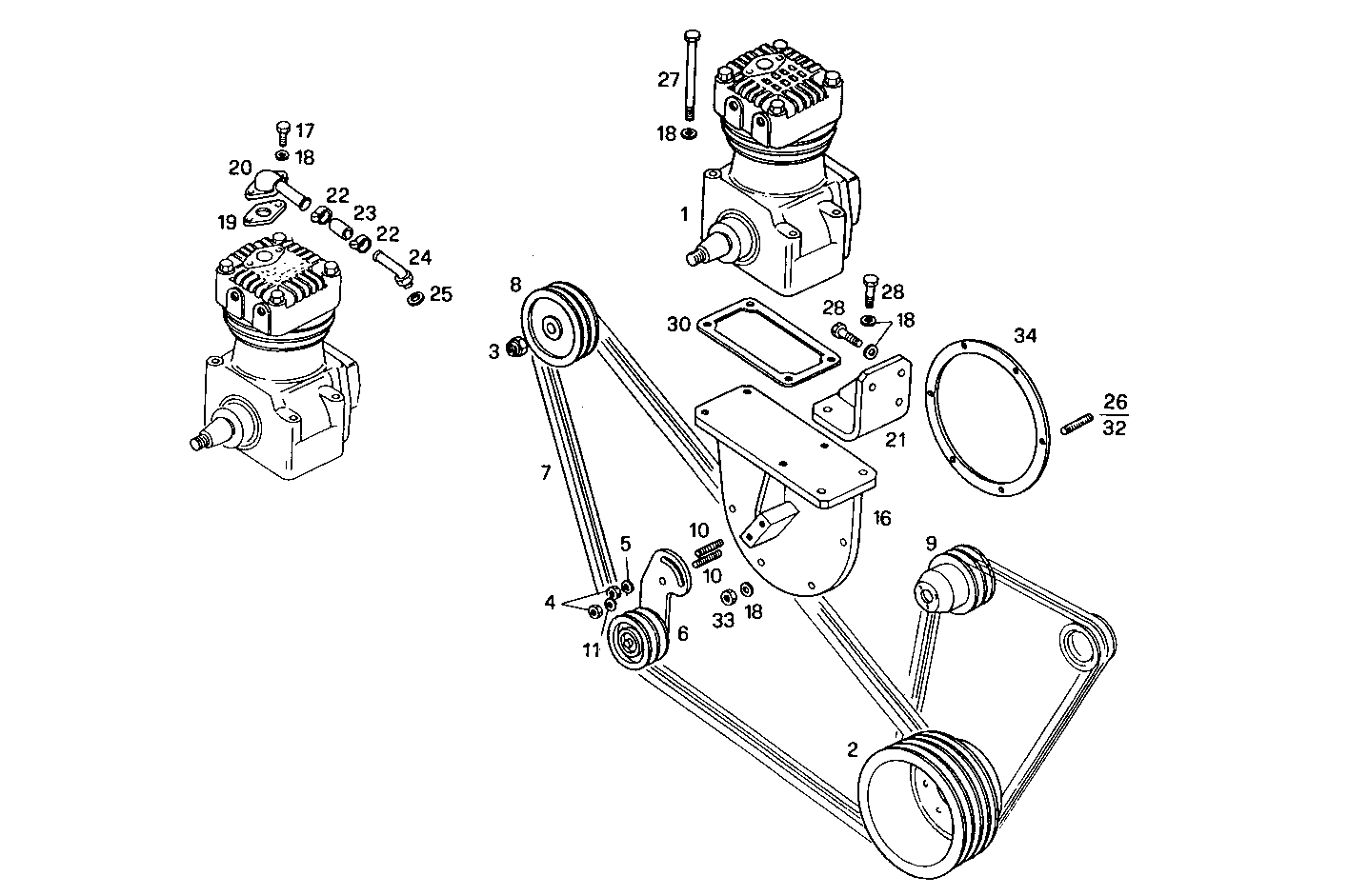

| Item |
Part number |
Description |
|
1 |
99440231 |
AIR COMPRESSOR ASSY BENDIX |
|
2 |
8104951 |
PULLEY |
|
3 |
17779421 |
NUT M18X1,5 |
|
4 |
17038221 |
HEXAGON NUT M10 |
|
5 |
4513436 |
SUPPORT RING Ø10X21X2 MM |
|
6 |
4803462 |
BELT TENSIONER ASSY |
|
7 |
4863028 |
SET OF V-BELTS KIT |
|
8 |
8007719 |
PULLEY |
|
9 |
8009572 |
PULLEY |
|
10 |
13449521 |
STUD M10X15X25 |
|
11 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
16 |
8007638 |
PLATE |
|
17 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
18 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
19 |
98418772 |
FLAT ENGINE GASKET |
|
20 |
8105060 |
CONNECTOR |
|
21 |
8007639 |
RETAINER |
|
22 |
17765091 |
CLIP Ø60/80 MM |
|
23 |
4930352 |
WATER HOSE |
|
24 |
4555394 |
ELBOW COUPLING |
|
25 |
98429281 |
SEAL GASKET Ø24X31 MM SP=1,5 MM |
|
26 |
16747724 |
STUD |
|
27 |
16606724 |
HEXAGON BOLT M8X90 MM |
|
28 |
15970621 |
SCREW M10X1,25X22 |
|
30 |
98400783 |
FLAT ENGINE GASKET |
|
32 |
16729524 |
STUD M8X1,25X30 |
|
33 |
17037931 |
HEXAGON NUT M8X1,25 |
|
34 |
98400781 |
FLAT ENGINE GASKET |
