8045SRE10.50

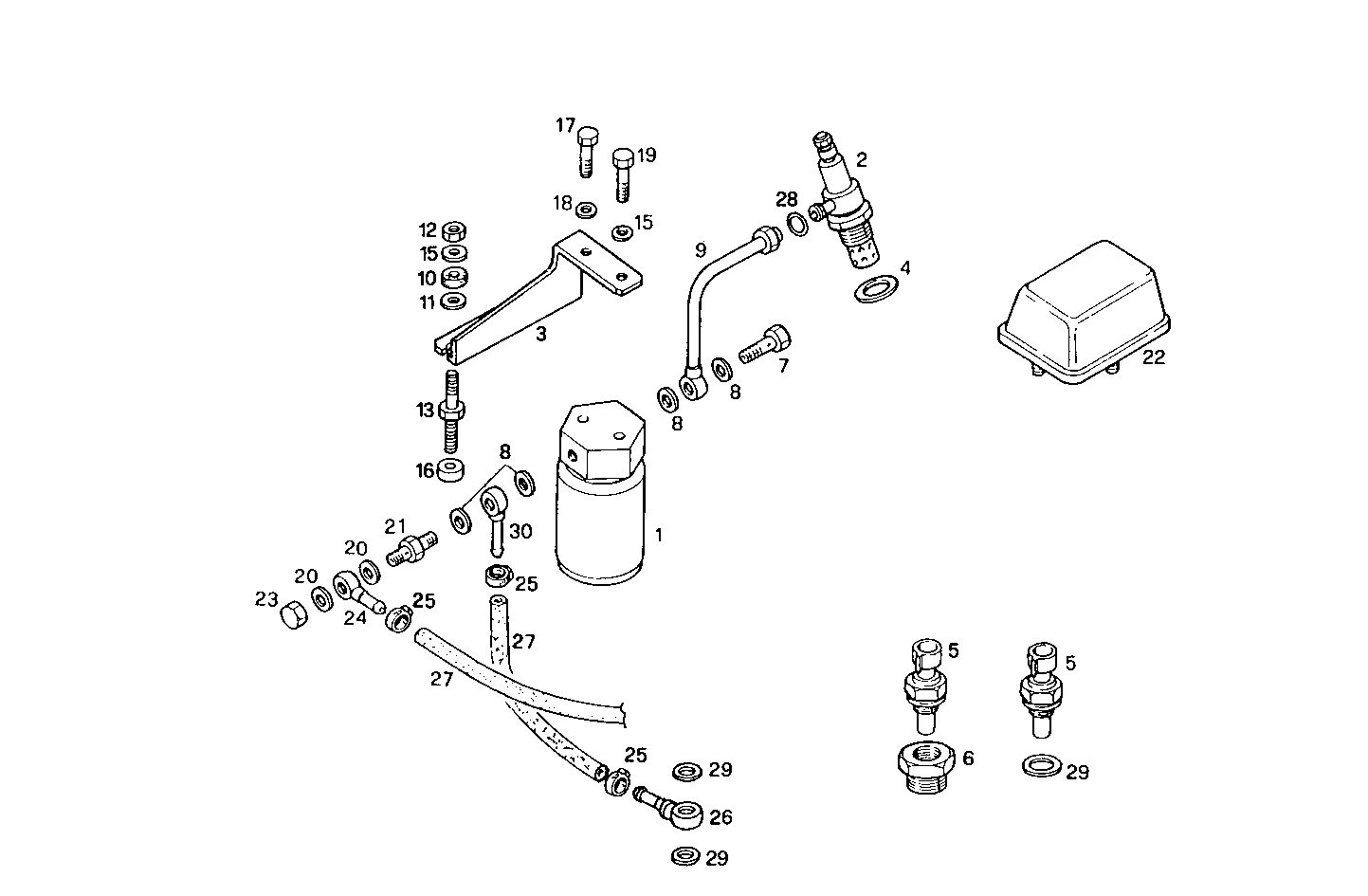

A20110012 THERMOSTARTER - 24V with electronic control unit

Iveco/FPT THERMOSTARTER

Item Part number Description
1 98494898 ELECT.V.VE.PREHEAT
2 99450392 THERMO-STARTER
3 8026856 SUPPORT
4 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
5 4857250 TRANSMITTER
6 4931480 PIPE SOCKET
7 4864079 SCREW CONNECTOR M10X1
8 98474305 WASHER Ø10X17 MM SP=2,3
9 8026875 FUEL LINE
10 4833816 INSULATING RING
11 10263701 WASHER
12 17037821 HEXAGON NUT M6X1
13 8026857 STUD
15 17088474 WASHER Ø6X12 MM
16 4833815 SPACING BAR
17 16602024 SCREW M5X12 MM (8.8)
18 11199279 SPRING WASHER Ø5X10X0,5 MM
19 16603524 SCREW M6X12 MM (8.8)
20 98474306 WASHER Ø12X20 MM SP=1,9 MM
21 98469450 BYPASS VALVE
22 99484737 ELECTR.CONTR.UNIT 24V PREHEATER CONTROL
23 98469675 THREADED PLUG M12X1
24 98433829 BANJO COUPLING [up to 1555507]
25 18087991 CLIP Ø8/16 MM
26 98416591 SWIVEL COUPLING
27 19056687 RUBBER HOSE Ø7,5 MM
28 8024645 O-RING Ø4 MM
29 4858608 SEAL GASKET dia.14x19,5x1,5
30 98405463 PIPE SOCKET
