8045SU00.50

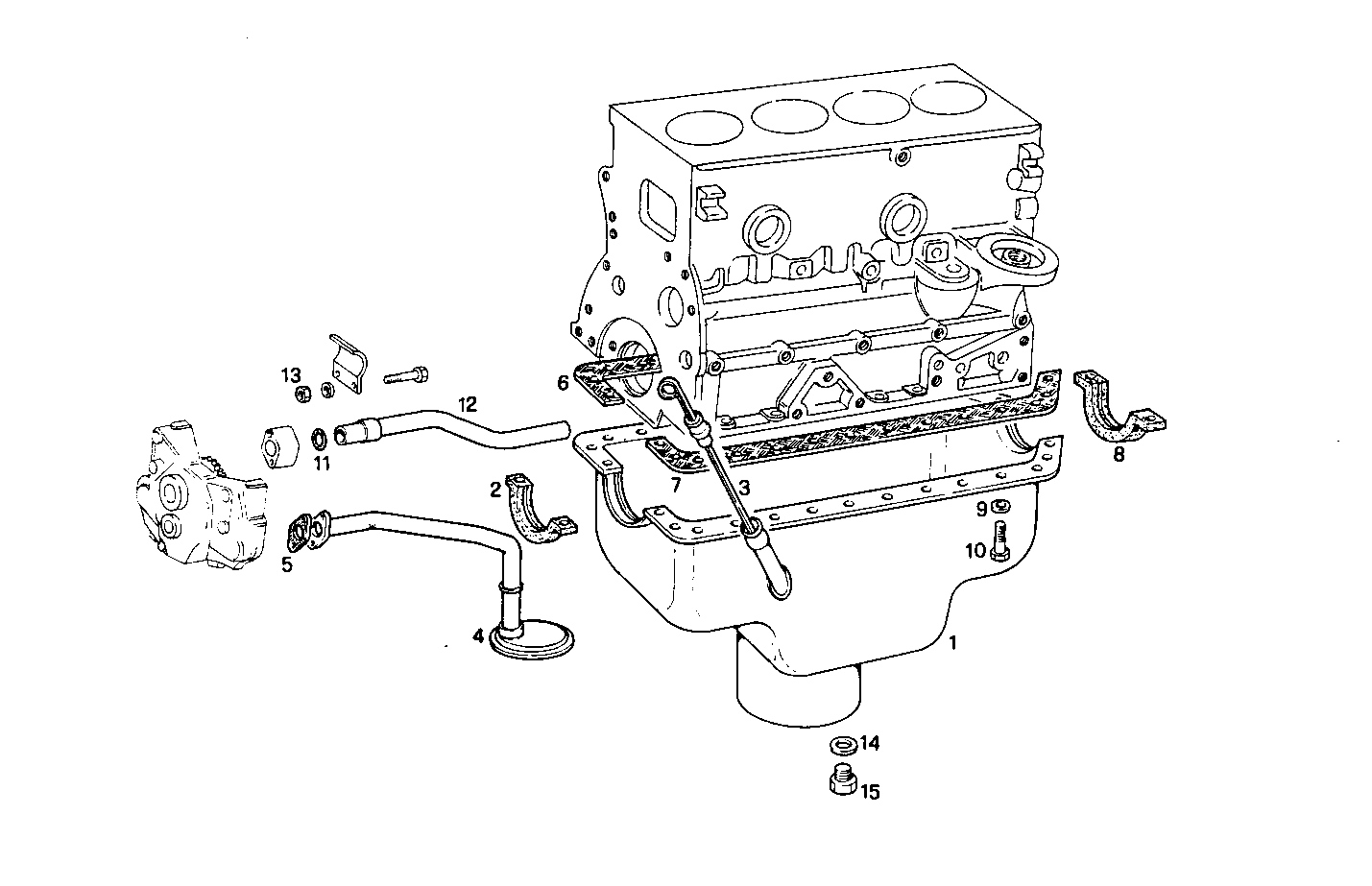

A01050005/01 OIL SUMP - max longitudinal inclination 45°
Item | Part number | Description |
---|---|---|
1 | 8110600 | OIL SUMP |
2 | 4031577 | OIL SUMP GASKET FRONT |
3 | 8110539 | OIL DIPSTICK |
4 | 8109506 | OIL LINE |
5 | 4617482 | FLAT ENGINE GASKET |
6 | 8014526 | OIL SUMP GASKET RIGHT |
7 | 8016136 | OIL SUMP GASKET LEFT |
8 | 4600753 | OIL SUMP GASKET REAR |
9 | 12638601 | WASHER Ø10X18 MM |
10 | 10923221 | HEXAGON BOLT M10X25 MM |
11 | 14457681 | O-RING Ø21,89 MM SP=2,62 MM |
12 | 4807944 | OIL LINE |
13 | 14048217 | HEXAGON NUT M8 |
14 | 10263460 | WASHER Ø22X28X1,5 MM |
15 | 10305111 | LOCK PLUG M22 |
