8045SU00.50

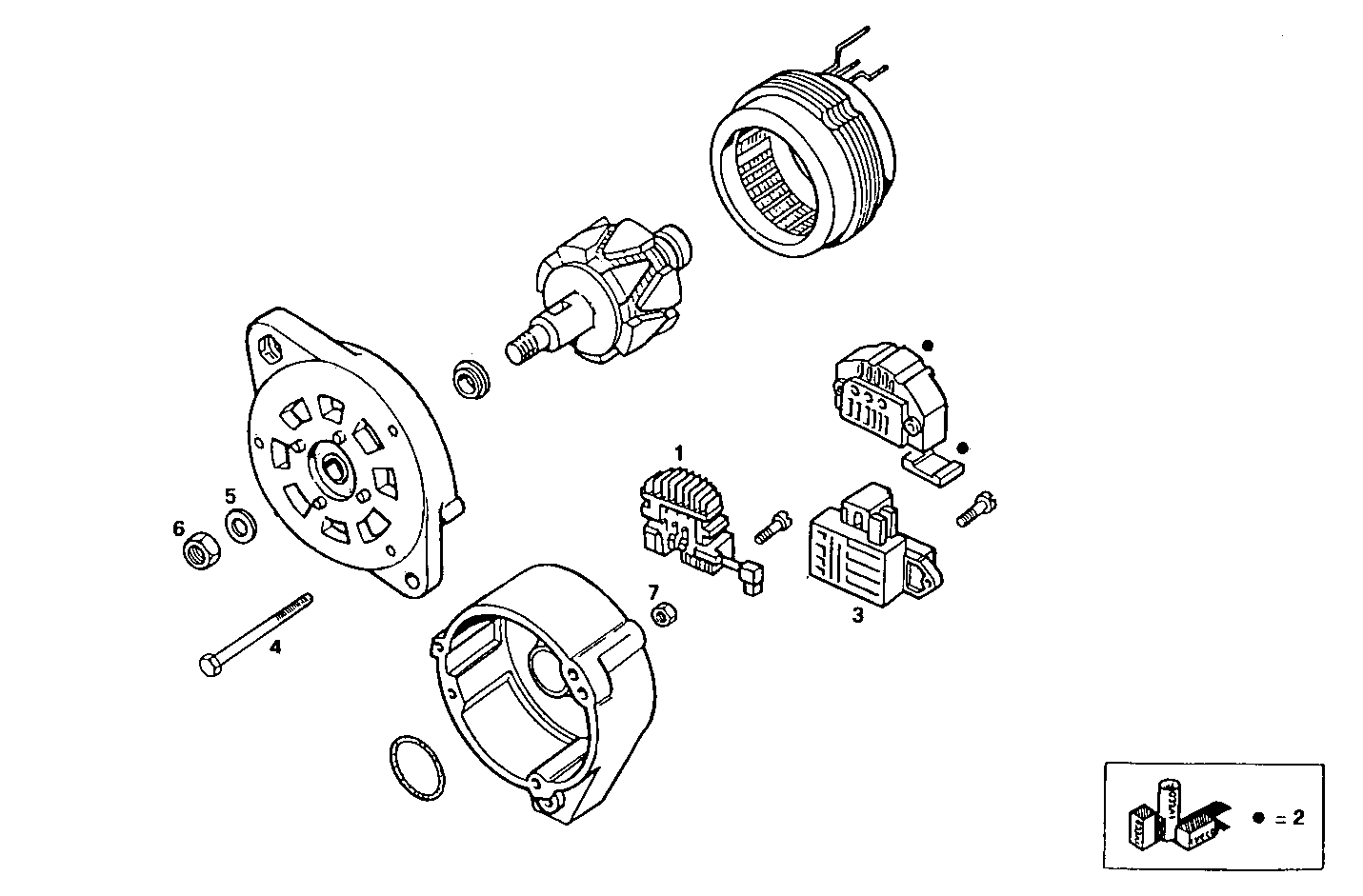

T1405003 ALTERNATOR - (components)
Item | Part number | Description |
---|---|---|
1 | 9940293 | RECTIFIER |
2 | 79083594 | KIT-GENERATOR |
3 | 93193292 | VOLTAGE REGULATOR MARELLI - 12V |
4 | 11030321 | HEXAGON BOLT M6X80 MM |
5 | 11200174 | WASHER Ø14X32 MM |
6 | 12164021 | HEXAGON NUT M14X1,5 |
7 | 12574221 | HEXAGON NUT M6 |
