8045SU00.50A001

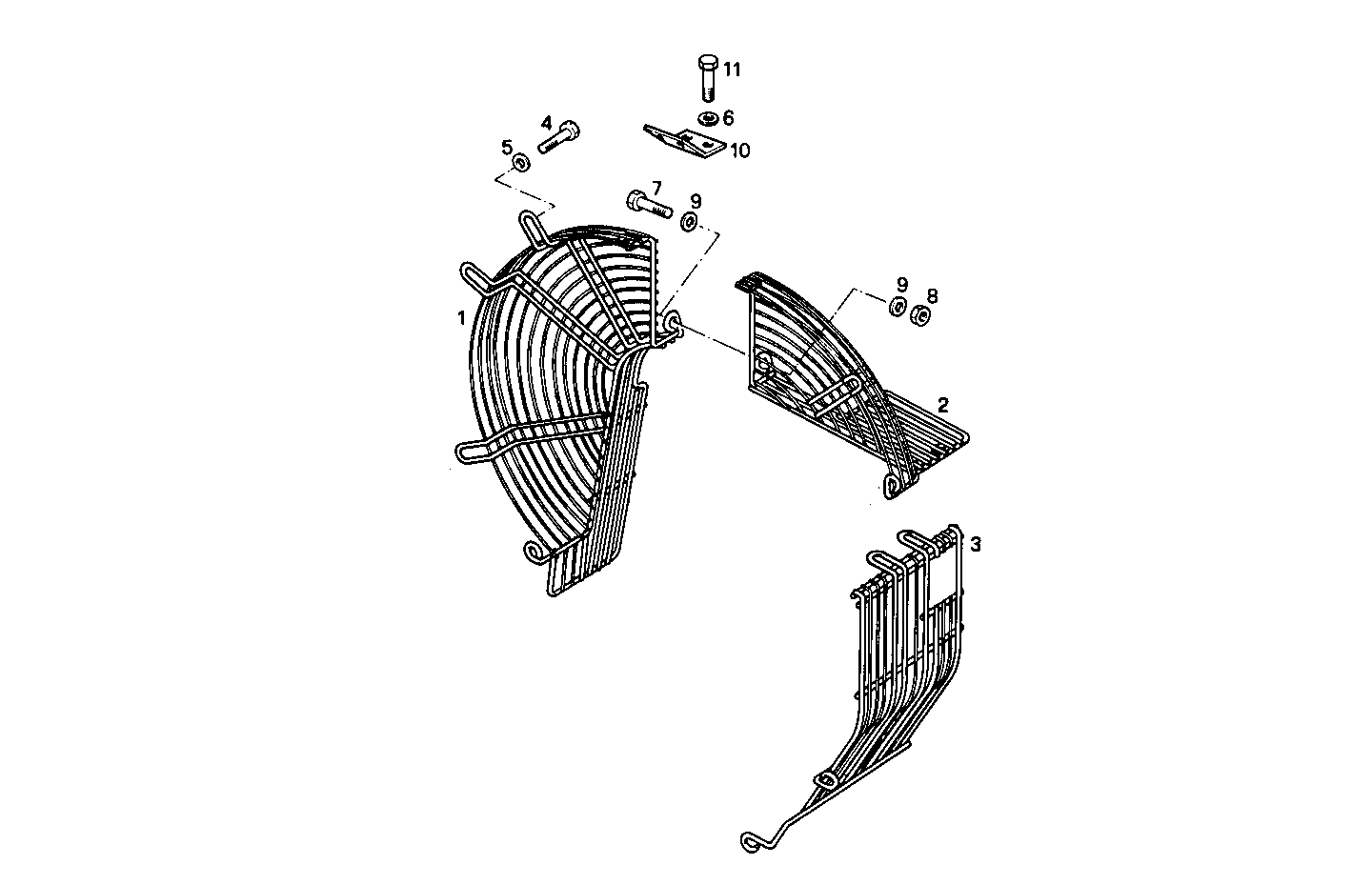

A48060003 GUARD - for fan and alternator
Item | Part number | Description |
---|---|---|
1 | 8008666 | PROTECTION |
2 | 8008665 | PROTECTION |
3 | 8008406 | PROTECTION |
4 | 16043421 | HEXAGON BOLT M8X20 MM |
5 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
6 | 17088474 | WASHER Ø6X12 MM |
7 | 16043621 | HEXAGON BOLT M8X25 MM |
8 | 17037931 | HEXAGON NUT M8X1,25 |
9 | 17089471 | SPRING WASHER Ø16X8 MM SP=1,4 MM |
10 | 8009471 | RETAINER |
11 | 10902421 | HEXAGON BOLT M6X20 MM |
