8045U00.00

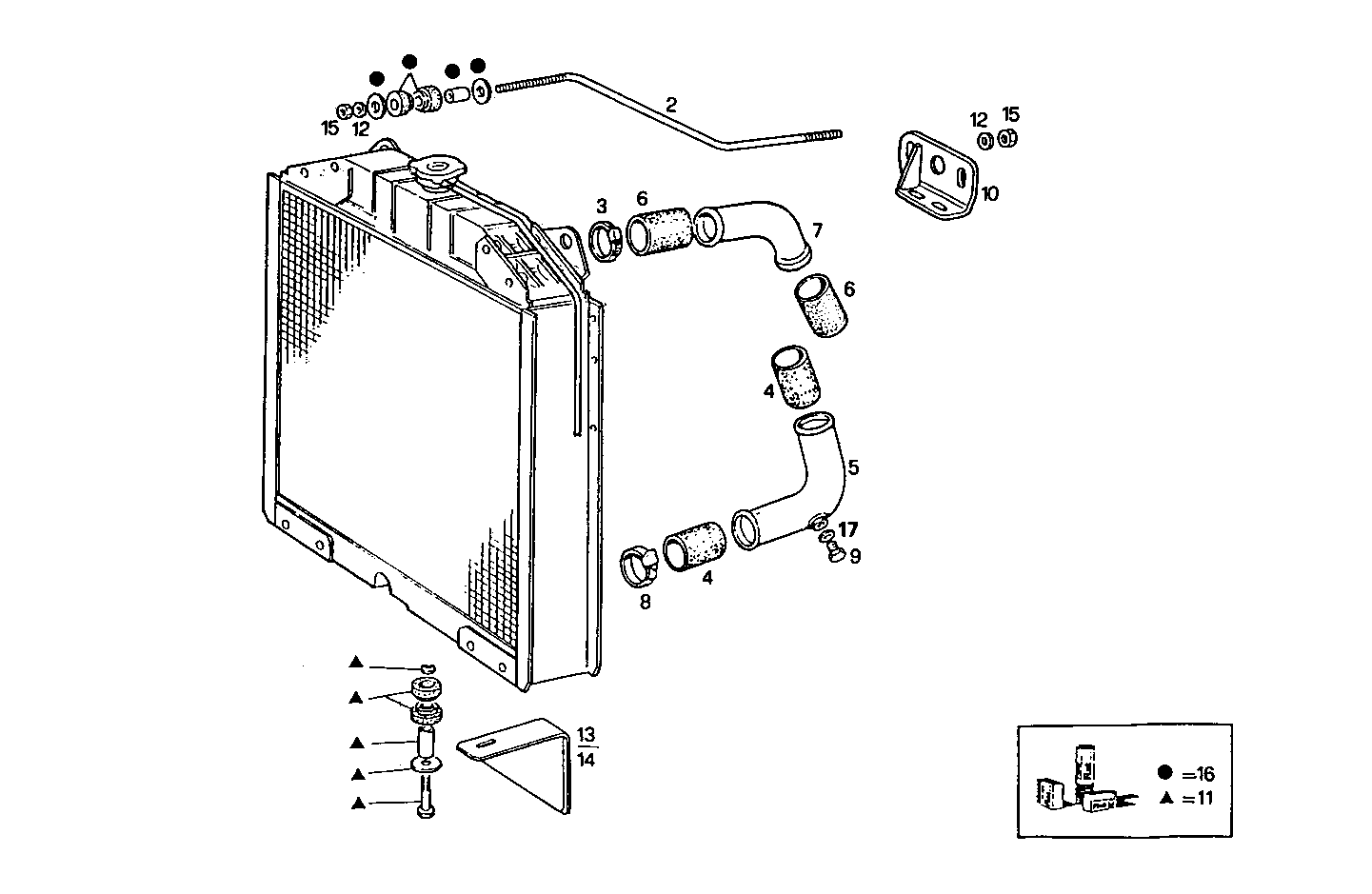

A22010051 RADIATOR FOR SETTING TILL MAX POWER - if compressor fitted
Item | Part number | Description |
---|---|---|
1 | 8008817 | WATER RADIATOR ASSY |
2 | 8025471 | TIE ROD |
3 | 17764891 | CLIP Ø40/60 MM |
4 | 17742887 | RUBBER SLEEVE |
5 | 8009199 | WATER PIPE |
6 | 4787630 | RUBBER SLEEVE |
7 | 8009198 | WATER PIPE |
8 | 17764791 | CLIP Ø32/50 MM |
9 | 16992111 | THREADED PLUG M10X1 |
10 | 8023950 | SUPPORT |
11 | 8090341 | KIT-RADIATOR A.S. COMPLETE |
12 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
13 | 8009201 | SUPPORT RIGHT |
14 | 8009200 | SUPPORT LEFT |
15 | 17038221 | HEXAGON NUT M10 |
16 | 8090413 | KIT-RADIATOR A.S. COMPLETE |
17 | 4858606 | GASKET Ø10X14X1 MM |
