8045U06.55

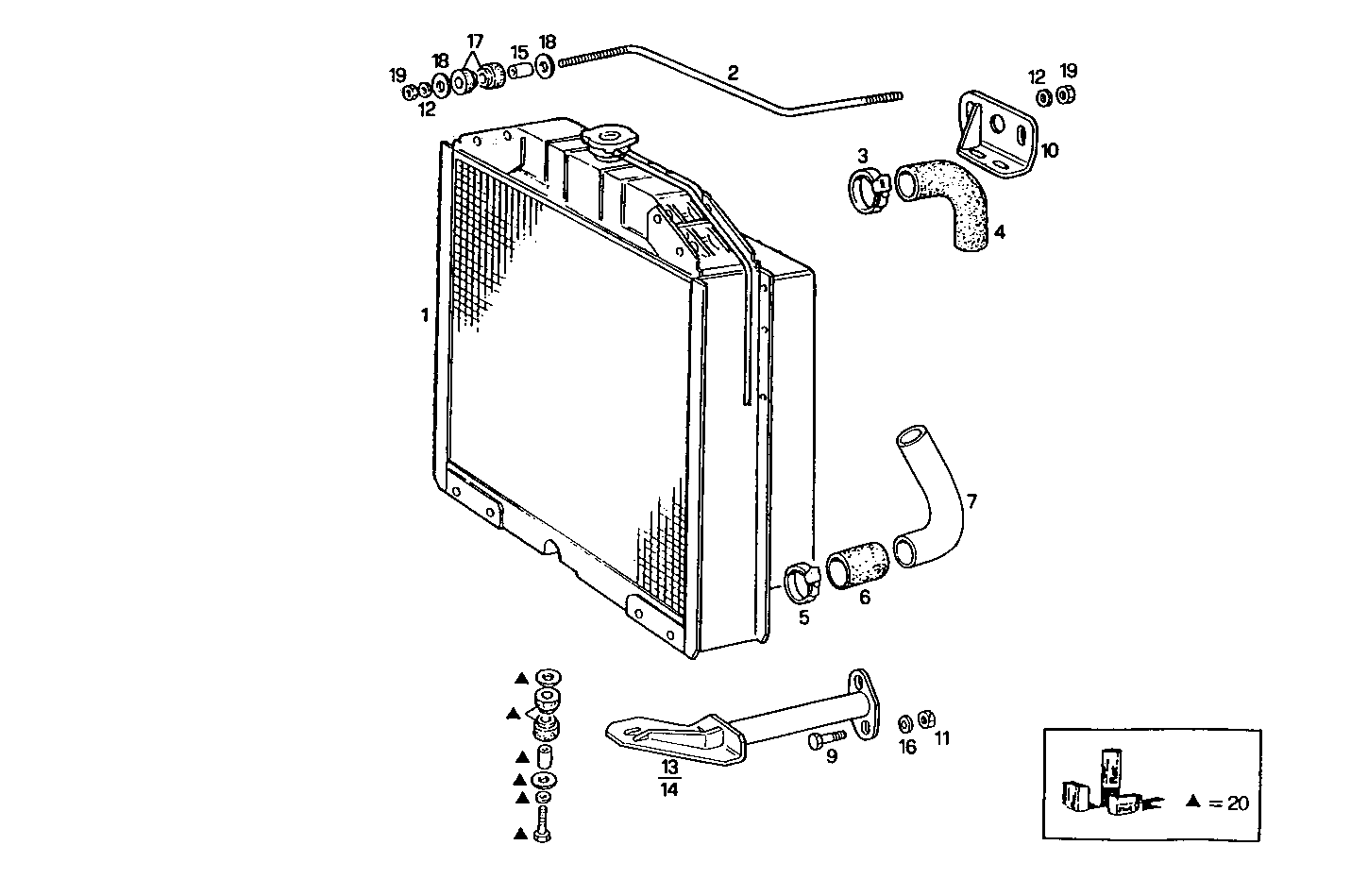

A22010047 RADIATOR FOR SETTING TILL MAX POWER
Item | Part number | Description |
---|---|---|
1 | 8008817 | WATER RADIATOR ASSY |
2 | 8023988 | TIE ROD |
3 | 17764891 | CLIP Ø40/60 MM |
4 | 8026743 | RUBBER SLEEVE |
5 | 17764791 | CLIP Ø32/50 MM |
6 | 596152 | RUBBER SLEEVE |
7 | 8077105 | WATER PIPE |
9 | 16612324 | HEXAGON BOLT M14X35 MM |
10 | 8023950 | SUPPORT |
11 | 17038221 | HEXAGON NUT M10 |
12 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
13 | 8030256 | SUPPORT RIGHT |
14 | 8030257 | SUPPORT LEFT |
15 | 8108634 | SPACING BAR |
16 | 17091674 | WASHER Ø14X27X3,0 MM |
17 | 741569 | RUBBER LUG |
18 | 741570 | WASHER Ø10X17 MM SP=2,3 |
19 | 17037931 | HEXAGON NUT M8X1,25 |
20 | 8090341 | KIT-RADIATOR A.S. COMPLETE |
