8045U06.55

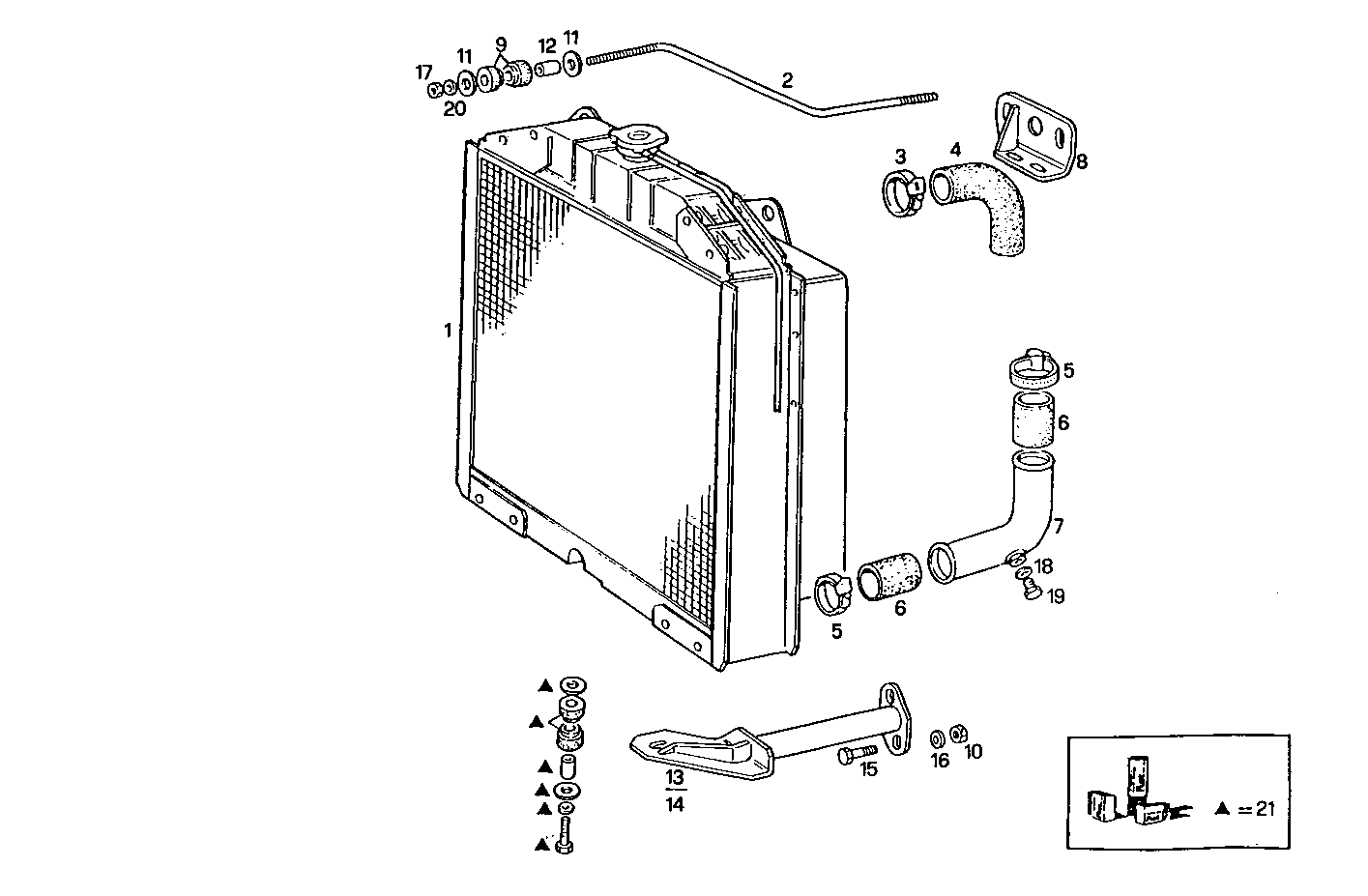

A22060019 OVERSIZE RADIATOR - reduced air circulation

Iveco/FPT OVERSIZE RADIATOR

Item Part number Description
1 8024529 WATER RADIATOR ASSY
2 8023968 TIE ROD
3 17764891 CLIP Ø40/60 MM
4 8028043 WATER HOSE
5 17764791 CLIP Ø32/50 MM
6 596152 RUBBER SLEEVE
7 8104865 WATER PIPE
8 8023950 SUPPORT
9 741569 RUBBER LUG
10 17038221 HEXAGON NUT M10
11 741570 WASHER Ø10X17 MM SP=2,3
12 8108634 SPACING BAR
13 8030258 SUPPORT RIGHT
14 8030259 SUPPORT LEFT
15 16612324 HEXAGON BOLT M14X35 MM
16 17091674 WASHER Ø14X27X3,0 MM
17 17037931 HEXAGON NUT M8X1,25
18 4858606 GASKET Ø10X14X1 MM
19 16992111 THREADED PLUG M10X1
20 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
21 8090341 KIT-RADIATOR A.S. COMPLETE
