8045U06.55A580

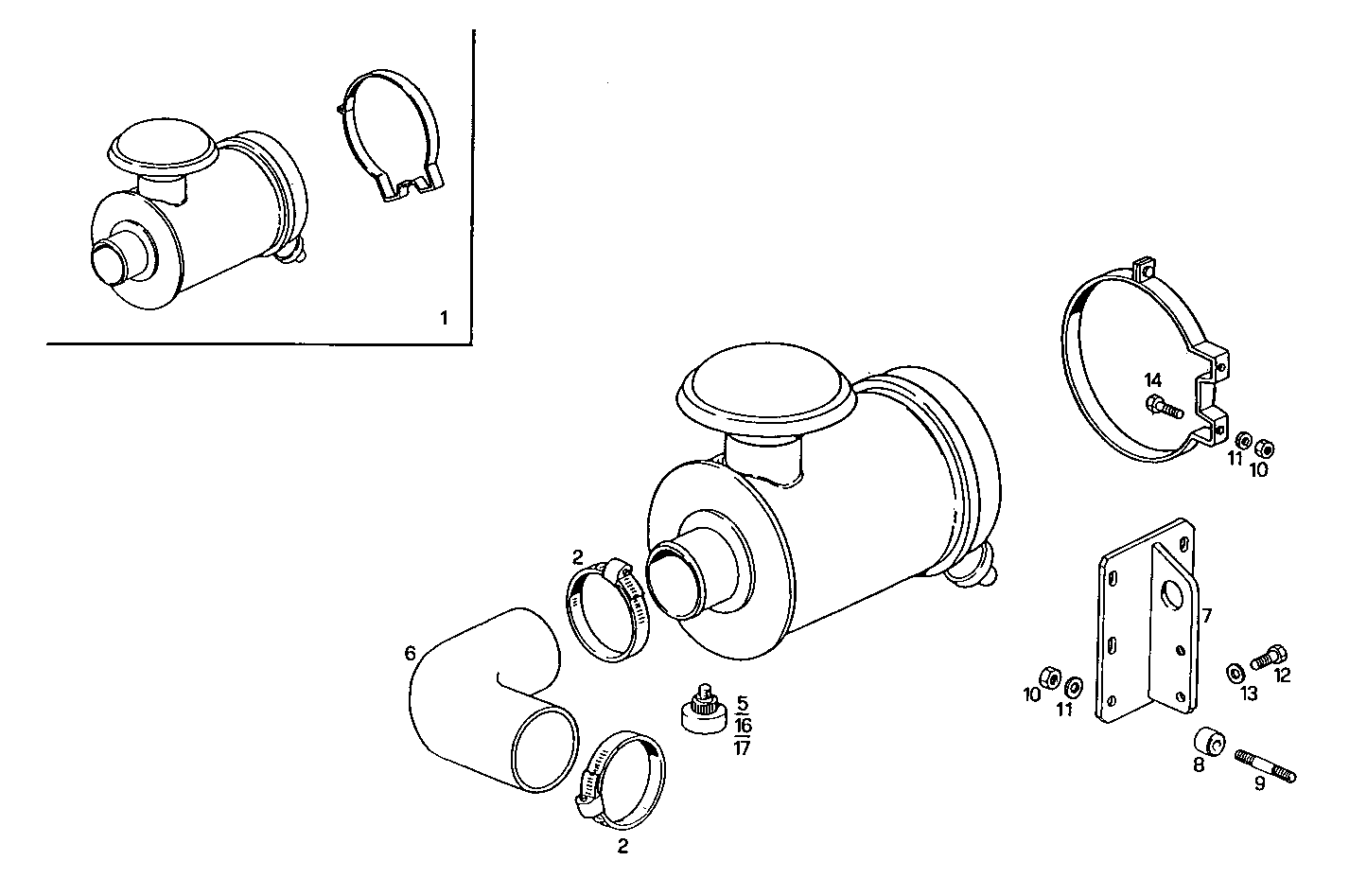

A21210059 DRY AIR CLEANER - with mechanical clogging gauge - genset
| Item | Part number | Description |
|---|---|---|
| 1 | 8013300 | AIR CLEANER ASSY |
| 2 | 17765091 | CLIP Ø60/80 MM |
| 5 | 4936137 | CHOCKED FILTER INDIC. MECHANICAL |
| 6 | 8102906 | RUBBER SLEEVE |
| 7 | 8024404 | SUPPORT |
| 8 | 8014718 | SPACING BAR |
| 9 | 16729724 | STUD M8X40 MM |
| 10 | 17037931 | HEXAGON NUT M8X1,25 |
| 11 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 12 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 13 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 14 | 16605524 | HEXAGON BOLT M8X20 MM |
| 16 | 8022540 | CHOCKED FILTER INDIC. MECHANICAL |
| 17 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
