8060.05.276

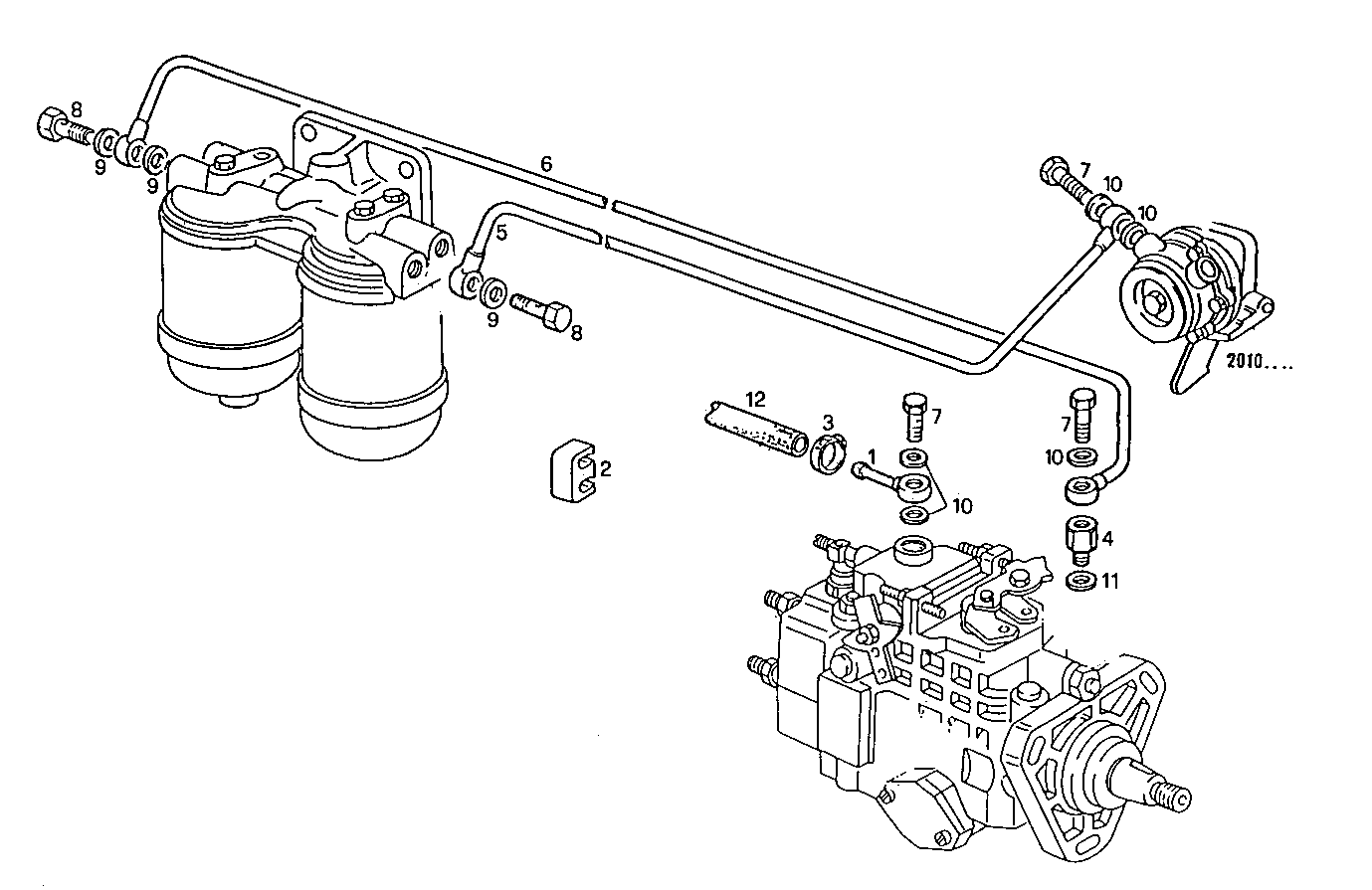

2030.095 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4789860 | BANJO COUPLING 1C [up to 31-08-02] |
| 2 | 4807808 | RETAINER |
| 3 | 18088192 | CLIP m10-16 |
| 4 | 4802434 | THREADED UNION M12X1,5 |
| 5 | 4801669 | FUEL LINE |
| 6 | 4801671 | FUEL LINE |
| 7 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 8 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 9 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 10 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 11 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 12 | 17724589 | FUEL LINE |
