8060.05.276

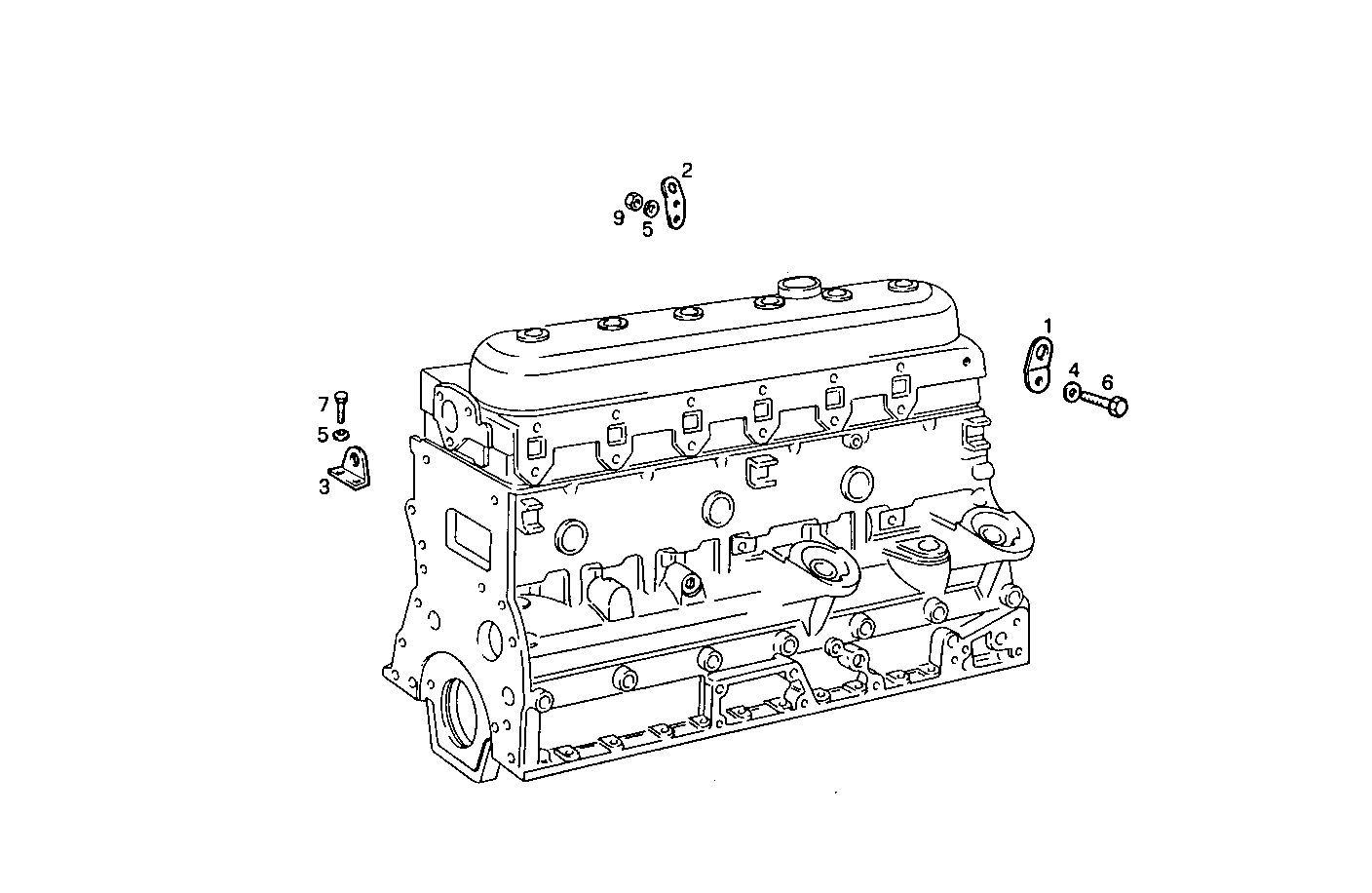

4500.068 ENGINE SUSPENSION
| Item | Part number | Description |
|---|---|---|
| 1 | 98439780 | HOOK REAR LEFT |
| 2 | 98439779 | HOOK REAR RIGHT |
| 3 | 4604104 | SHACKLE FRONT |
| 4 | 11190579 | SPRING WASHER Ø10X20 MM SP=2,3 |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 15970521 | HEXAGON BOLT M10X20 MM |
| 7 | 16043521 | SCREW M8X22 |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
