8060SM21.10

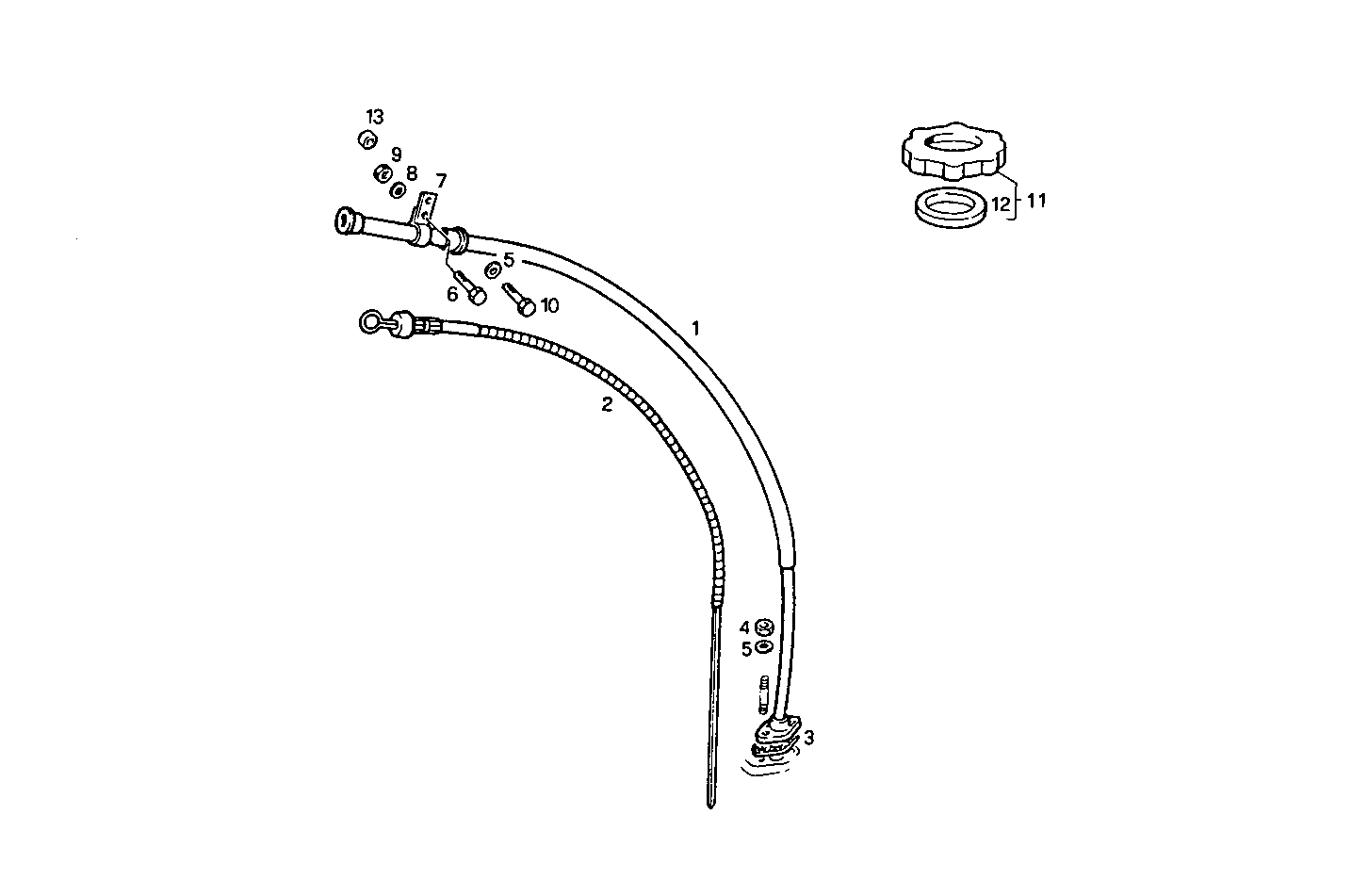

2710.103 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 8006370 | ROD GUIDE |
| 2 | 8006372 | OIL DIPSTICK |
| 3 | 98418621 | GASKET |
| 4 | 17037931 | HEXAGON NUT M8X1,25 |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 7 | 4930515 | CLIP |
| 8 | 17088474 | WASHER Ø6X12 MM |
| 9 | 15896211 | HEXAGON NUT M6 |
| 10 | 16605524 | HEXAGON BOLT M8X20 MM |
| 11 | 4232606 | OIL FILLER PLUG ASSY |
| 12 | 98418978 | GASKET |
| 13 | 8022903 | SPACING BAR |
