8060SRC20.01

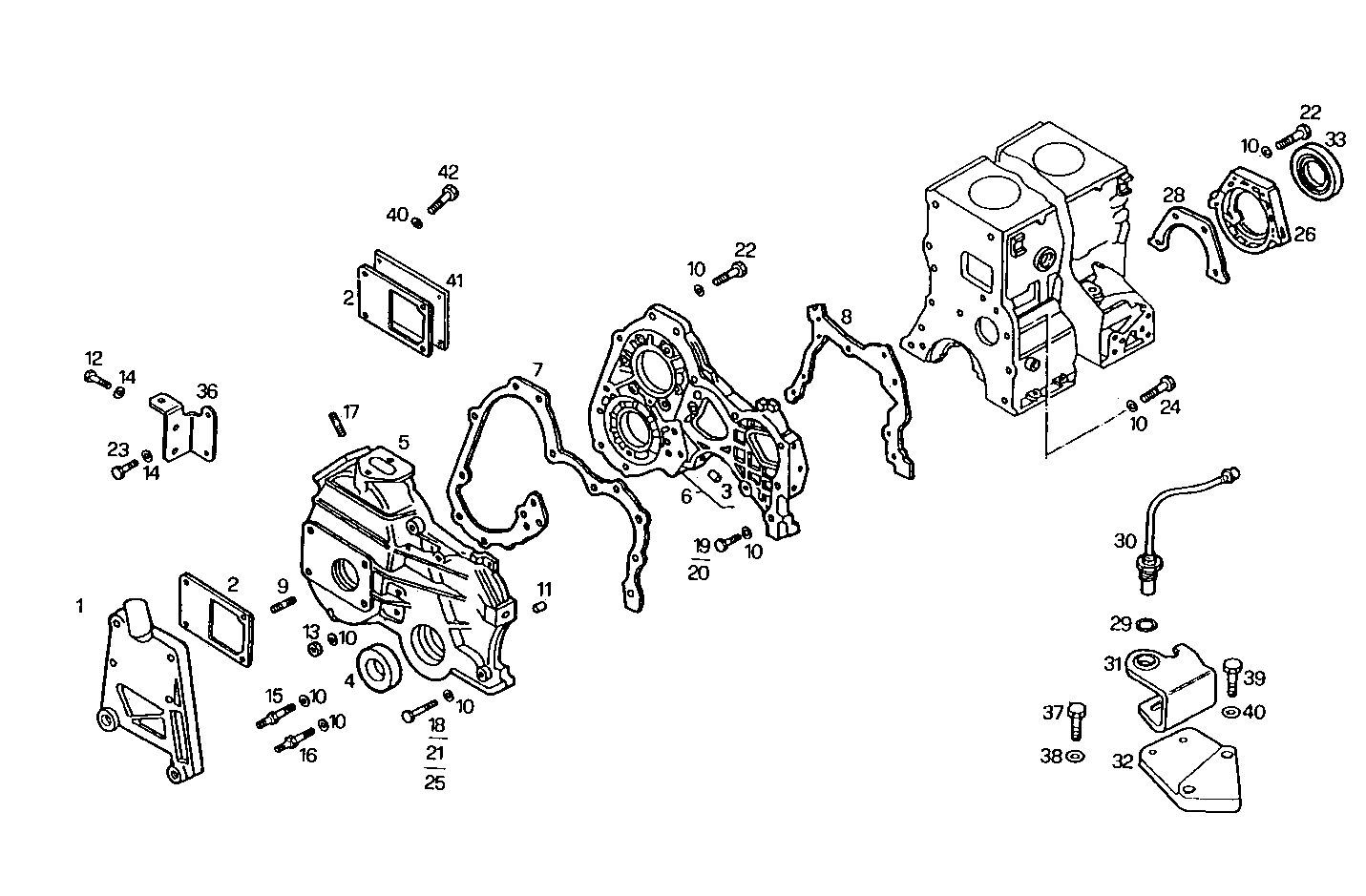

0430.158 INSERTED BOX ASSEM.
| Item | Part number | Description |
|---|---|---|
| 1 | 98482458 | COVER |
| 2 | 98486662 | FLAT ENGINE GASKET |
| 3 | 4605220 | OIL NOZZLE |
| 4 | 99469265 | SHAFT SEAL CORCOS |
| 5 | 4848237 | FRONT C.CASE COVER ASSY |
| 6 | 500321670 | TIMINGGEAR HOUSIN ASSY REAR |
| 7 | 98424045 | FLAT ENGINE GASKET |
| 8 | 98424046 | FLAT ENGINE GASKET |
| 9 | 16746824 | STUD M8X30 MM (8.8) |
| 10 | 17094914 | WASHER 8x16 |
| 11 | 17275410 | DOWEL PIN Ø8 MM |
| 12 | 16603824 | SCREW M6X25 |
| 13 | 17037931 | HEXAGON NUT M8X1,25 |
| 14 | 17088574 | WASHER Ø6X12 MM |
| 15 | 4848314 | HEXAGON BOLT L=110 MM |
| 16 | 4848315 | HEXAGON BOLT L=79 MM |
| 17 | 16729324 | STUD M8X12X20 MM |
| 18 | 16044924 | SCREW M8X1,25X85 MM |
| 19 | 16605734 | HEXAGON BOLT M8X30 MM |
| 20 | 16043524 | SCREW M8X22 MM |
| 21 | 16606124 | HEXAGON BOLT M8X50 MM |
| 22 | 16605824 | HEXAGON BOLT M8X35 MM |
| 23 | 16603934 | HEXAGON BOLT M6X30 MM |
| 24 | 16606524 | HEXAGON BOLT M8X70 MM |
| 25 | 16606224 | HEXAGON BOLT M8X55 MM |
| 26 | 98489586 | REAR C.CASE COVER |
| 28 | 4849994 | FLAT ENGINE GASKET |
| 29 | 4860432 | RING |
| 30 | 4861291 | TRANSMITTER |
| 31 | 4843857 | SUPPORT |
| 32 | 4854020 | SUPPORT |
| 33 | 99457401 | SHAFT SEAL CORCOS |
| 36 | 98482544 | RETAINER [from 688336] |
| 37 | 11306921 | SCREW M10X1,25X30 |
| 38 | 17095104 | WASHER Ø10X21X2 MM |
| 39 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 40 | 17088474 | WASHER Ø6X12 MM |
| 41 | 564530 | COVER |
| 42 | 10902324 | SCREW M6X18 MM |
