8060SRC20.01

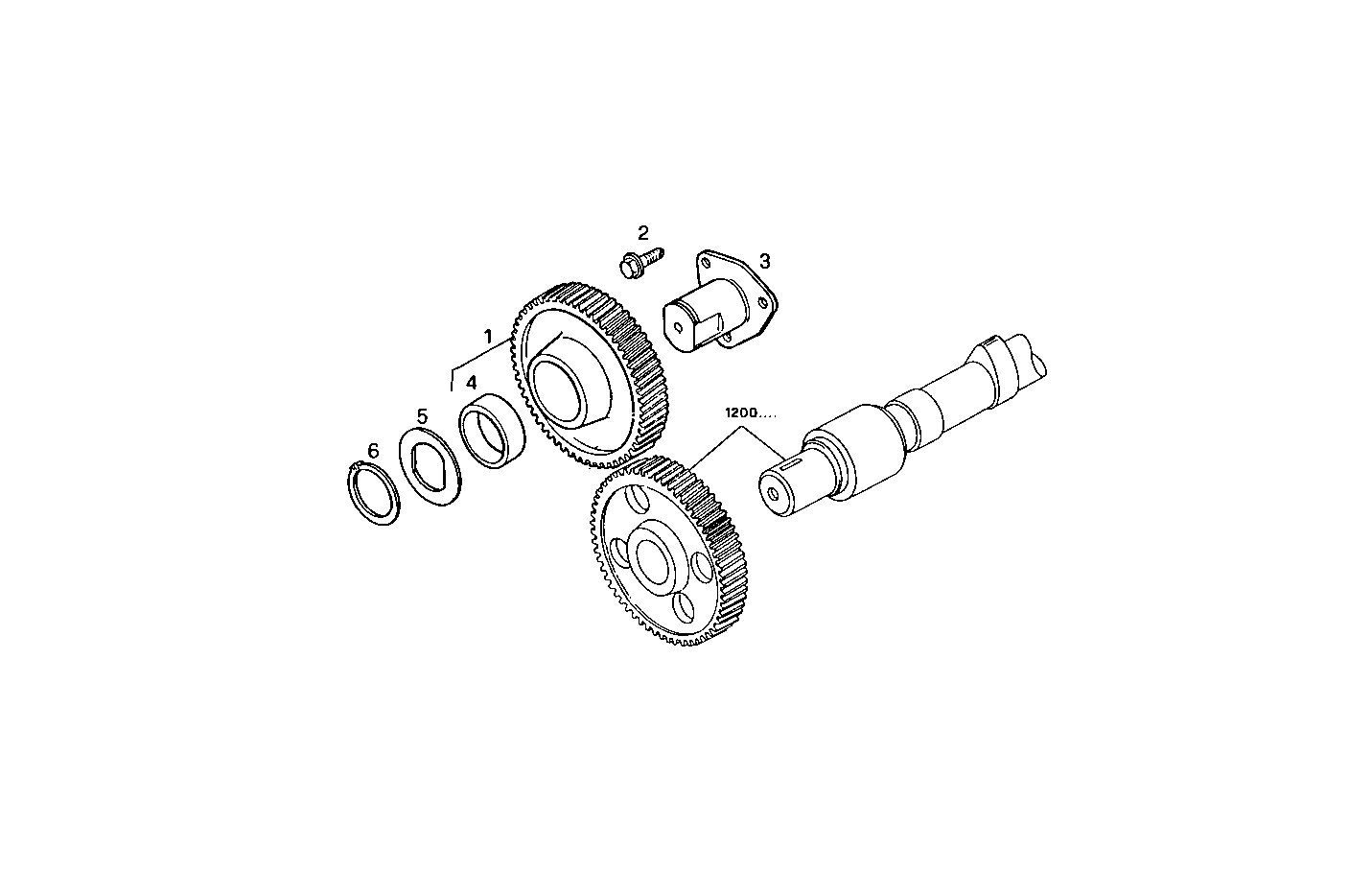

1000.084 GEAR DRIVE [D ...] [from...]
Item | Part number | Description |
---|---|---|
1 | 500358962 | CAMSHAFT PINION ASSY |
2 | 98413884 | HEXAGON BOLT M10X1,25X26 MM |
3 | 98414013 | GUIDE BOLT |
4 | 98428924 | BUSH VANDERVELL |
5 | 4848377 | WASHER |
6 | 4848378 | SPRING LOCKWASHER |
