8060SRC20.01

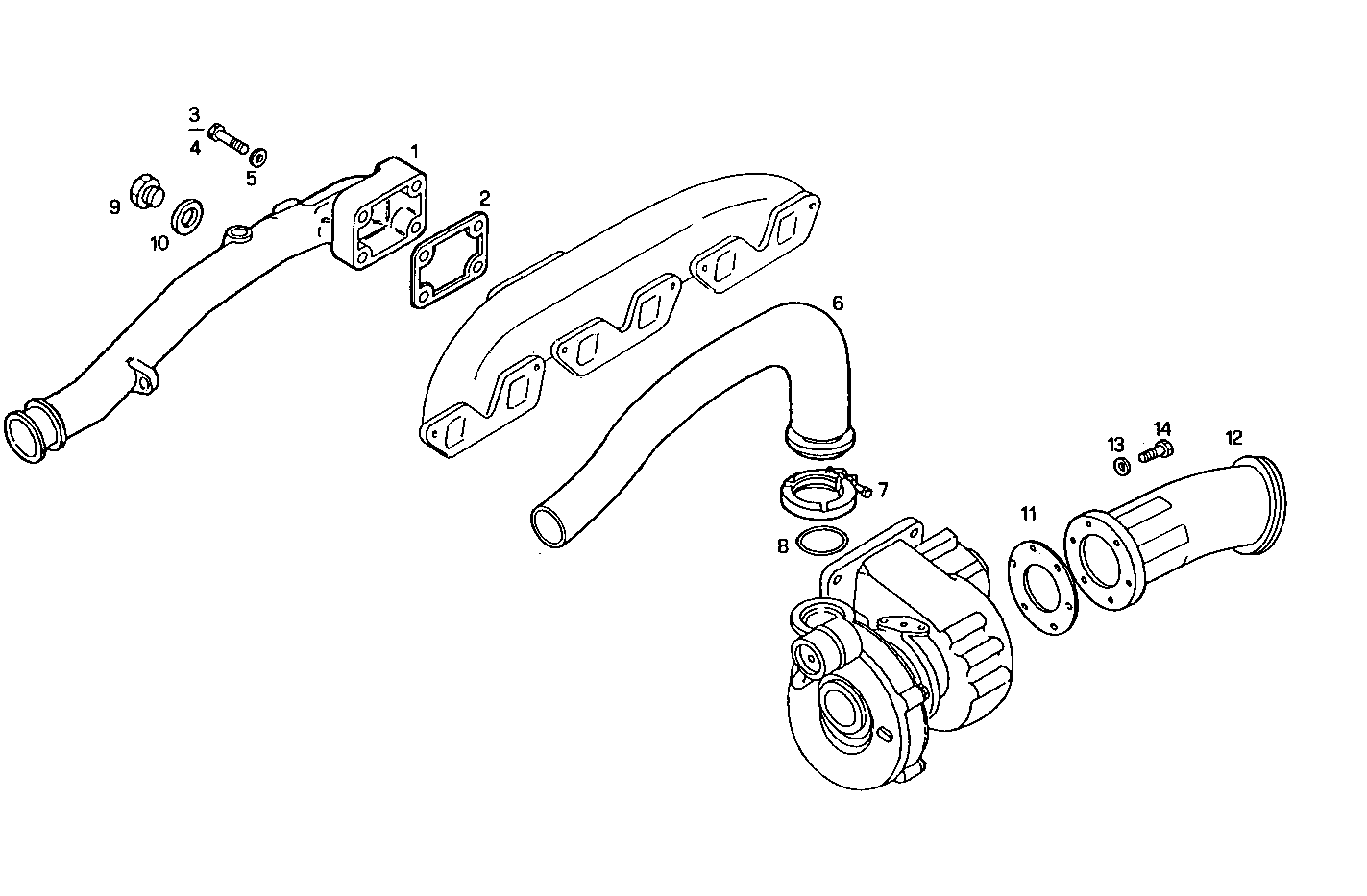

2420.110 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 99436521 SUCTION LINE
2 99436925 FLAT ENGINE GASKET Ø50 MM
3 11343724 HEXAGON BOLT M10X70 MM
4 15971824 SCREW M10X1,25X100
5 17095101 WASHER Ø10X18 MM
6 4850068 AIR PIPE/DUCT
7 4843862 CLIP Ø50/70 MM
8 17283481 O-RING Ø42,5 MM SP=2,6 MM
9 10276711 THREADED PLUG M35
10 10265160 SEAL GASKET Ø35,3 MM
11 98428398 FLAT ENGINE GASKET
12 98414437 MANIFOLD
13 98415215 WASHER Ø10X20X2,3 MM
14 98490833 HEXAGON BOLT M8X1,25X30 MM
