8060SRC20.01

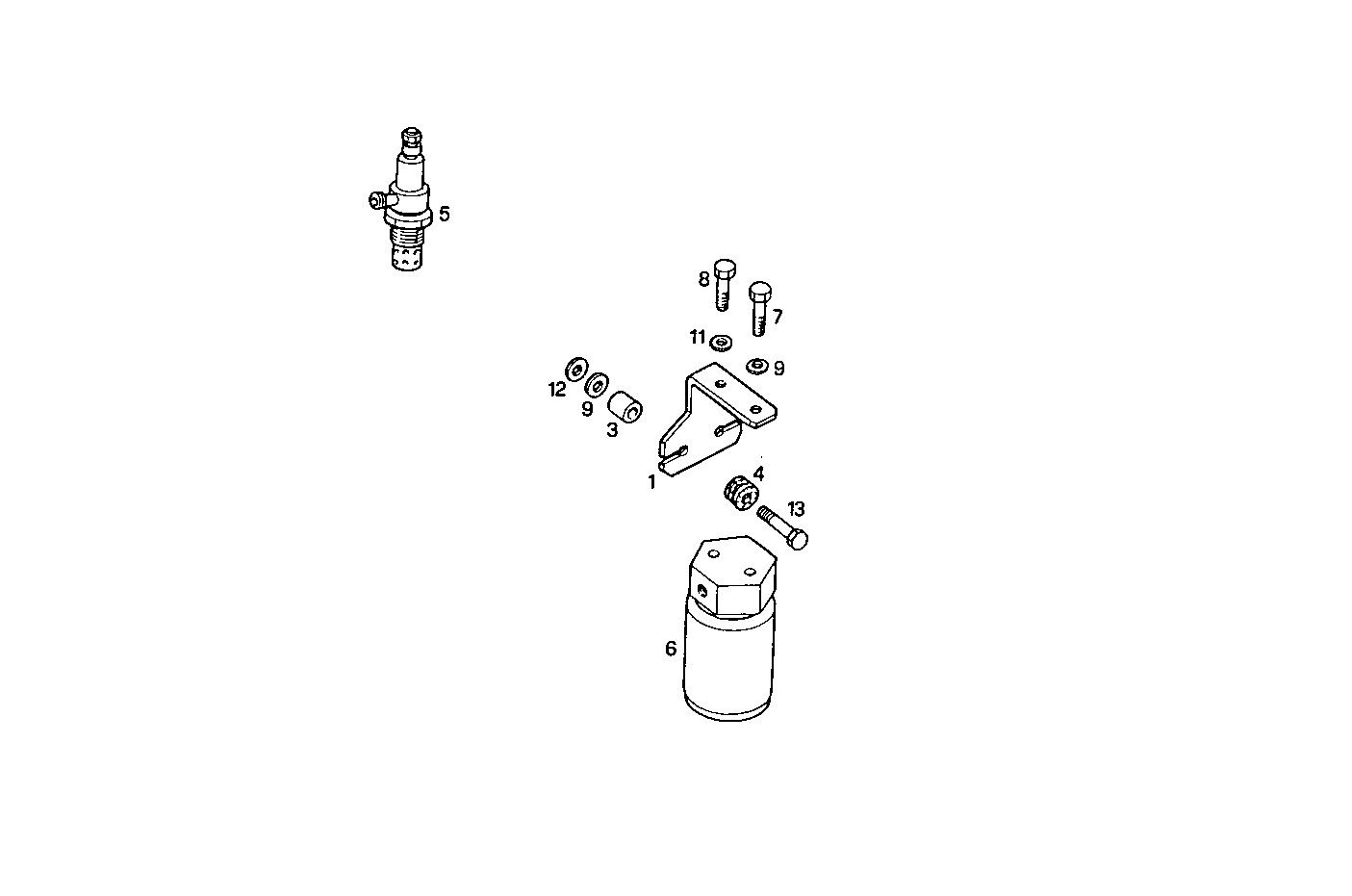

3650.018 THERMO-STARTER
| Item | Part number | Description |
|---|---|---|
| 1 | 99454282 | RETAINER |
| 3 | 4833815 | SPACING BAR |
| 4 | 4833816 | INSULATING RING |
| 5 | 99450393 | THERMO-STARTER |
| 6 | 98494898 | ELECT.V.VE.PREHEAT |
| 7 | 16603521 | SCREW M6X12 |
| 8 | 16602021 | SCREW M5X12 |
| 9 | 17088471 | SPRING WASHER Ø6X12 MM SP=1,2 MM |
| 11 | 11199279 | SPRING WASHER Ø5X10X0,5 MM |
| 12 | 12643701 | WASHER Ø6X18 MM |
| 13 | 16603724 | HEXAGON BOLT M6X20 MM (8.8) |
