8060SRC20.01

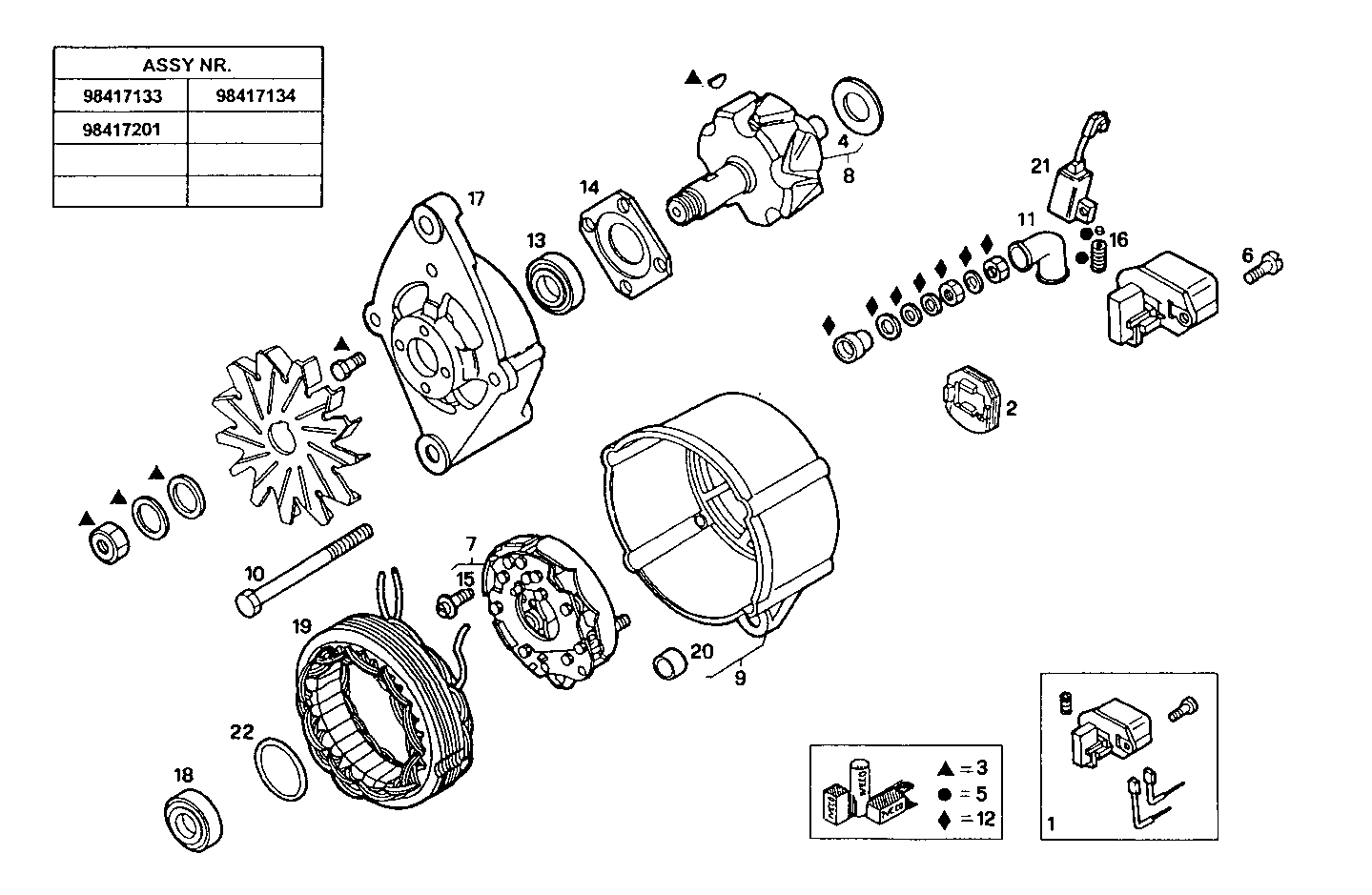

4030.020 GENERATOR (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 93158421 | VOLTAGE REGULATOR ASSY 24V - BOSCH |
| 2 | 93160245 | GASKET M6X12 MM |
| 3 | 1307188 | KIT-GENERATOR KIT |
| 4 | 79078921 | RING SP=0,5 MM |
| 5 | 93160236 | CARBON BRUSHES M6X12 MM |
| 6 | 93160239 | SCREW |
| 7 | 79078926 | RECTIFIER ASSY |
| 8 | 93160235 | GENERATOR ROTOR ASSY |
| 9 | 93160238 | GENERATOR SUPPORT ASSY |
| 10 | 93160237 | SCREW |
| 11 | 79078925 | CAP SP=0,5 MM |
| 12 | 93161165 | KIT-GENERATOR |
| 13 | 1905280 | BALL BEARING |
| 14 | 93155633 | PLATE SP=0,5 MM |
| 15 | 79093985 | SCREW |
| 16 | 42491524 | SPRING |
| 17 | 79022466 | GENERATOR SUPPORT |
| 19 | 93160234 | GENERATOR STATOR |
| 20 | 9960120 | BUSH |
| 21 | 79022480 | CONDENSER |
| 22 | 79025494 | O-RING |
