8060SRC20.01

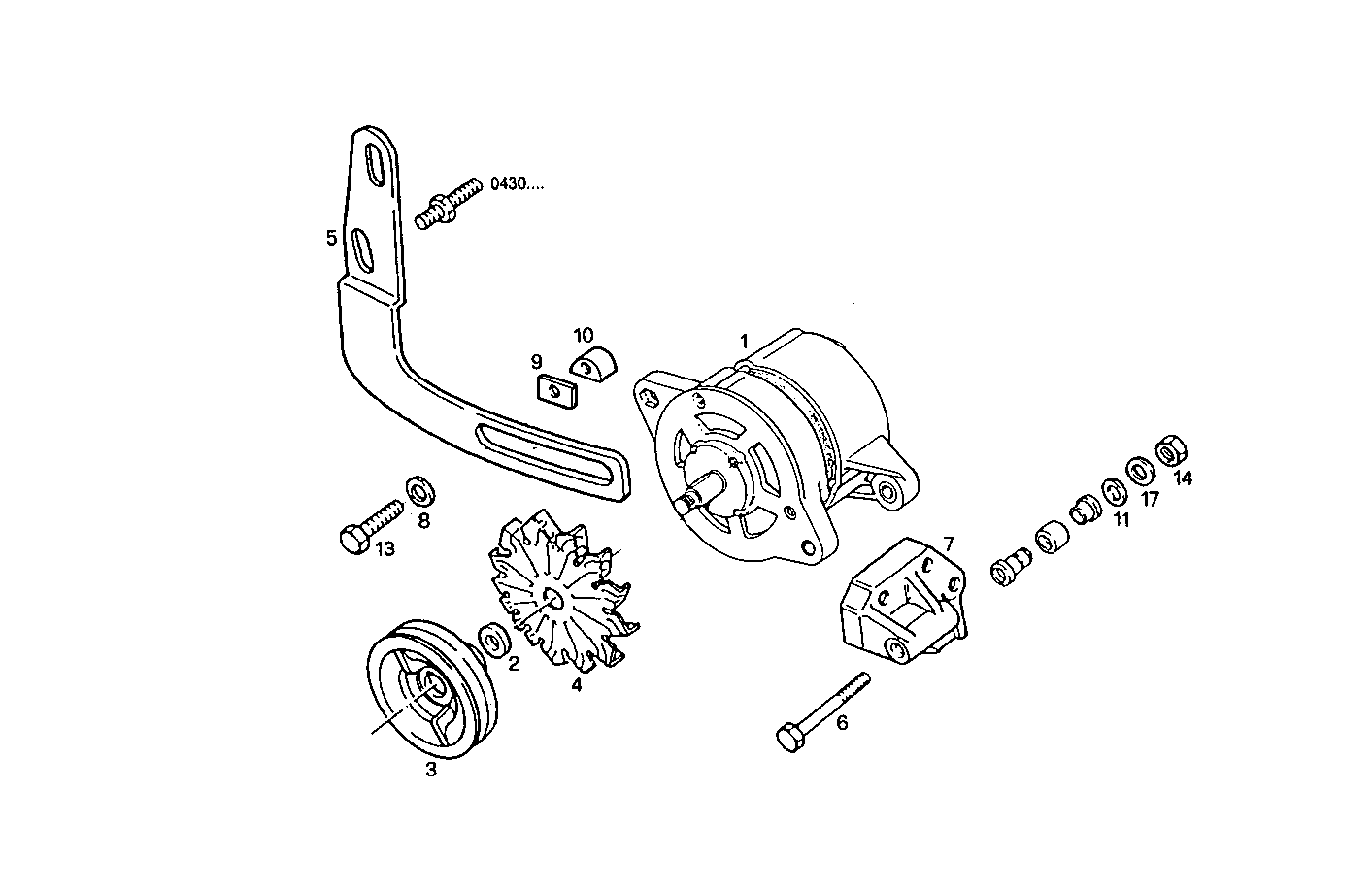

A14010008 SELF-REGULATED ALTERNATOR - 24V 80A (W)
| Item | Part number | Description |
|---|---|---|
| 1 | 98424748 | ALTERNATOR ASSY 28V 80A BOSCH |
| 2 | 98454596 | SPACING BAR BOSCH |
| 3 | 98418918 | GENERATOR PULLEY |
| 4 | 4757196 | GENERATOR FAN BOSCH |
| 5 | 98435667 | BELT TENSIONER |
| 6 | 15972421 | HEXAGON BOLT M10X1,25X130 MM |
| 7 | 98435661 | SUPPORT |
| 8 | 17095004 | WASHER Ø10X18X2 MM |
| 9 | 98424121 | LOCKING PLATE |
| 10 | 98424122 | SPACING BAR |
| 11 | 17095104 | WASHER Ø10X21X2 MM |
| 13 | 11343821 | HEXAGON BOLT M10X1,25X50 MM |
| 14 | 17038221 | HEXAGON NUT M10 |
| 17 | 17090174 | SPRING WASHER Ø10X20 MM |
