8060SRC21.20

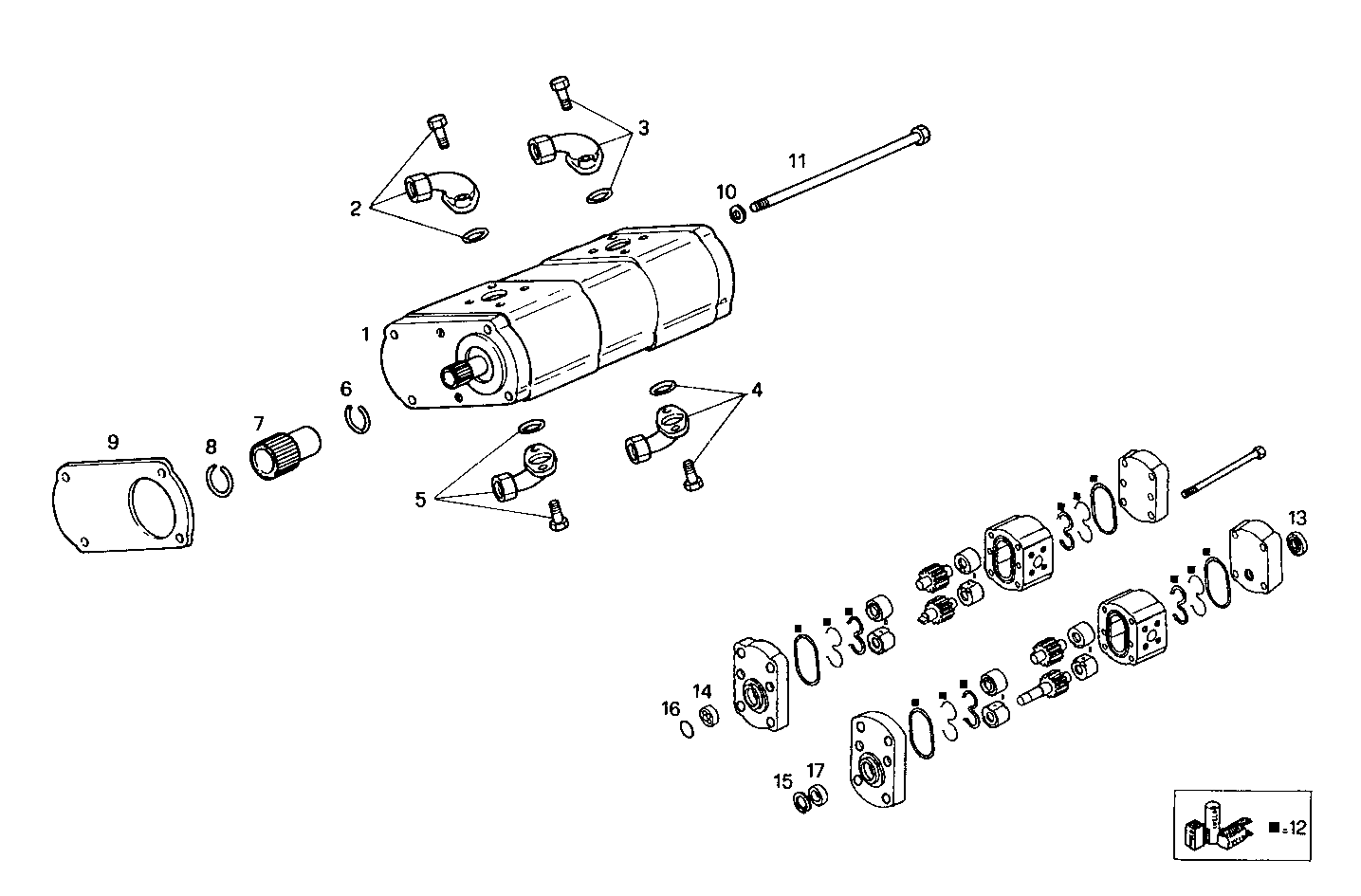

4230.007 POWER STEERING PUMP DRIVE
Item | Part number | Description |
---|---|---|
1 | 98429219 | OIL PUMP-STEERING ASSY |
2 | 98437006 | ELBOW COUPLING |
3 | 98437004 | ELBOW COUPLING |
4 | 98437005 | ELBOW COUPLING |
5 | 98437008 | ELBOW COUPLING |
6 | 17084476 | CIRCLIP Ø14 MM |
7 | 98428771 | SHAFT |
8 | 17084976 | CIRCLIP Ø24 MM |
9 | 98428770 | FLAT ENGINE GASKET |
10 | 17090274 | WASHER Ø10X20 MM |
11 | 15966724 | HEXAGON BOLT M10X1,25X210 MM |
12 | 42481597 | KIT-HYDROST.PUMP |
13 | 1300154 | SHAFT SEAL |
14 | 93163120 | BUSH |
15 | 7984179 | CIRCLIP |
16 | 7984213 | O-RING Ø45 MM SP=2,5 MM |
17 | 93160143 | RADIAL SEAL Ø17X30 MM |
