Catalogue Menu
8060SRC22.10

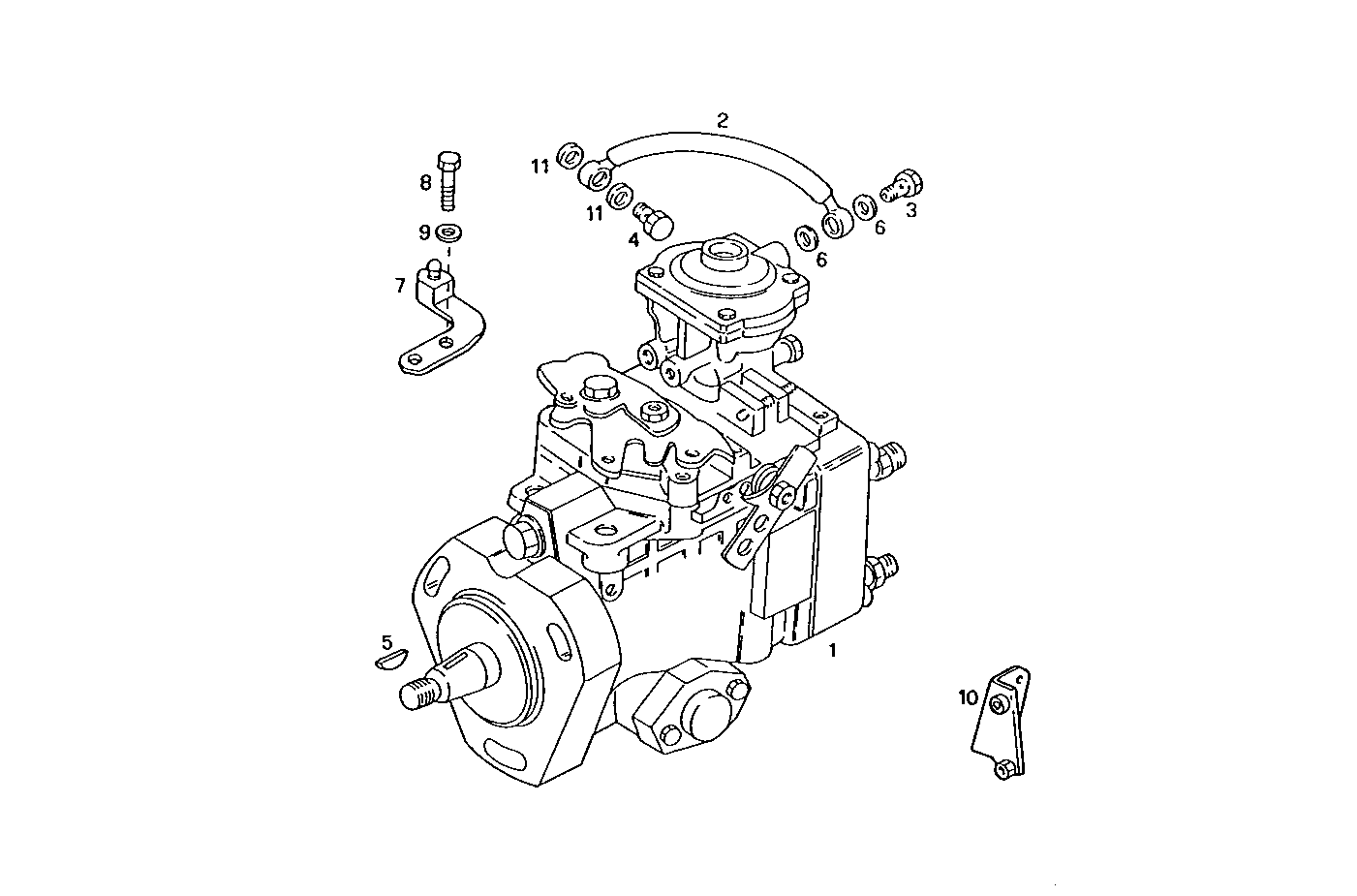

1400.183 INJECTION PUMP ASSY
Item | Part number | Description |
---|---|---|
1 | 98488691 | DISTRIB.INJ.PUMP ASSY |
2 | 99480412 | FUEL LINE |
3 | 4753761 | SCREW CONNECTOR |
4 | 11903817 | SCREW CONNECTOR M10X1,25X19 MM |
5 | 10205820 | KEY 4X6,5 MM |
6 | 10262760 | SEAL GASKET Ø8,2 MM |
7 | 98445678 | LEVER |
8 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
9 | 17088474 | WASHER Ø6X12 MM |
10 | 98481249 | RETAINER |
11 | 10279460 | SEAL GASKET Ø10X16 MM SP=0,5 |
