8060SRC22.10

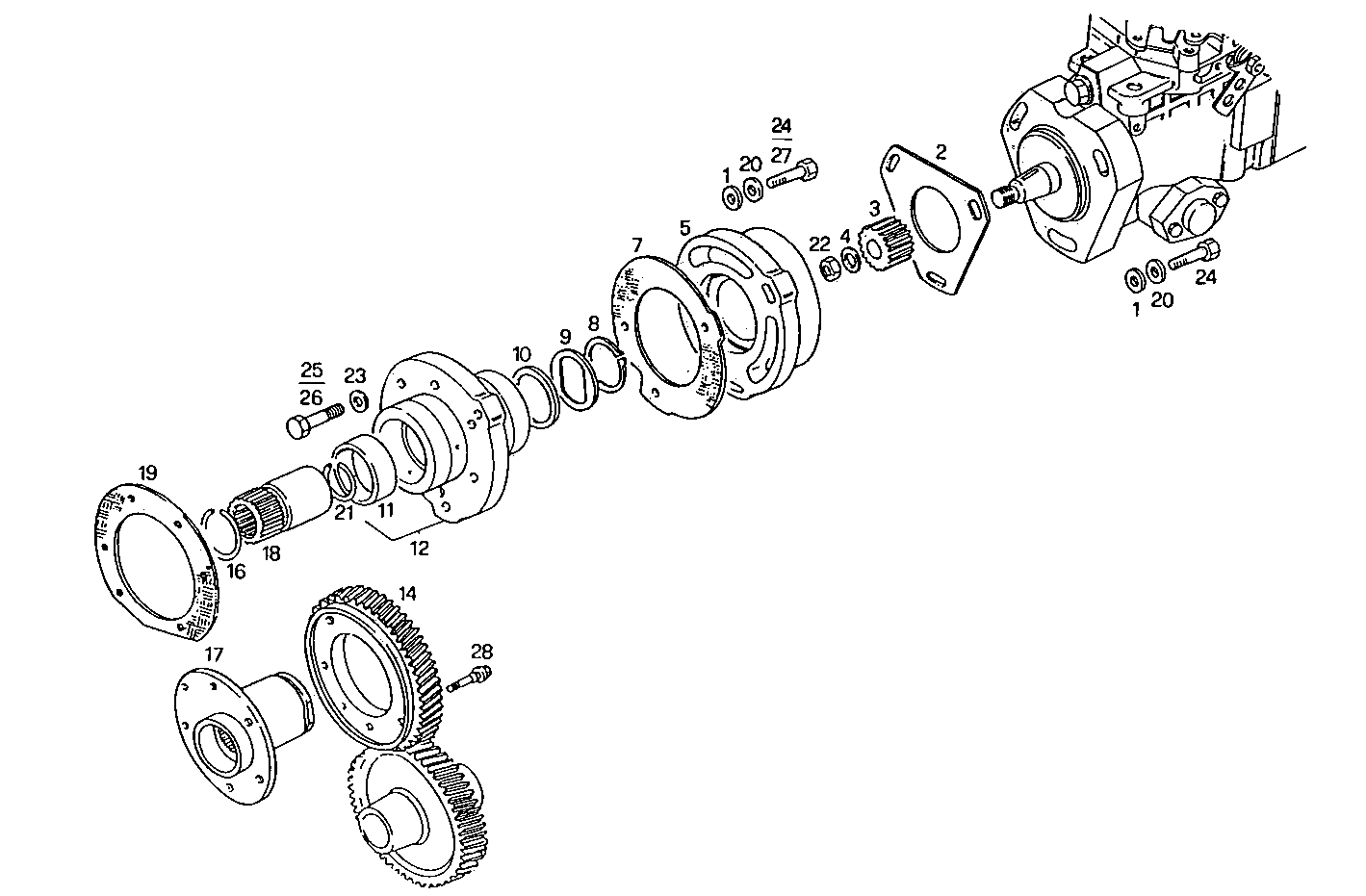

1410.069 INJECTION PUMP DRIVE

Iveco/FPT INJECTION PUMP DRIVE

Item Part number Description
1 12647124 WASHER Ø8X20 MM
2 4851923 FLAT ENGINE GASKET
3 4799342 INJECT.PUMP BUSH 75° 35'
4 4799086 SPRING WASHER
5 4791132 SPACING BAR
7 4851922 FLAT ENGINE GASKET
8 4708213 CIRCLIP
9 4667498 WASHER
10 4809425 WASHER Ø50 MM
11 4769427 BUSH VANDERVELL
12 4769710 SUPPORT ASSY
14 4818557 GEAR
16 4770452 CIRCLIP
17 97496177 INJECT.PUMP SPIND [from 737249]
18 4849361 INJECT.PUMP BUSH
19 4849996 FLAT ENGINE GASKET
20 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
21 17085376 CIRCLIP Ø30 MM
22 17038821 HEXAGON NUT M14
23 17094904 WASHER Ø8X16X1,6 MM
24 16605734 HEXAGON BOLT M8X30 MM
25 16605624 HEXAGON BOLT M8X25 MM (8.8)
26 16043324 HEXAGON BOLT M8X18 MM
27 16606024 SCREW M8X45 MM
28 98401723 HEXAGON BOLT M8X1,25X12 MM
