8060SRC22.11

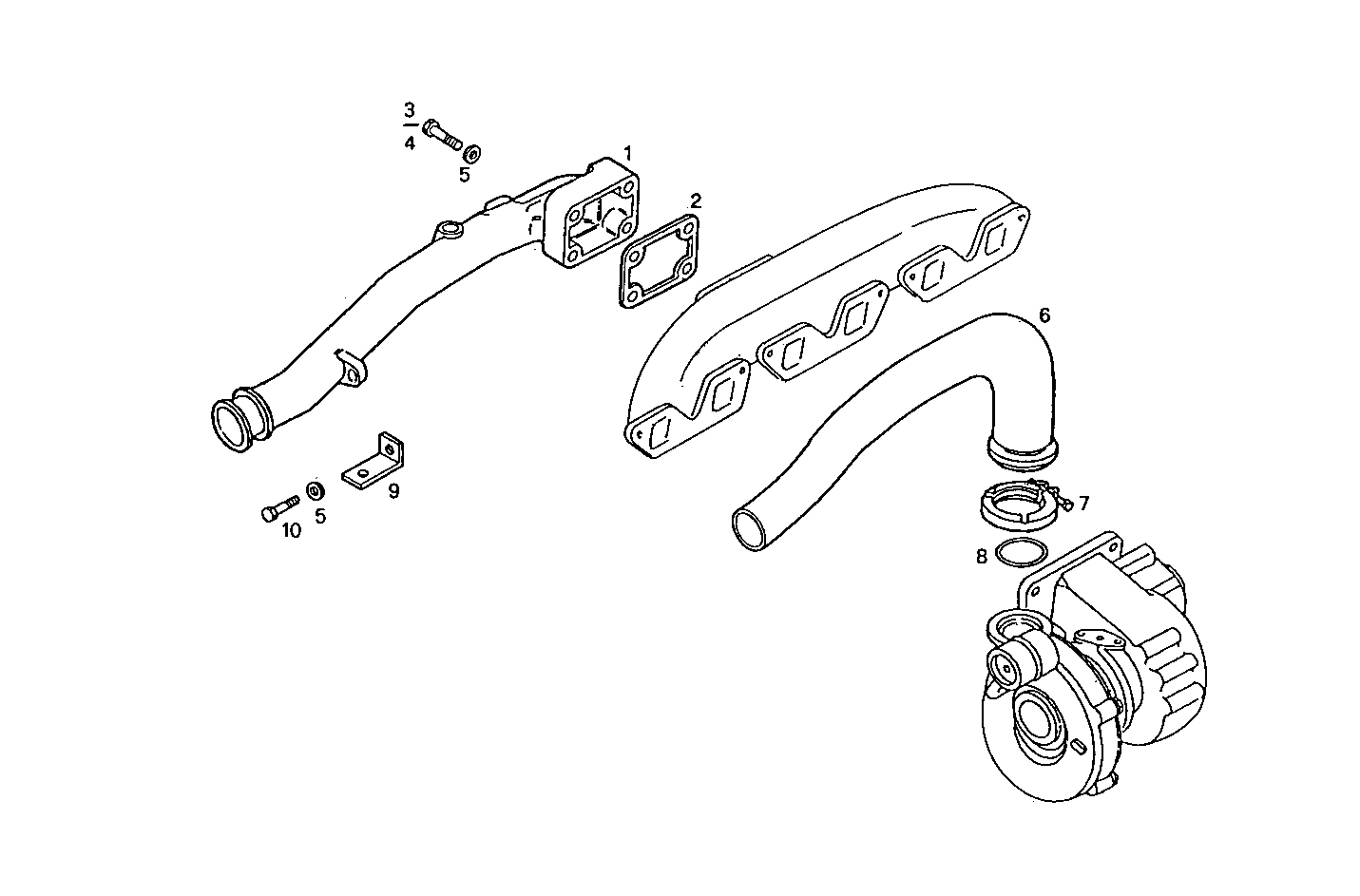

2420.174/01 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 99436521 | SUCTION LINE |
| 2 | 99436925 | FLAT ENGINE GASKET Ø50 MM |
| 3 | 11343724 | HEXAGON BOLT M10X70 MM |
| 4 | 15971824 | SCREW M10X1,25X100 |
| 5 | 17095125 | WASHER |
| 6 | 4850068 | AIR PIPE/DUCT |
| 7 | 4843862 | CLIP Ø50/70 MM |
| 8 | 17283481 | O-RING Ø42,5 MM SP=2,6 MM |
| 9 | 4849425 | RETAINER |
| 10 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
