8060SRC22.11

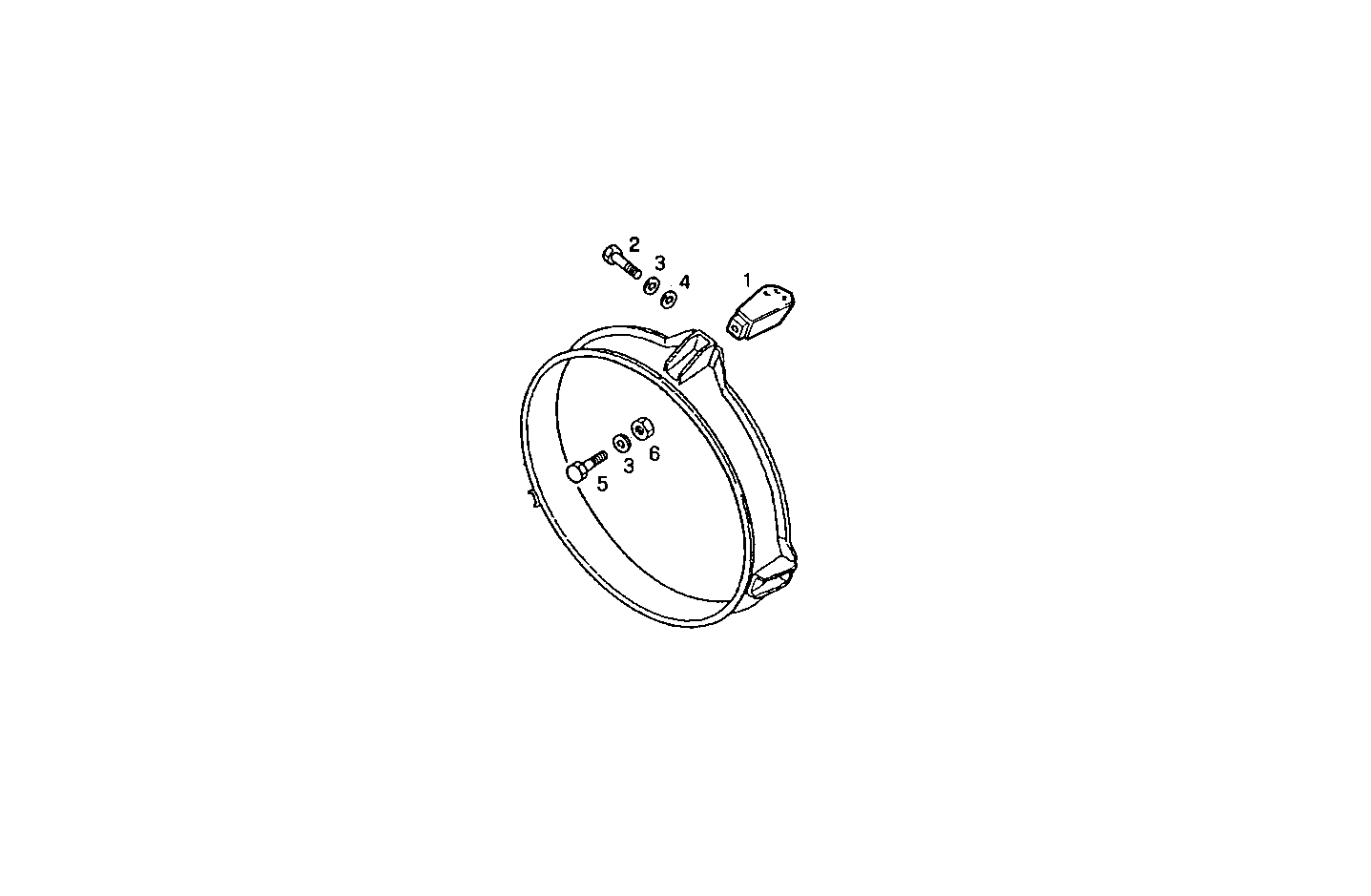

3230.021 FAN
| Item | Part number | Description |
|---|---|---|
| 1 | 98425700 | RETAINER |
| 2 | 98430503 | HEXAGON BOLT |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 17095104 | WASHER Ø10X21X2 MM |
| 5 | 11343821 | HEXAGON BOLT M10X1,25X50 MM |
| 6 | 17038221 | HEXAGON NUT M10 |
