8060SRC22.11

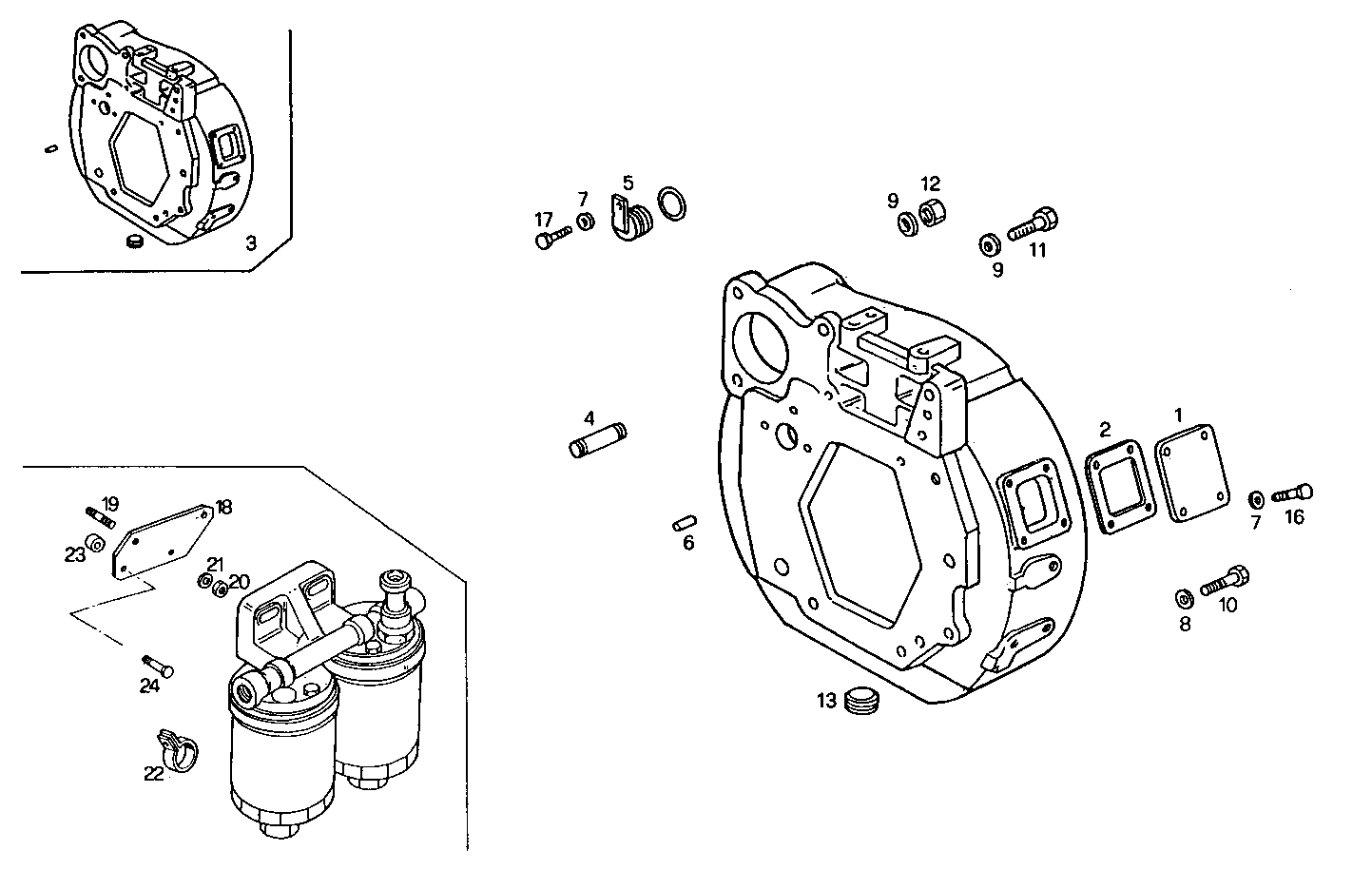

A03030013 FLYWHEEL HOUSING SAE 3 - with PICK-UP seat

Iveco/FPT FLYWHEEL HOUSING SAE 3

Item Part number Description
1 98417985 COVER
2 98417986 FLAT ENGINE GASKET
3 4806862 FLYWHEEL HOUSING ASSY
4 16735724 STUD M14X20X55 [from ...]
5 4718740 PLUG
6 17275510 DOWEL PIN Ø10 MM
7 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
8 17090174 SPRING WASHER Ø10X20 MM
9 17091974 SPRING WASHER Ø14X32 MM SP=3,4 MM
10 11306921 SCREW M10X1,25X30
11 16612324 HEXAGON BOLT M14X35 MM
12 17038721 NUT M14X2 [from ...]
13 16998011 PLUG M35X1,5
15 17289281 O-RING Ø34,5 MM SP=3,53 MM
16 16605524 HEXAGON BOLT M8X20 MM
17 16605424 SCREW M8X16 MM (8.8)
18 8014733 RETAINER
19 16746624 STUD M8X20 MM (8.8)
20 17037931 HEXAGON NUT M8X1,25
22 17316390 CLIP
23 8109399 SPACING BAR
24 16607924 HEXAGON BOLT M10X1,5X40 MM
